Installation Procedure

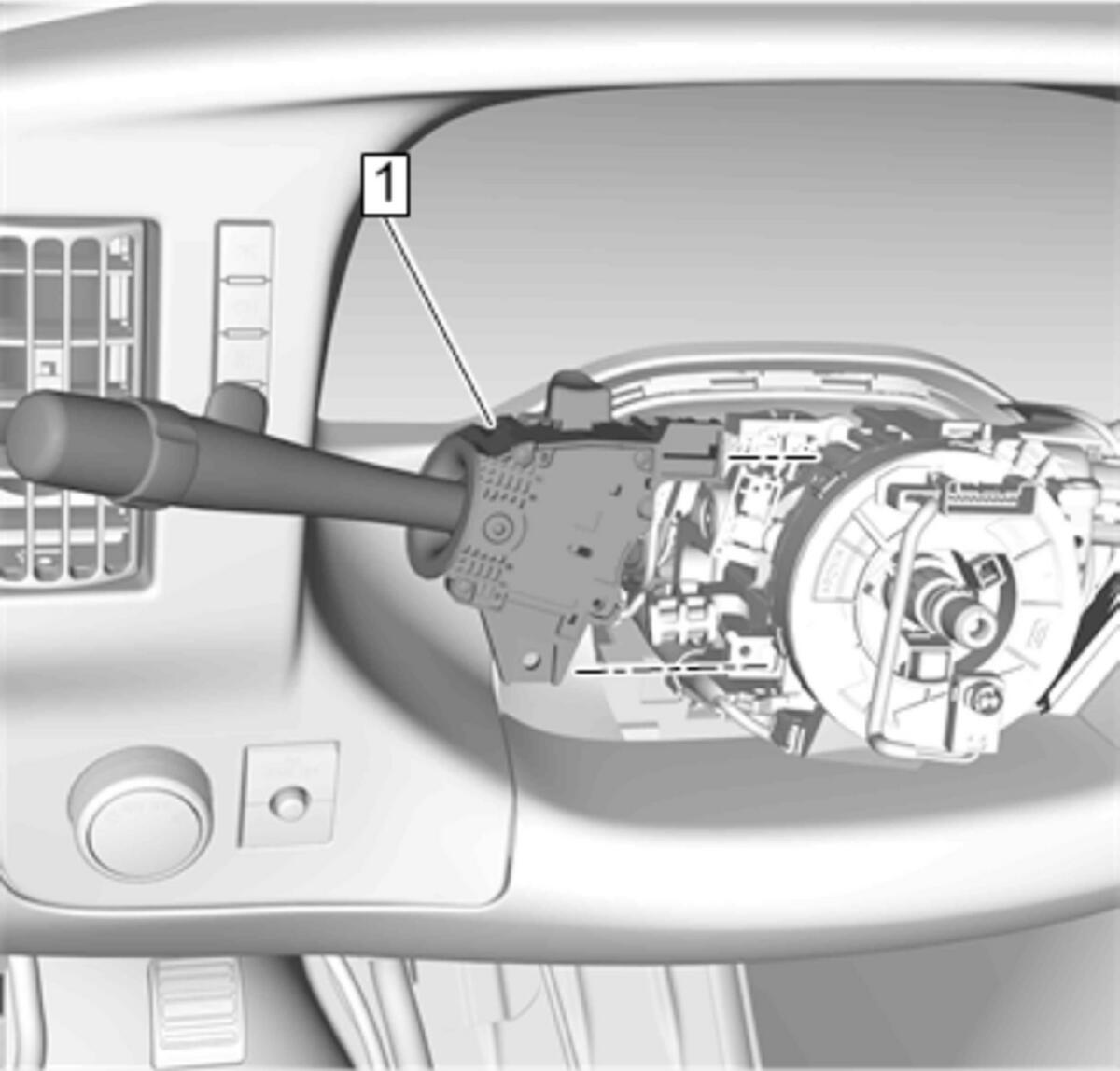

  1. GM4900291Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Multifunction Switch (1) - Install

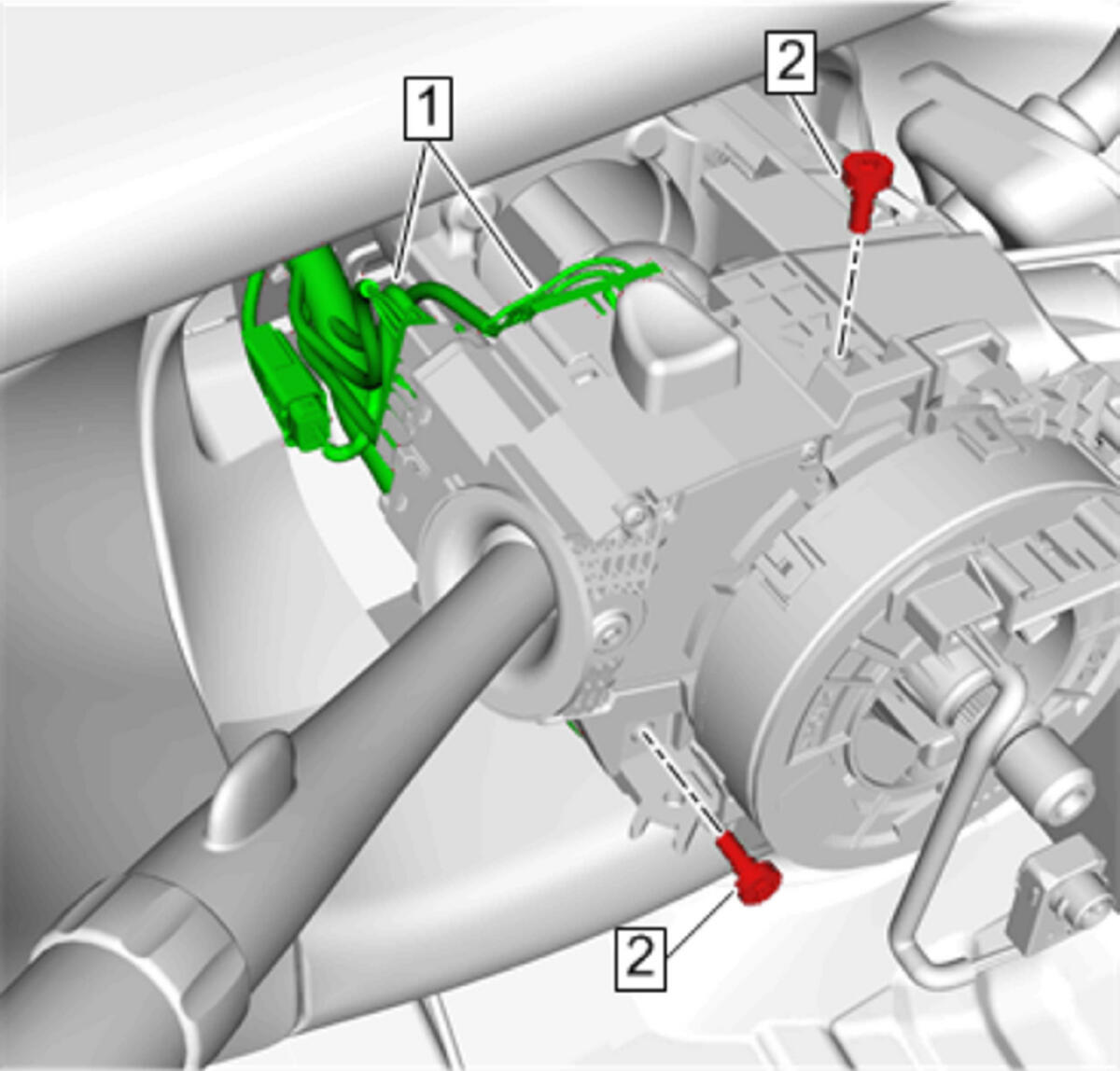

  2. GM4900290Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Turn Signal Multifunction Switch Bolt (2) - Install and tighten [2x] 3 N.m (27 lb in).

  3. Connect all electrical connectors. (1)
  4. Steering Column Trim Cover - Install - Steering Column Trim Cover Replacement
  5. Steering Wheel - Install - Steering Wheel Replacement
