Installation Procedure

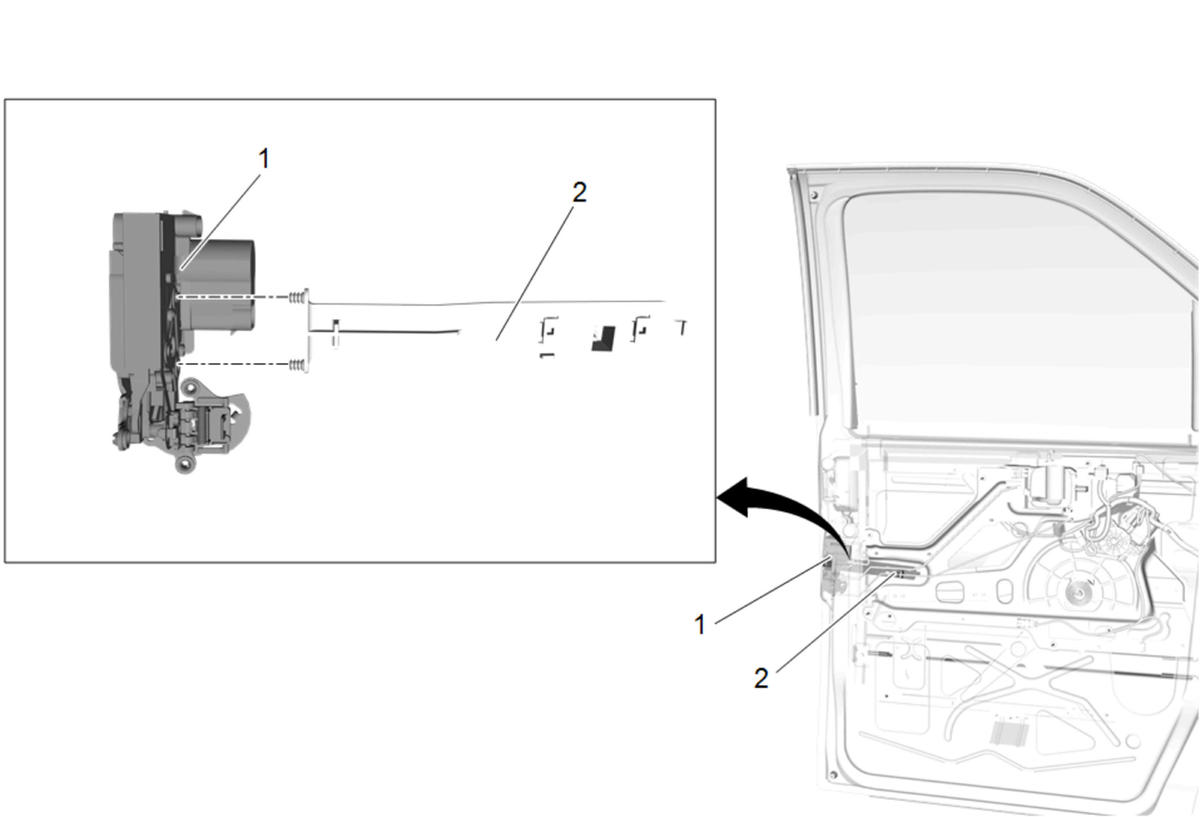

  1. GM5193260Courtesy of GENERAL MOTORS COMPANY

    Install the front side door latch (1) to the front side door window module support bracket (2).

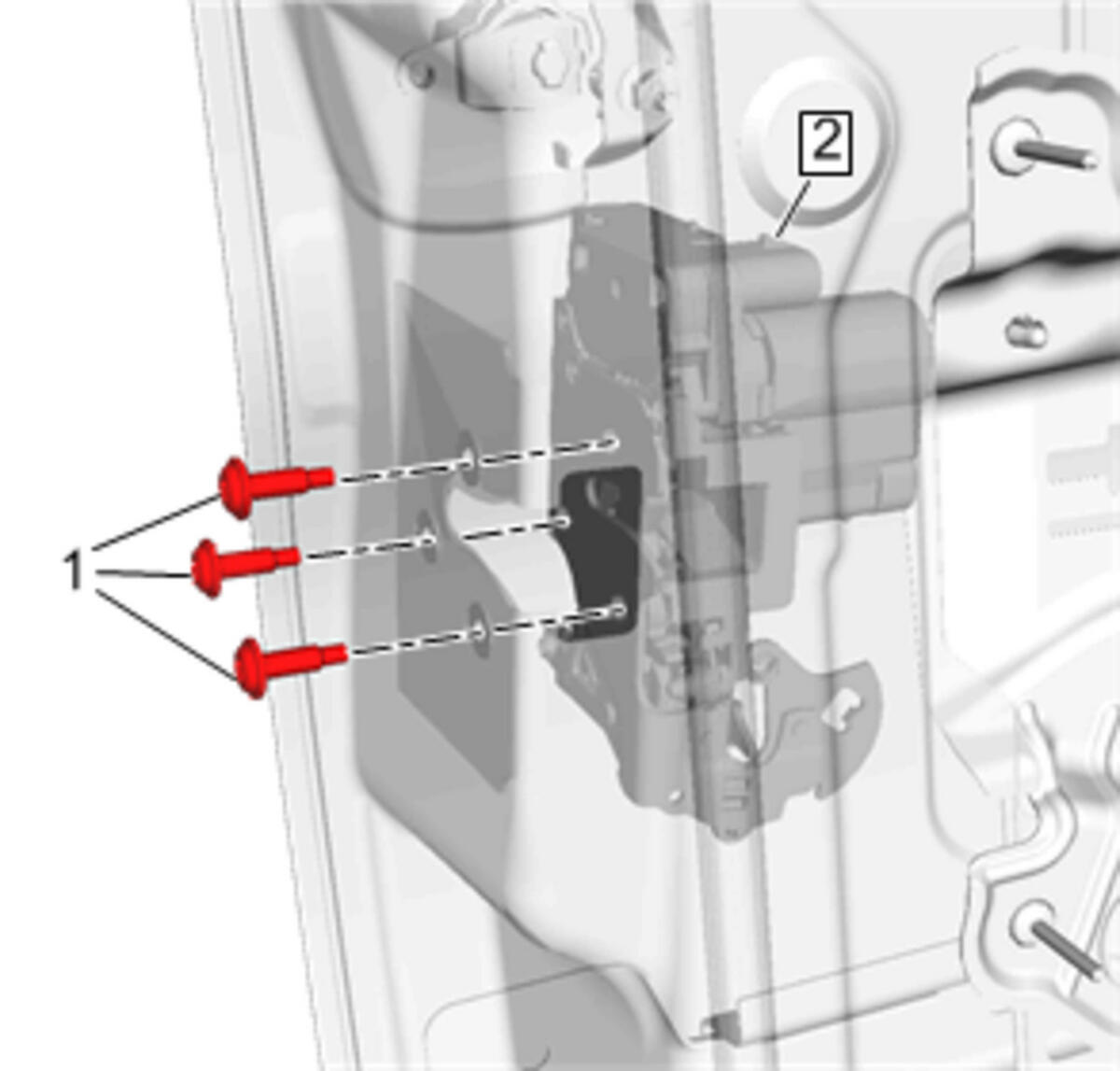

  2. GM4850154Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Latch (2) - Install

    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Side Door Latch Bolt (1) - Install and tighten 10 N.m (88 lb in)

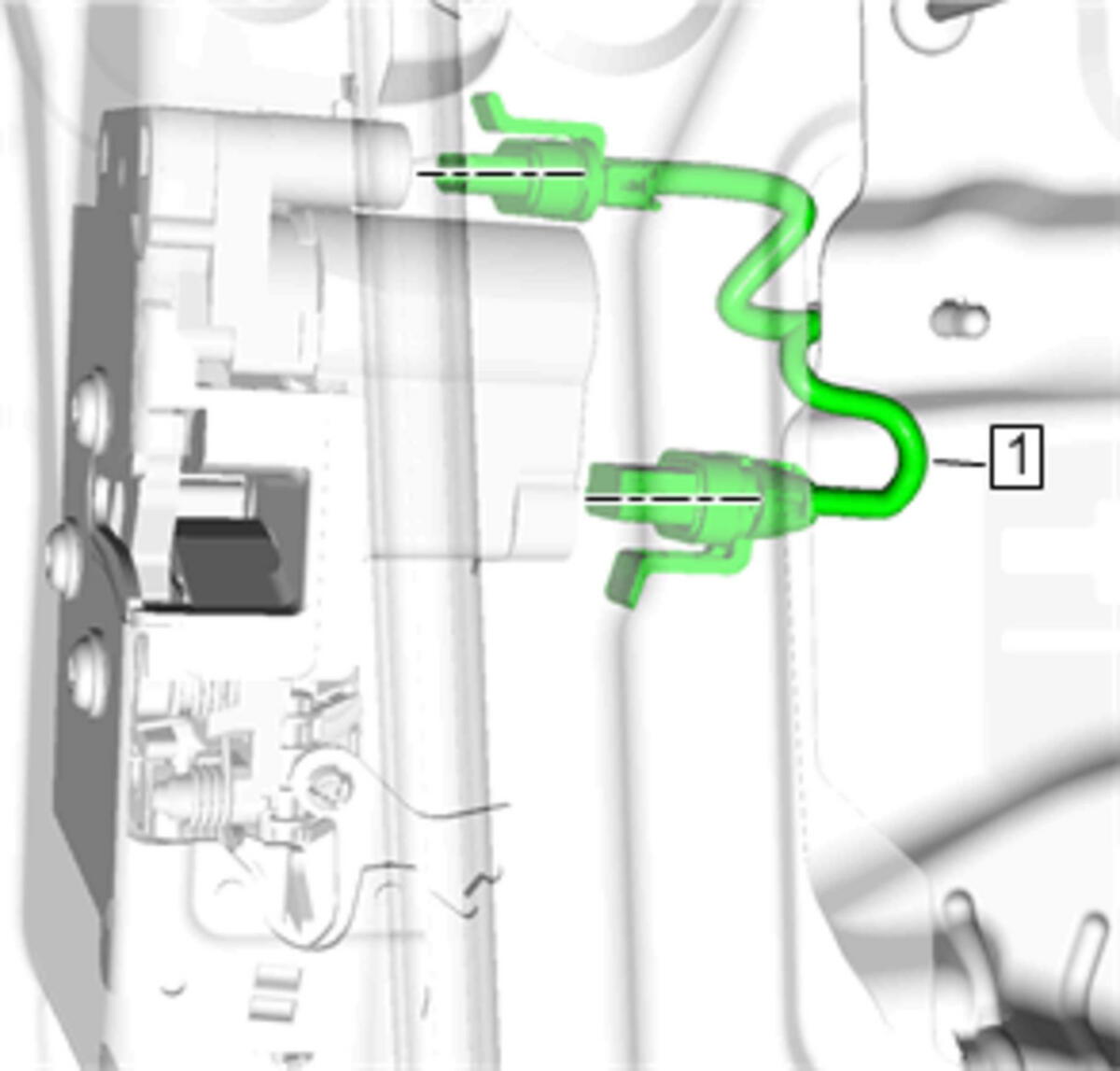

  4. GM4850153Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Wiring Harness (1) - Install

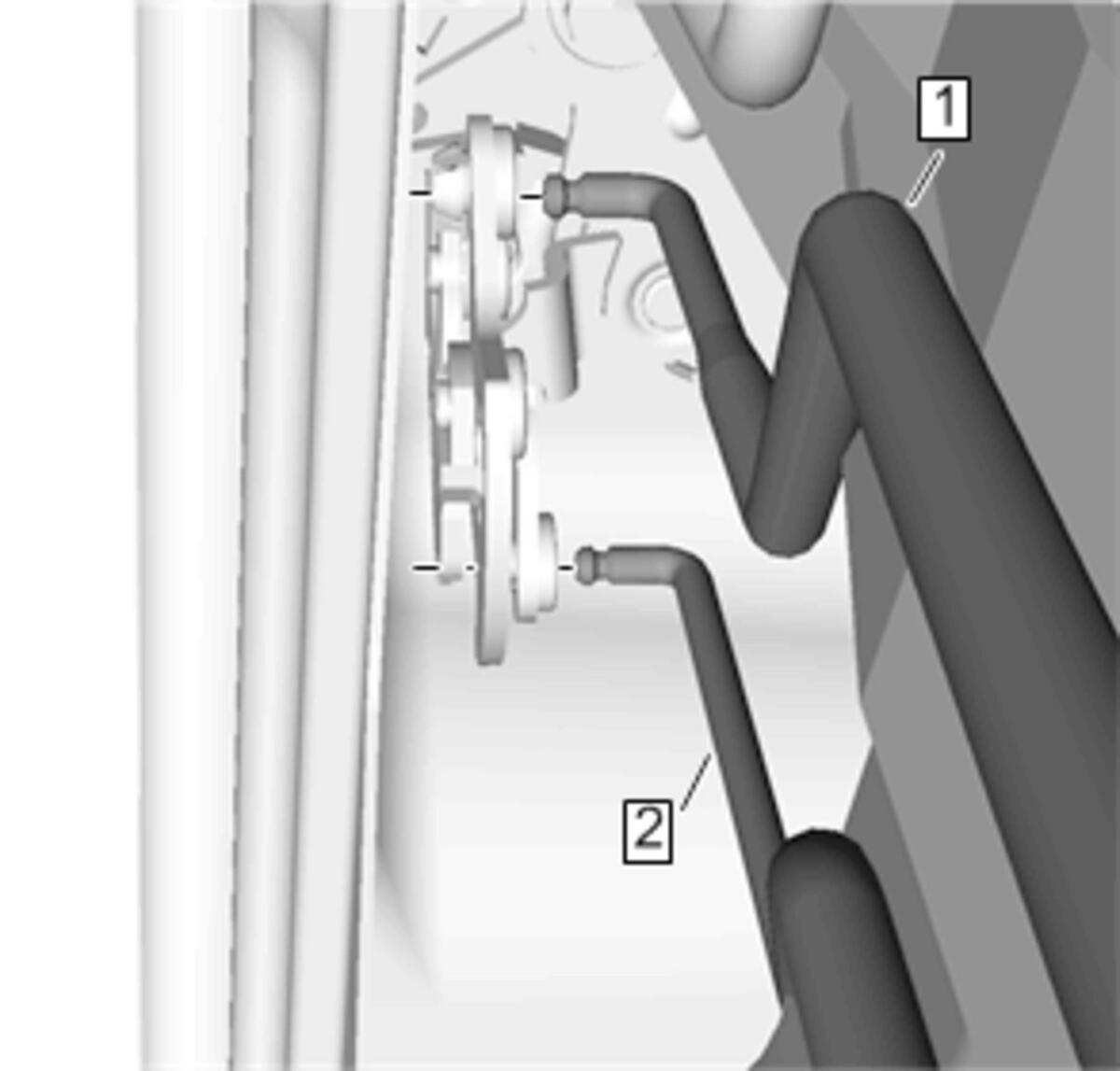

  5. GM4850152Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Inside Handle Rod (1) - Install

  6. Front Side Door Lock Rod (2) - Install

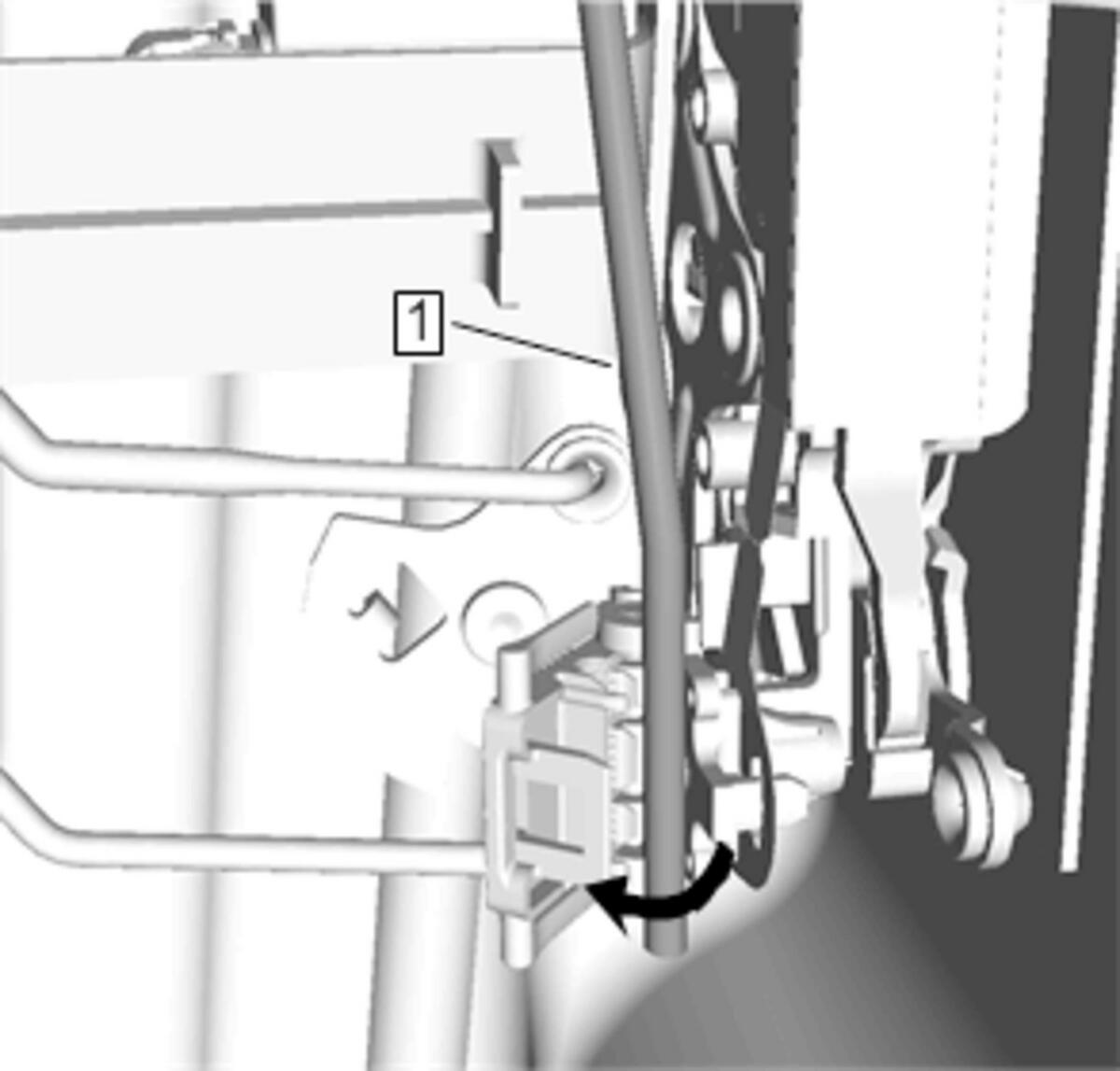

  7. GM4850148Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Outside Handle Rod (1) - Install

  8. Front Side Door Lock Cylinder Rod - Install
  9. Front Side Door Window Channel Replacement - Lower Rear - Install - Front Side Door Window Channel Replacement - Lower Rear
