Fuel Pump Power Control Module Replacement (Chassis Cab Front Tank)

Courtesy of GENERAL MOTORS COMPANY

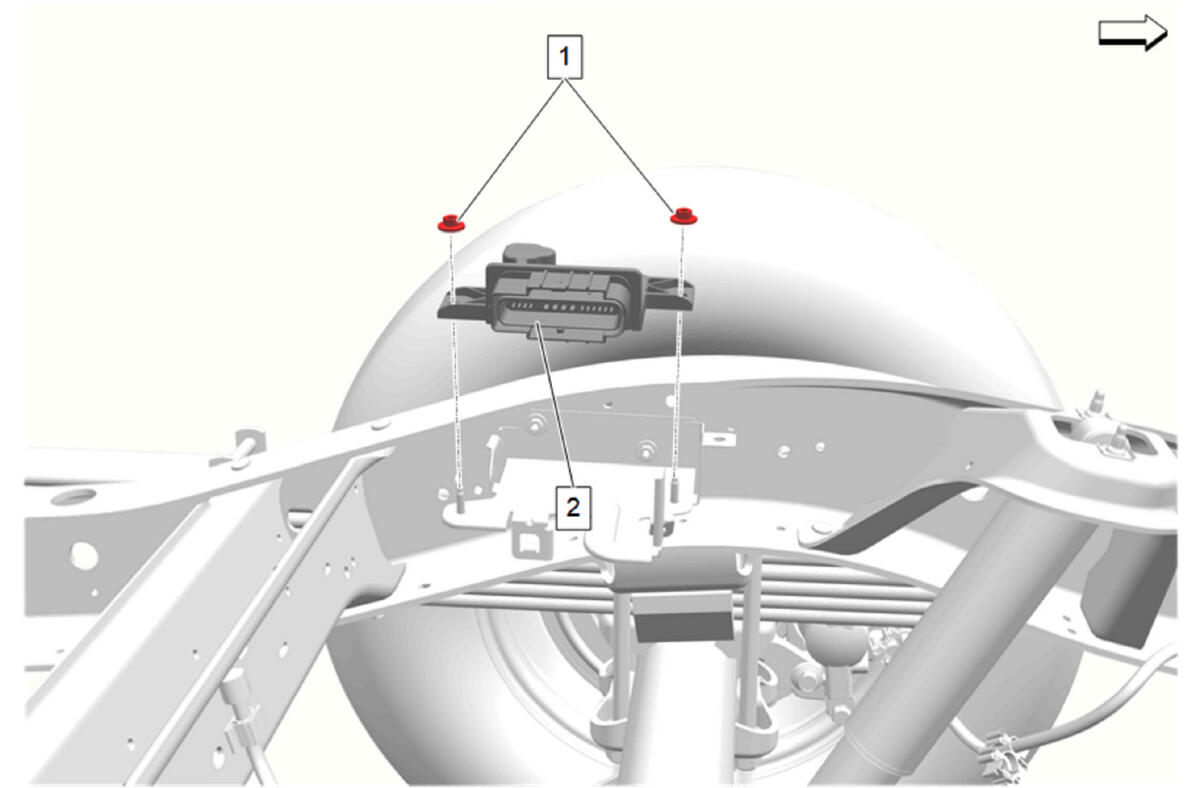

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle .
1	Fuel Pump Power Control Module Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	2 - Fuel Pump Power Control Module Procedure Disconnect the electrical connector. If replacing the chassis control module program the module. Control Module References

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle .

Fuel Pump Power Control Module Nut [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

2 - Fuel Pump Power Control Module

Procedure

Disconnect the electrical connector.
If replacing the chassis control module program the module. Control Module References
