Installation Procedure

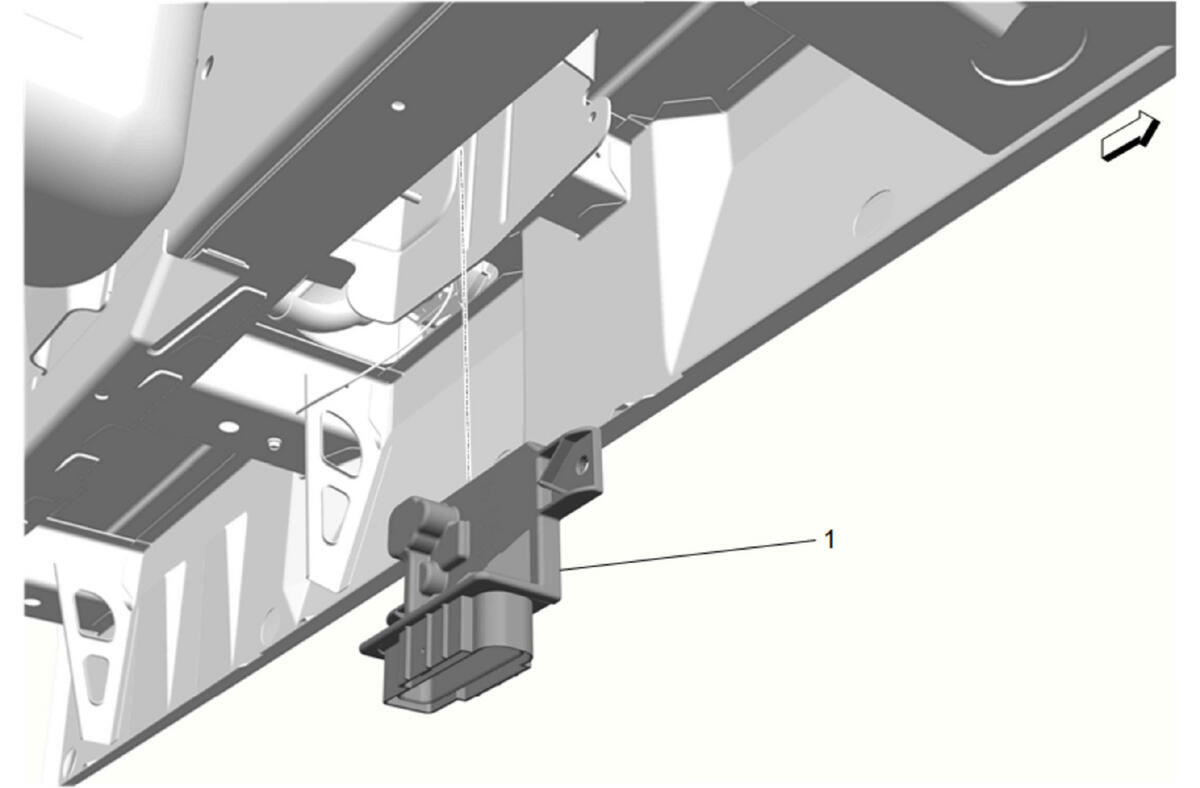

  1. GM5659980Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module (1) - Install

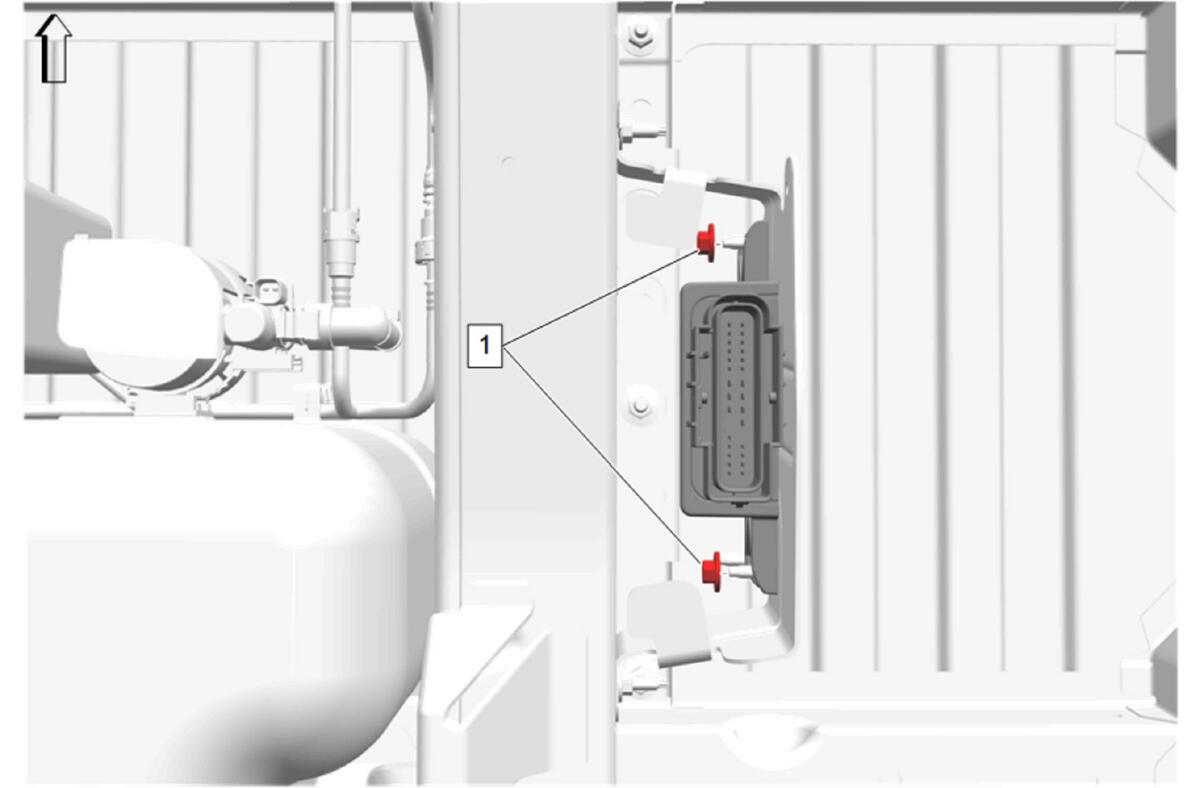

  2. GM5659978Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Fuel Pump Power Control Module Nut (1) - Install and tighten [2x] 9 N.m (80 lb in)

  3. Connect the fuel pump power control module electrical connector.
  4. Lower the vehicle.
  5. If replacing, perform the fuel pump driver control module configuration. Fuel Pump Driver Control Module Configuration
