Front Seat Adjuster Memory Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

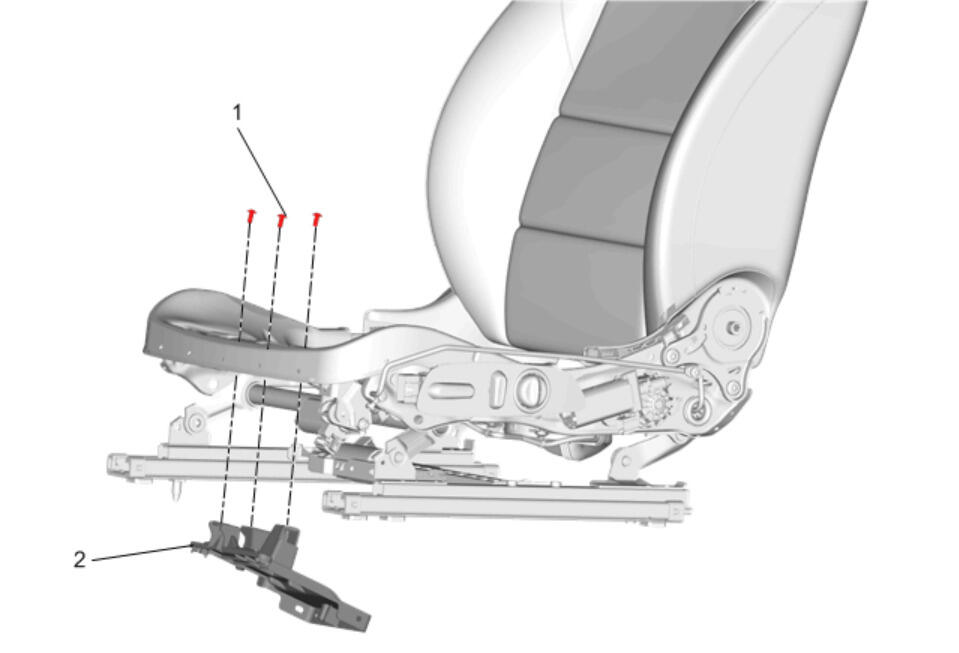

Callout	Component Name
Preliminary Procedures Front Seat Cushion Cover and Pad Replacement Front Seat Bolster Memory Module Replacement
1	Front Seat Adjuster Memory Module Bracket Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Adjuster Memory Module Bracket

Callout

Component Name

Preliminary Procedures

Front Seat Adjuster Memory Module Bracket Fastener [3x]

CAUTION:

Tighten

2.5 N.m (22 lb in)

Front Seat Adjuster Memory Module Bracket
