Installation Procedure

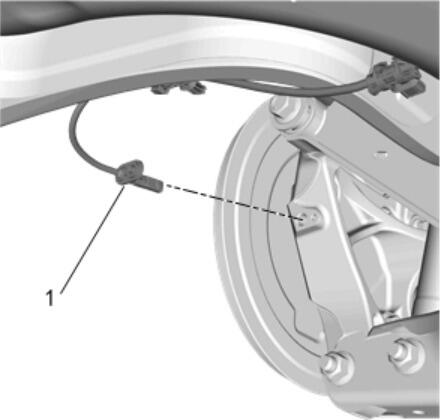

  1. GM4214187Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor (1) - Install

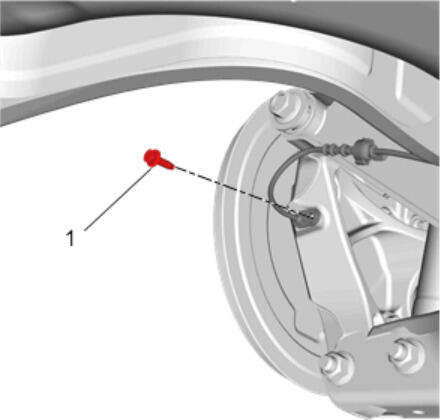

  2. GM4214186Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Wheel Speed Sensor Bolt (1) - Install and tighten 9 N.m (80 lb in)

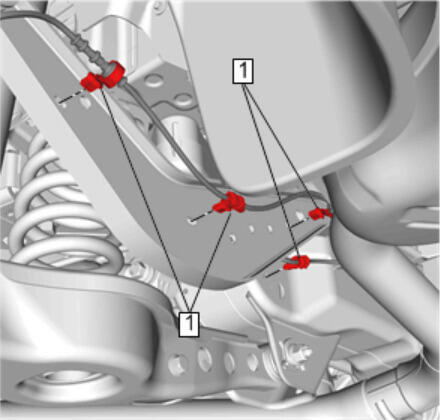

  3. GM4214185Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Upper Control Arm - Secure [4x]

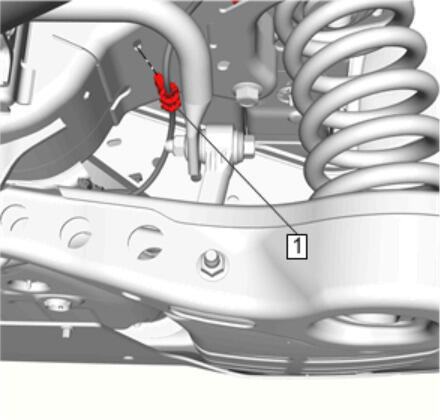

  4. GM4214181Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Rear Suspension Cradle - Secure

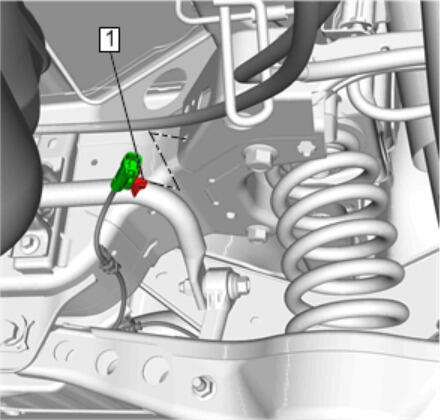

  5. GM4214179Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Rear Suspension Cradle - Secure

  6. Wheel Speed Sensor Electrical Connector - Connect
  7. Verify the repair is complete. Diagnostic Repair Verification
