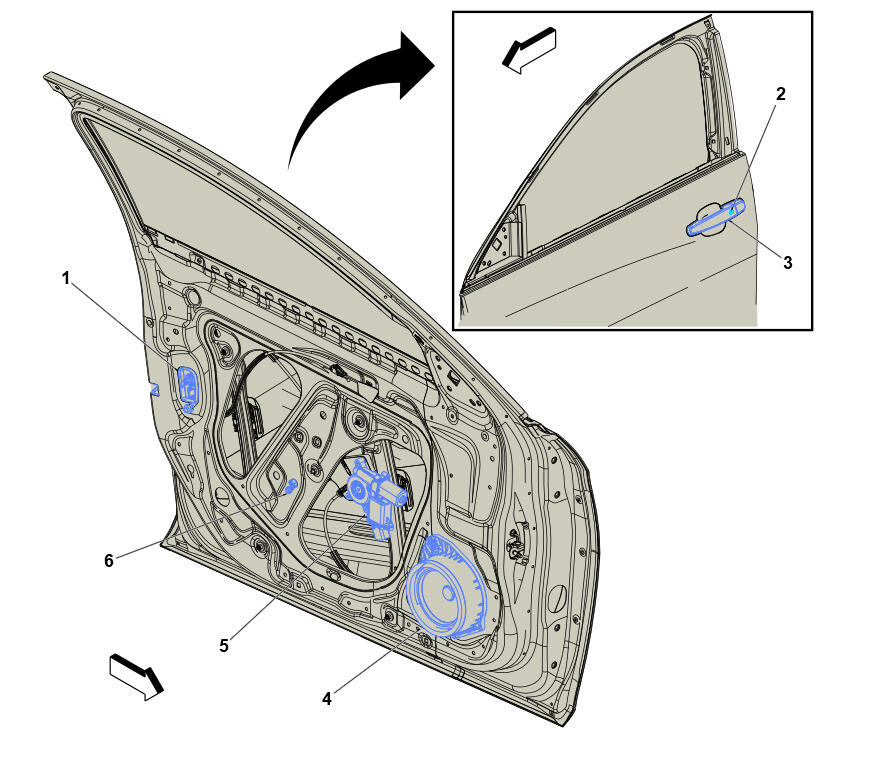

Driver Door Components
Driver Door Components
| Component Name | Callout |
|---|---|
| A23D Door Latch Assembly - Driver A23D Door Latch Assembly - Driver | 1 |
| B27D Door Handle Switch - Driver Exterior | 2 |
| A24D Door Handle Assembly - Driver Exterior A24D Door Handle Assembly - Driver Exterior | 3 |
| P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door (UQA) , or P19AG Speaker - Left Front Door (UQF) | 4 |
| M74D Window Motor - Driver M74D Window Motor - Driver (AEC) , or M74D Window Motor - Driver (AXG) | 5 |
| B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front | 6 |
