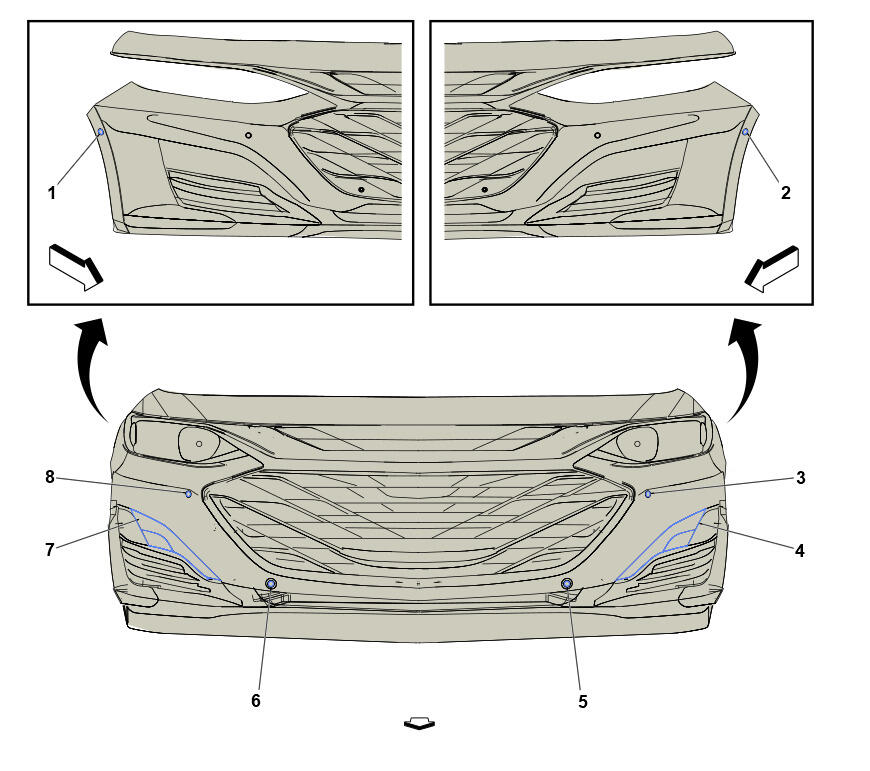

Front of Vehicle Components
Front of Vehicle Components
| Component Name | Callout |
|---|---|
| B306L Parking Assist Sensor - Side Right Front (UFQ) B306L Parking Assist Sensor - Side Right Front | 1 |
| B306K Parking Assist Sensor - Side Left Front (UFQ) B306K Parking Assist Sensor - Side Left Front | 2 |
| B306A Parking Assist Sensor - Front Left Outer (UD5/UFQ) B306A Parking Assist Sensor - Front Left Outer | 3 |
| E4AL Park/Daytime Running Lamp - Left Lower | 4 |
| B306B Parking Assist Sensor - Front Left Middle (UD5/UFQ) B306B Parking Assist Sensor - Front Left Middle | 5 |
| B306C Parking Assist Sensor - Front Right Middle (UD5/UFQ) B306C Parking Assist Sensor - Front Right Middle | 6 |
| E4AM Park/Daytime Running Lamp - Right Lower | 7 |
| B306D Parking Assist Sensor - Front Right Outer (UD5/UFQ) B306D Parking Assist Sensor - Front Right Outer | 8 |
