Fuel Pump Driver Control Module

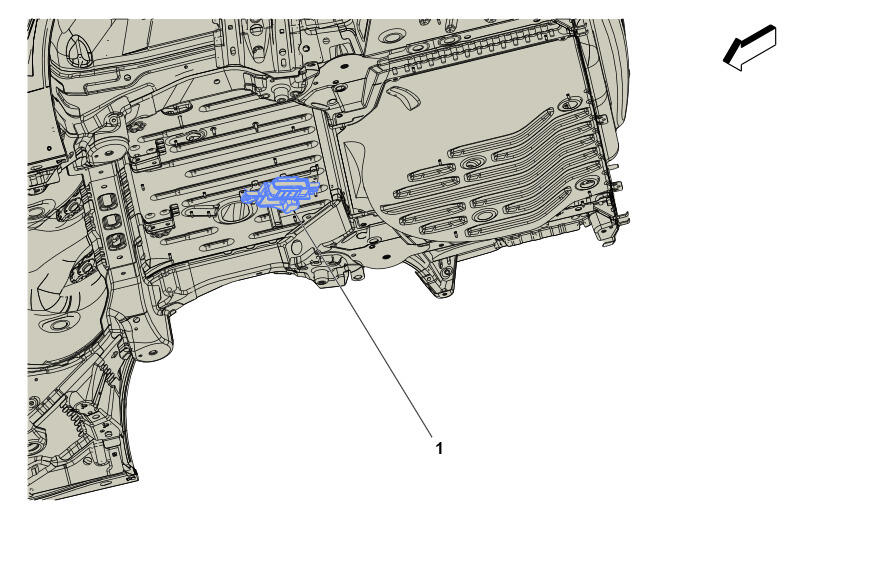

GM4959027Courtesy of GENERAL MOTORS COMPANY
Fuel Pump Driver Control Module

Harness Name Callout
K111 Fuel Pump Driver Control Module K111 Fuel Pump Driver Control Module ( ) 1
