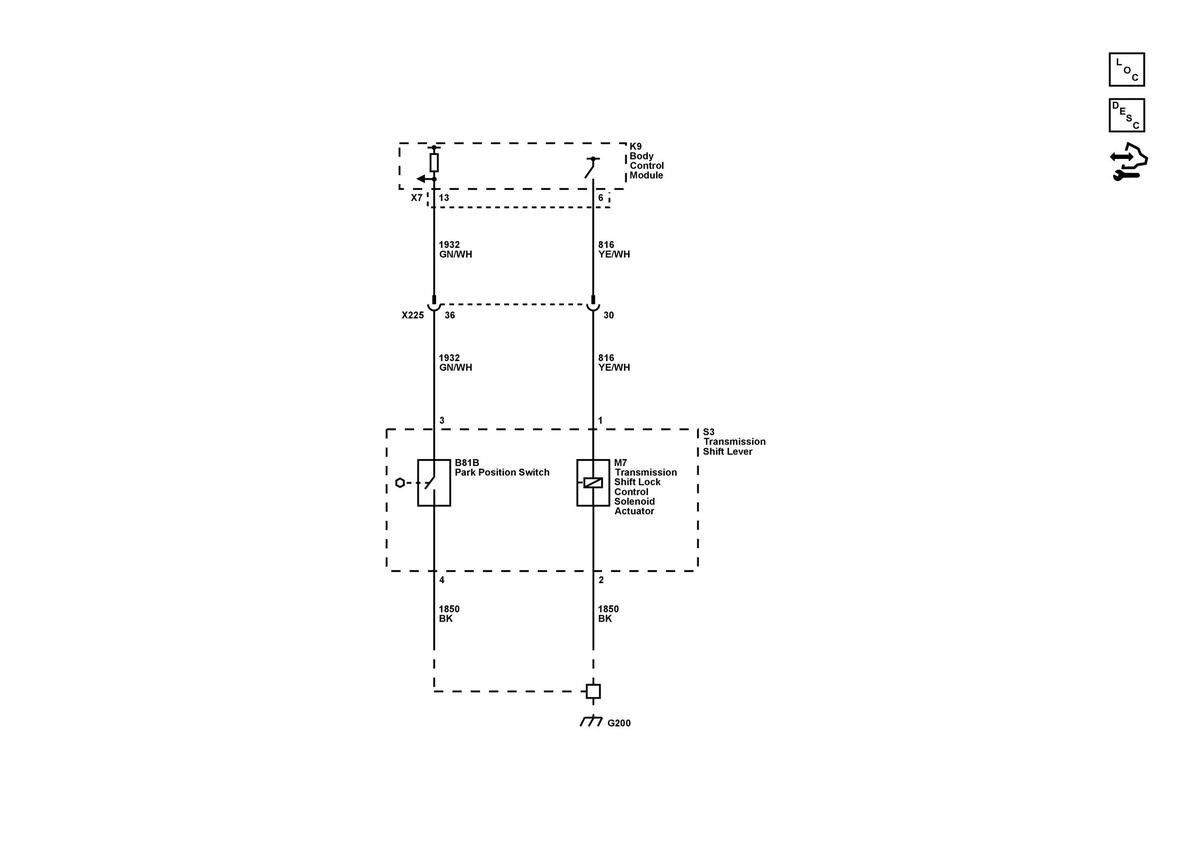

Home › Chevrolet › 2021 › Silverado 1500 SSV, RWD, Gas/Ethanol › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control
