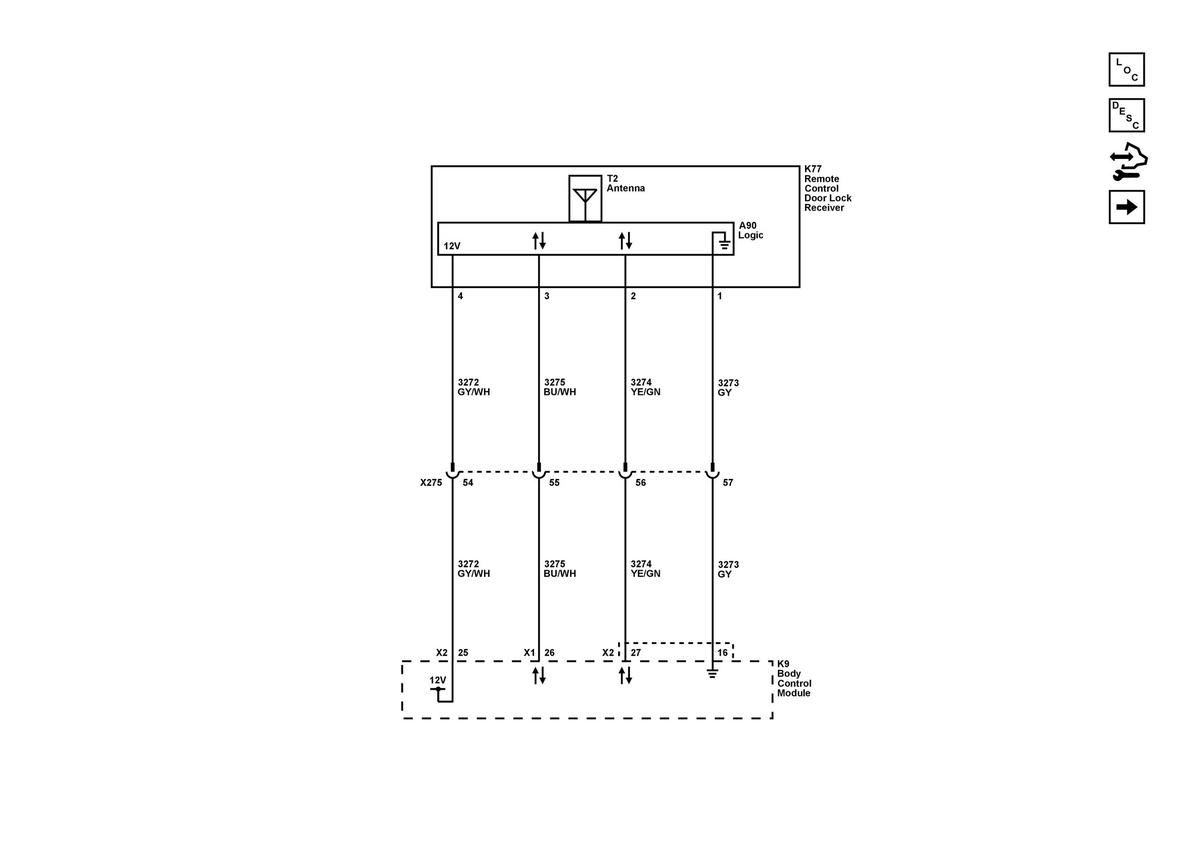

Home › Chevrolet › 2021 › Silverado 1500 SSV, RWD, Gas › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
