Ignition Coil Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name

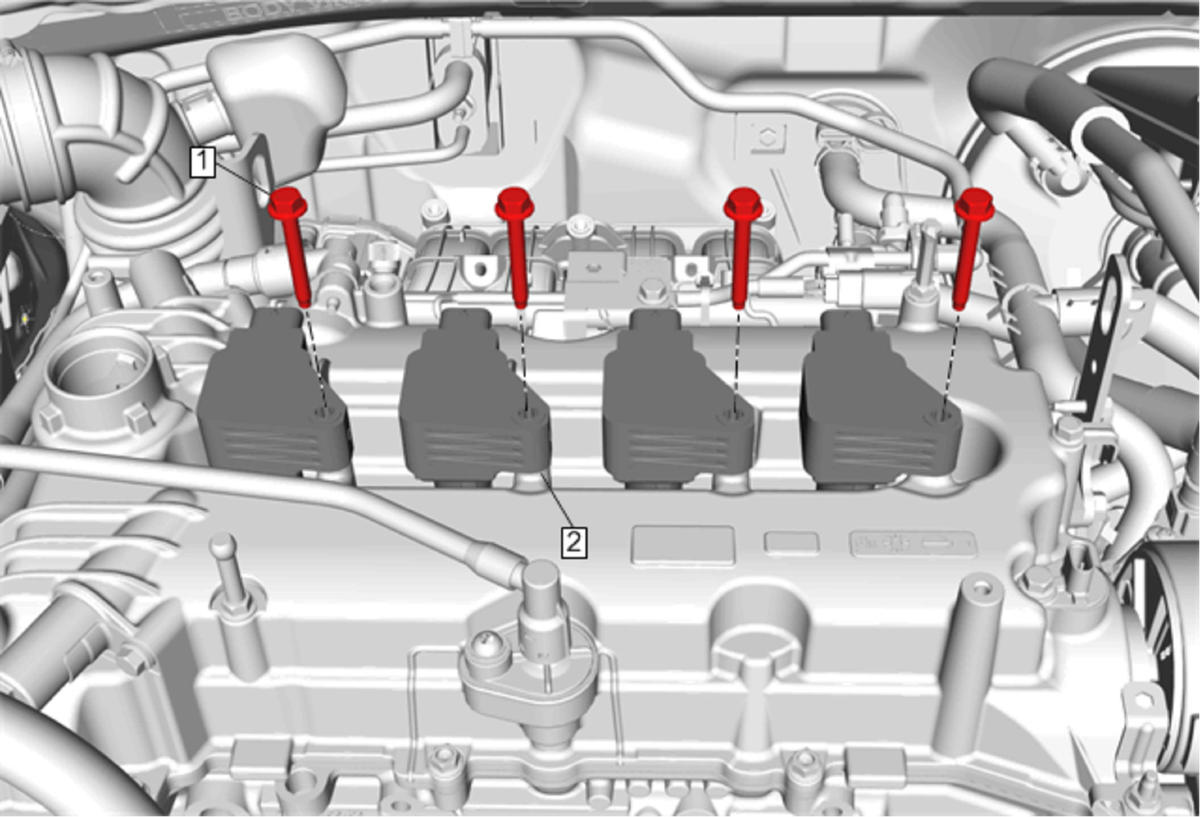

Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LV7) . Disconnect the 4 ignition coil connectors.
1	Ignition Coil Cover Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Remove the ignition coil bolts (1). Tighten 10 N.m (89 lb in)
2	Ignition Coil (Qty: 4) Procedure Transfer parts as necessary.

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LV7) .
Disconnect the 4 ignition coil connectors.

Ignition Coil Cover Bolt (Qty: 4)

CAUTION:

Procedure
Remove the ignition coil bolts (1).
Tighten
10 N.m (89 lb in)

Ignition Coil (Qty: 4)
Procedure
Transfer parts as necessary.
