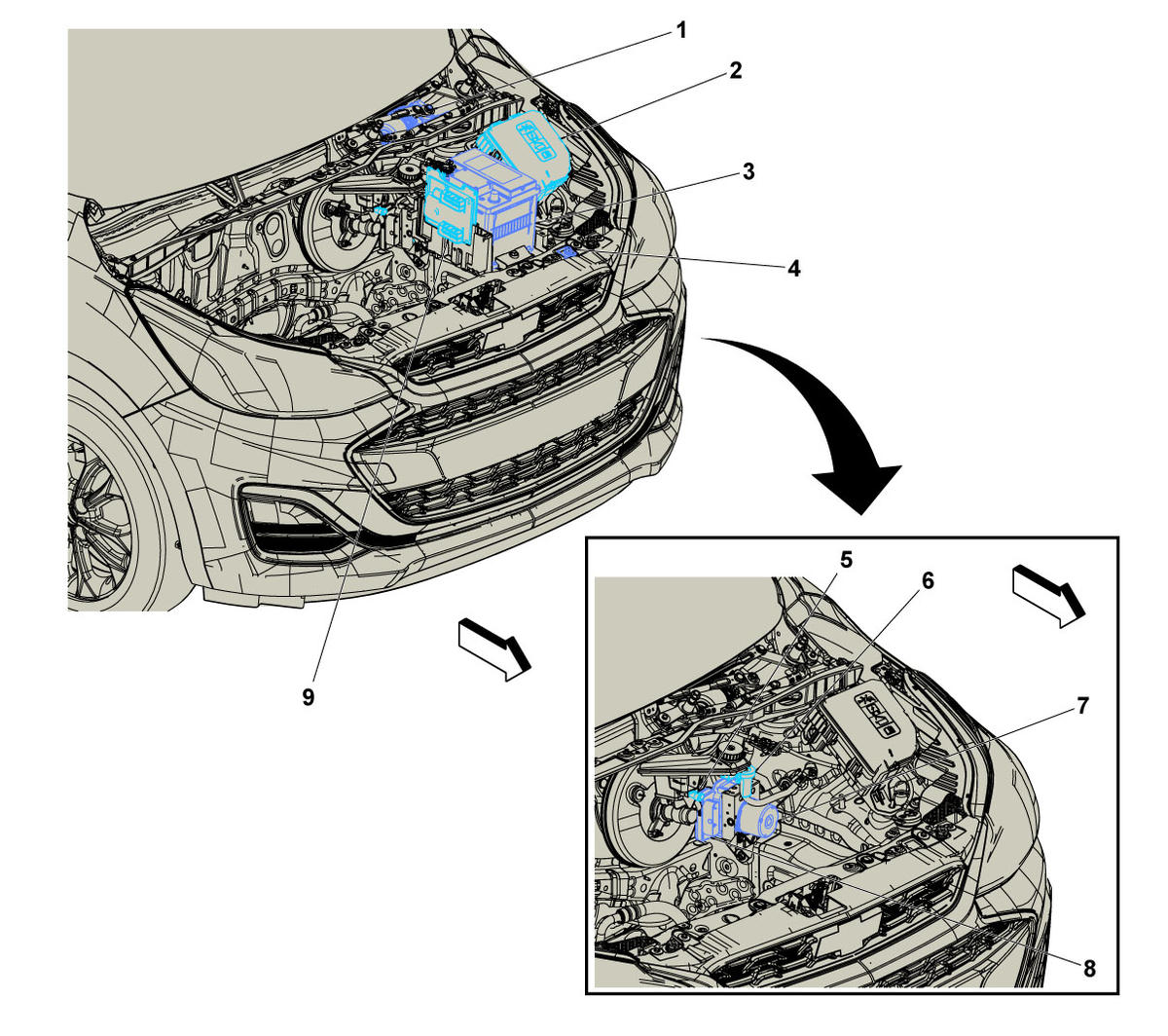

Left Side of the Engine Compartment Components (Left Hand Drive)
Left Side of the Engine Compartment Components (Left Hand Drive)
| Component Name | Callout |
|---|---|
| M75 Windshield Wiper Motor M75 Windshield Wiper Motor | 1 |
| X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X4 | 2 |
| C1 Battery C1 Battery | 3 |
| B55 Engine Hood Switch B55 Engine Hood Switch | 4 |
| B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch | 5 |
| B18 Battery Current Sensor B18 Battery Current Sensor | 6 |
| Q5 Brake Pressure Modulator | 7 |
| K17 Electronic Brake Control Module K17 Electronic Brake Control Module | 8 |
| K20 Engine Control Module K20 Engine Control Module X1 , or K20 Engine Control Module X2 | 9 |
