Installation Procedure

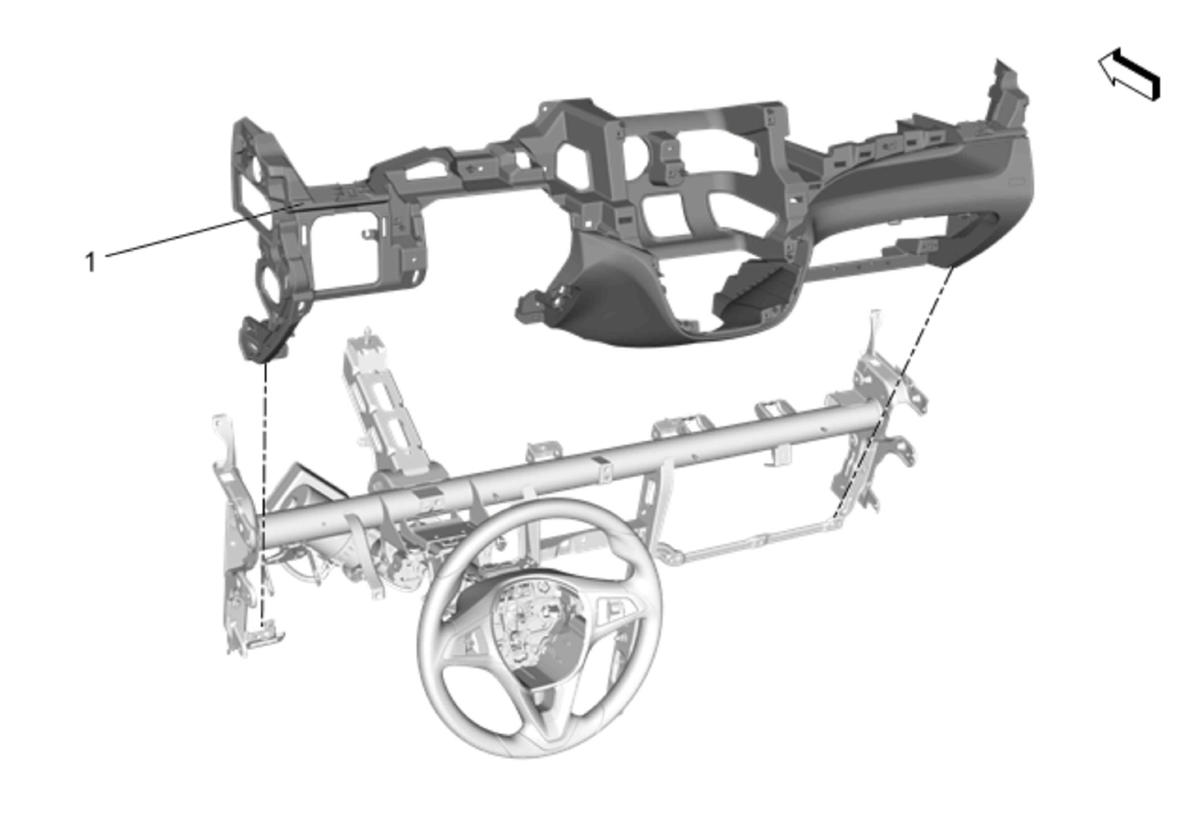

  1. GM4052340Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, load the instrument panel lower trim panel (1) to the tie bar.

  2. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument carrier.

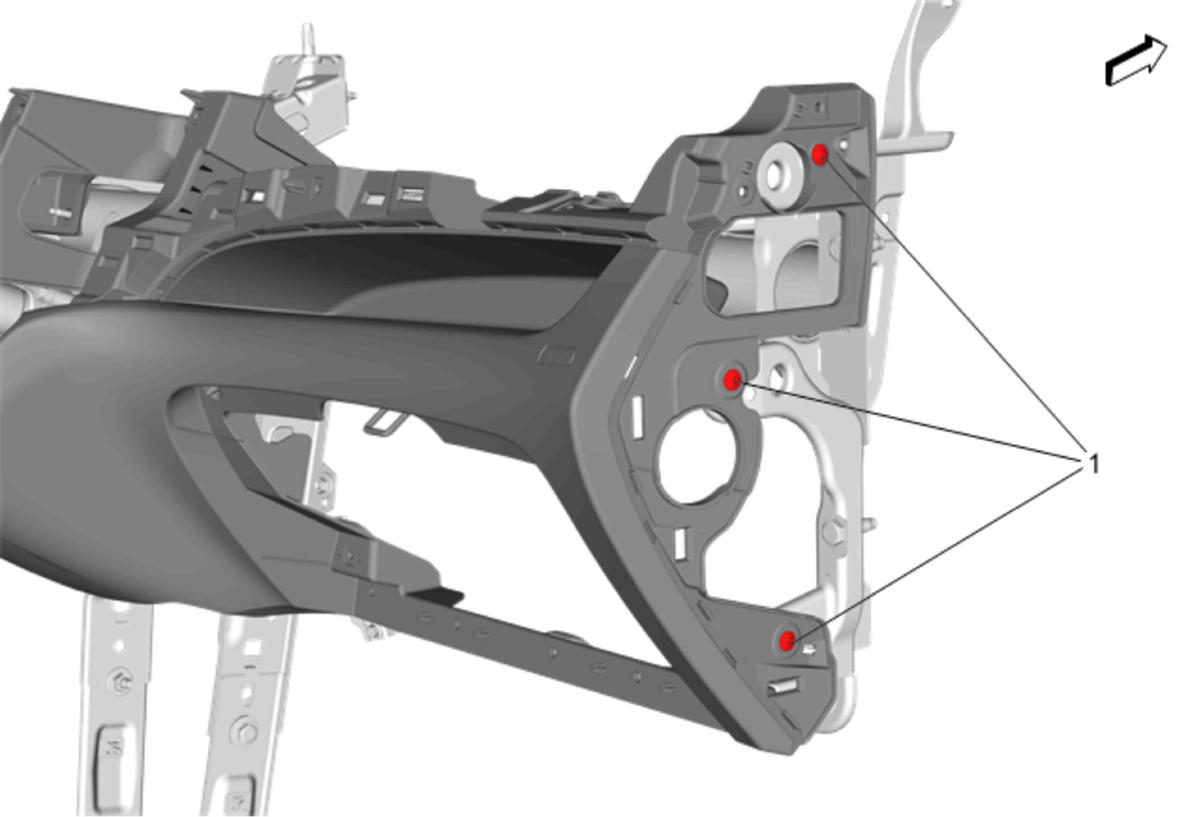

  3. GM4052339Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the instrument panel lower trim panel screws (1) on the right side of IP.

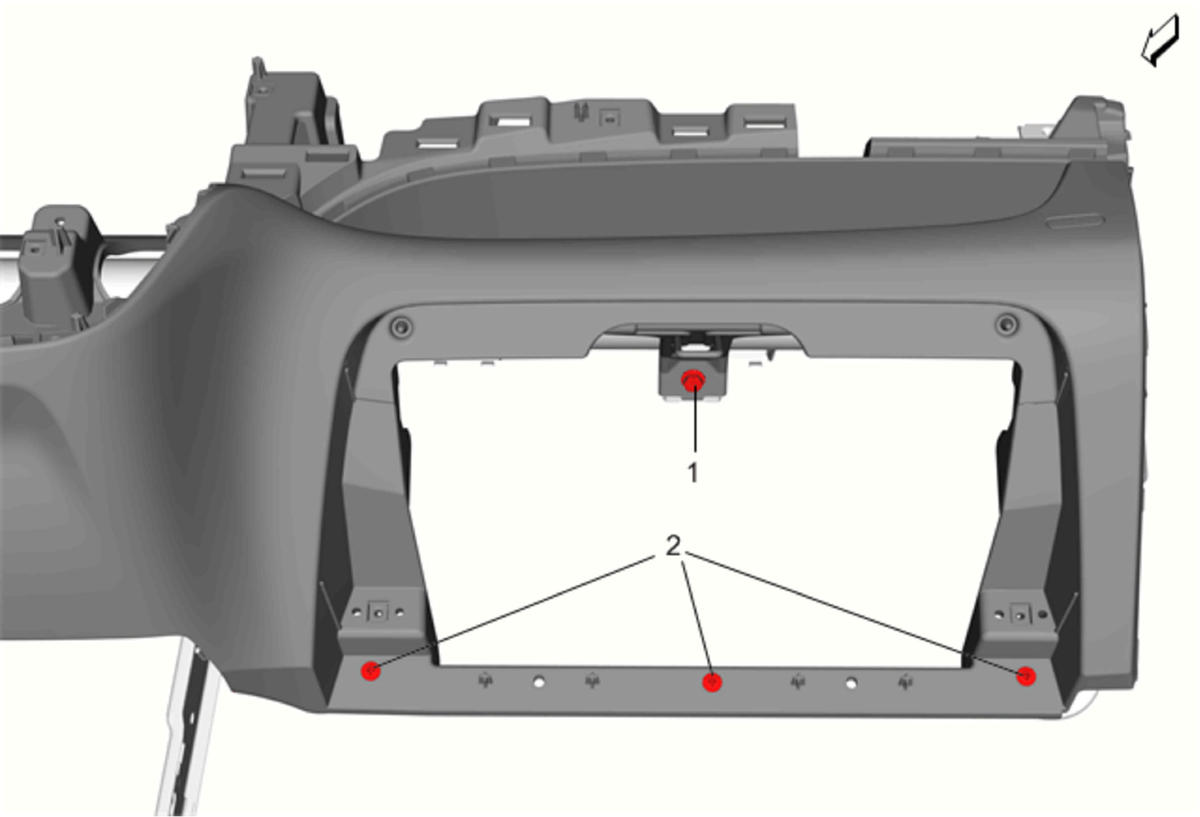

  4. GM4052333Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel compartment door latch striker bolt (1) and tighten to 9 N.m (80 lb in).

  5. Install the instrument panel lower trim panel screws (1) on the IP compartment side.

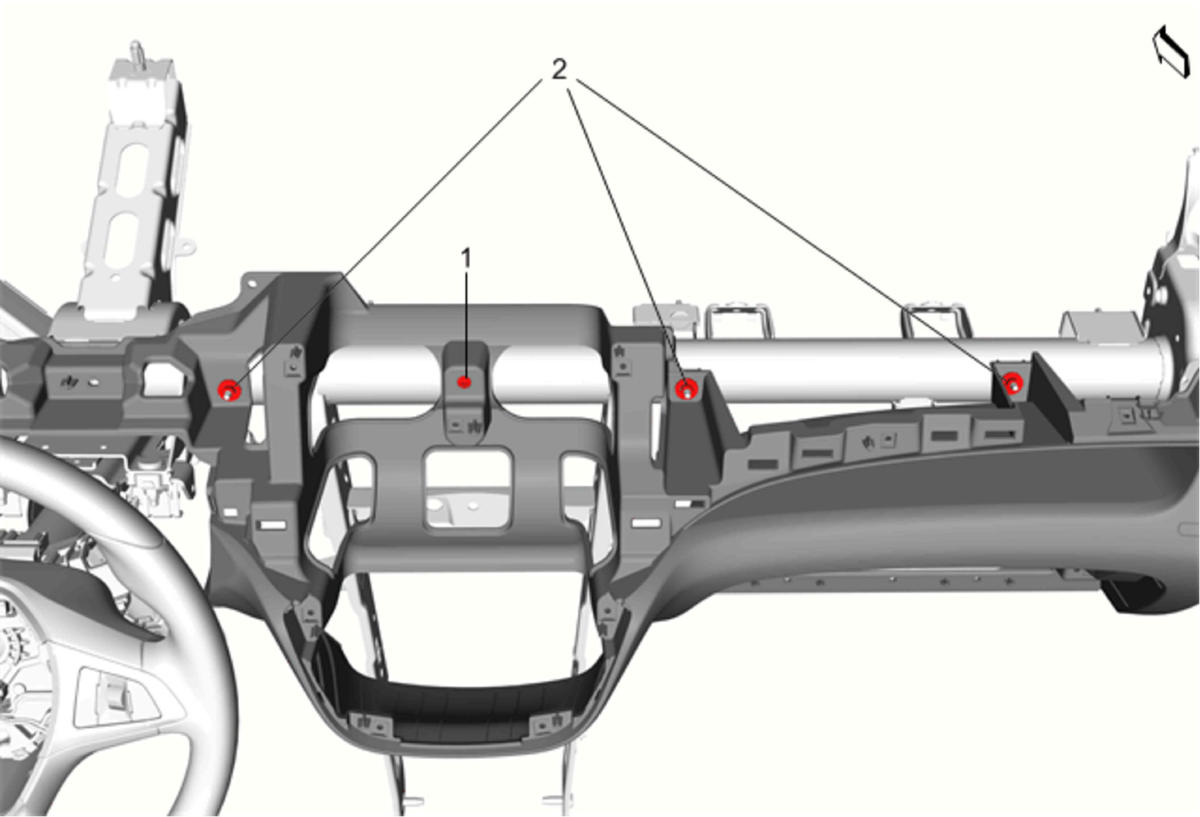

  6. GM4052332Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel lower trim panel nuts (2) and tighten to 9 N.m (80 lb in).

  7. Install the instrument panel lower trim panel screw (1) on the center of the IP.

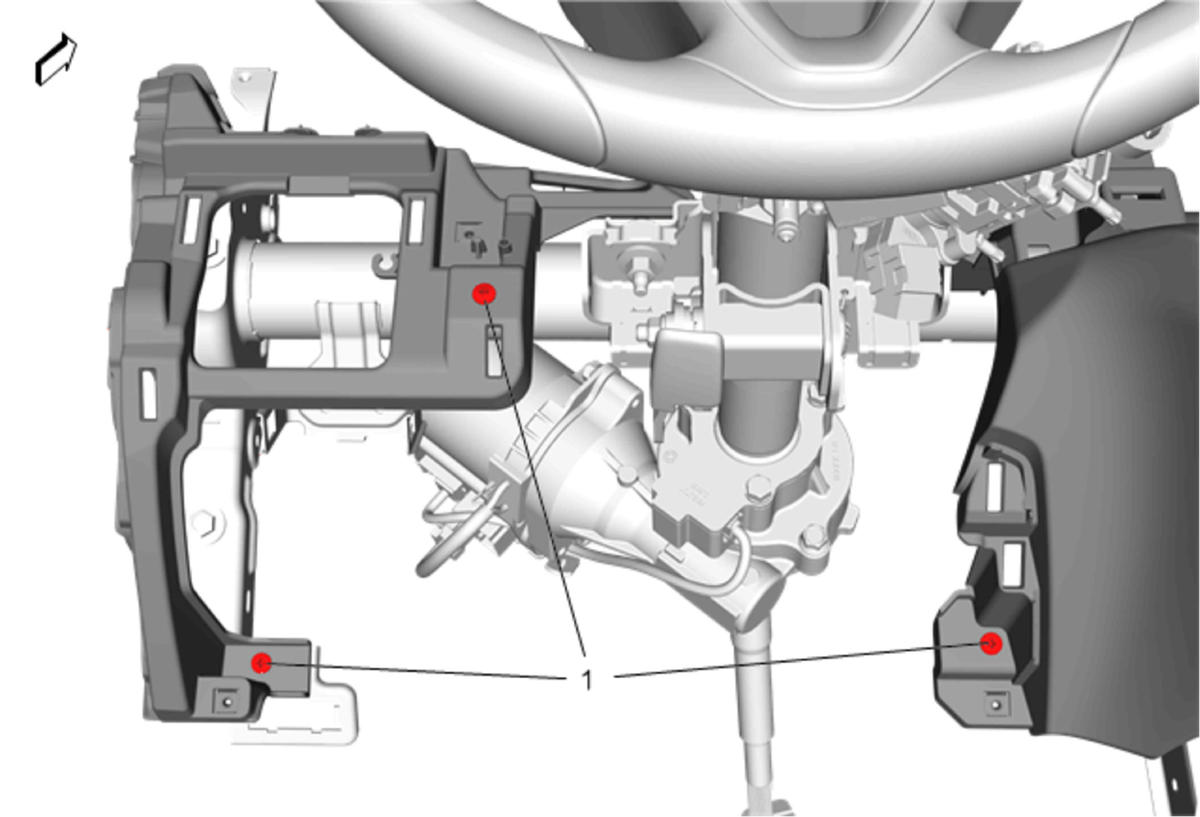

  8. GM4052331Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel lower trim panel screws (1) on the driver leg room.

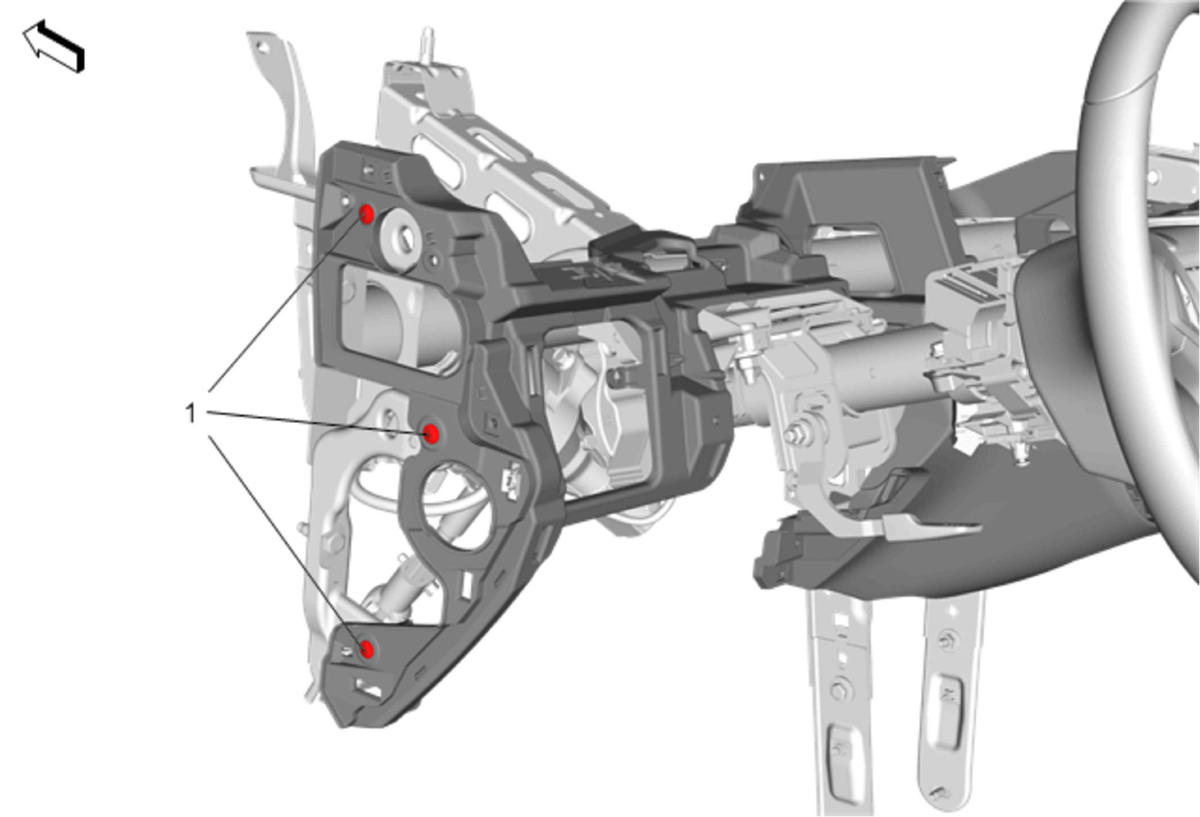

  9. GM4052326Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel lower trim panel screws (1) on the left side of the IP.

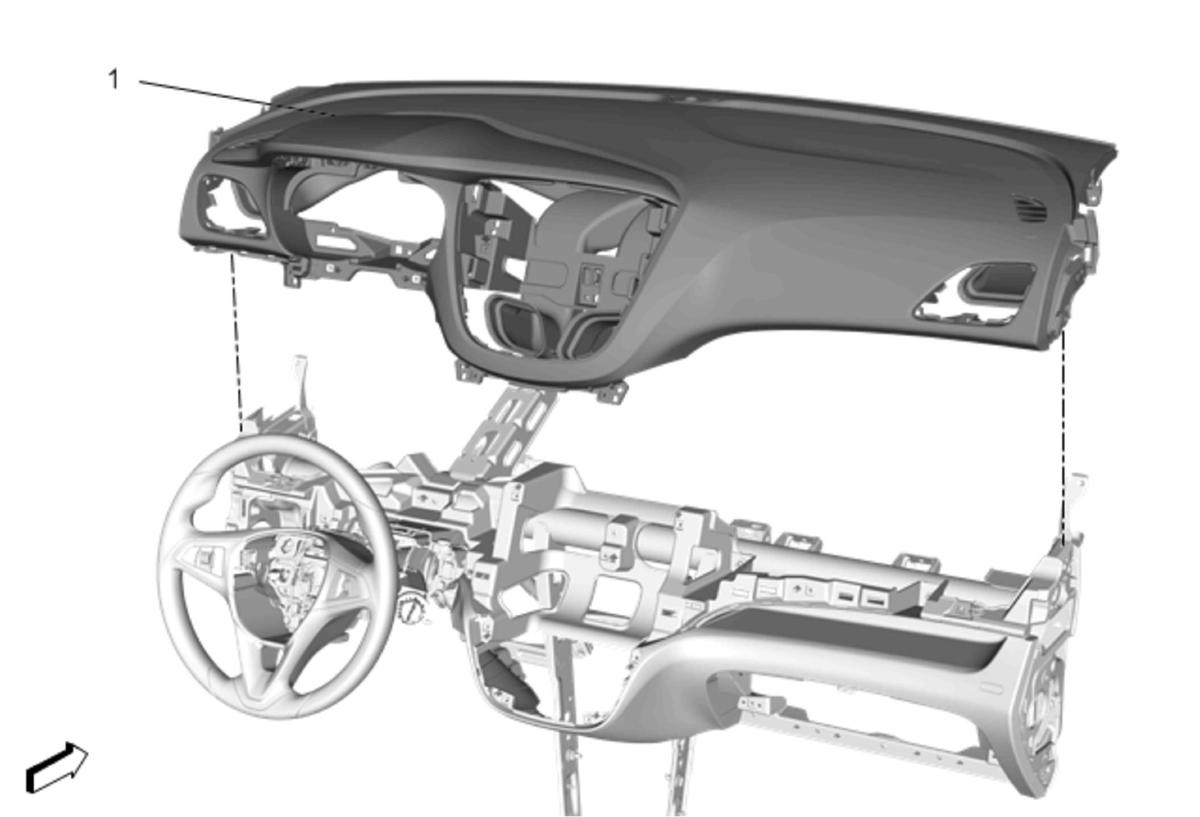

  10. GM4052325Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
