Instrument Panel Switch Trim Plate Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .

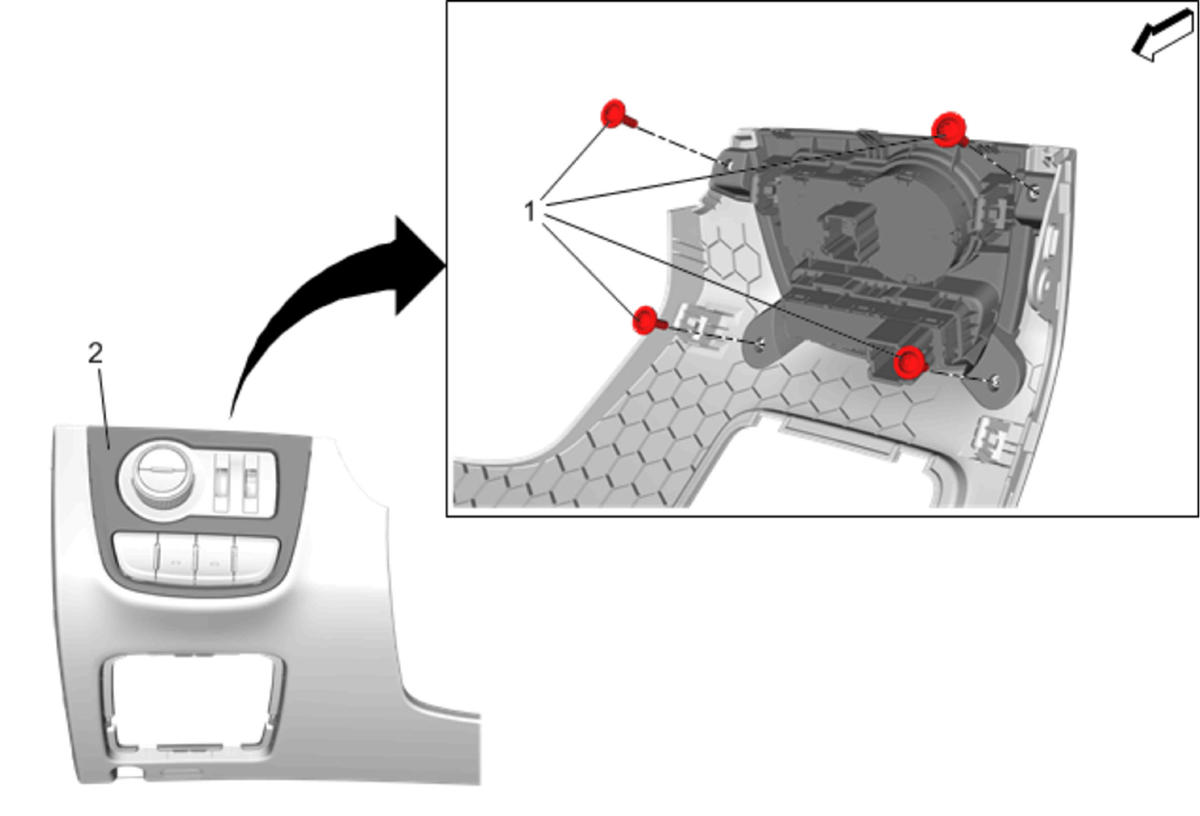

1	Instrument Panel Switch Trim Plate Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Switch Trim Plate Procedure Transfer all necessary components.

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .

Instrument Panel Switch Trim Plate Bolt (Qty: 4)

CAUTION:

Instrument Panel Switch Trim Plate
Procedure
Transfer all necessary components.
