X50D Fuse Block - Battery X2
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Positive Battery Cable
- OEM Connector: PTS120-4
- Service Connector: Service by Cable Assembly - See Part Catalog

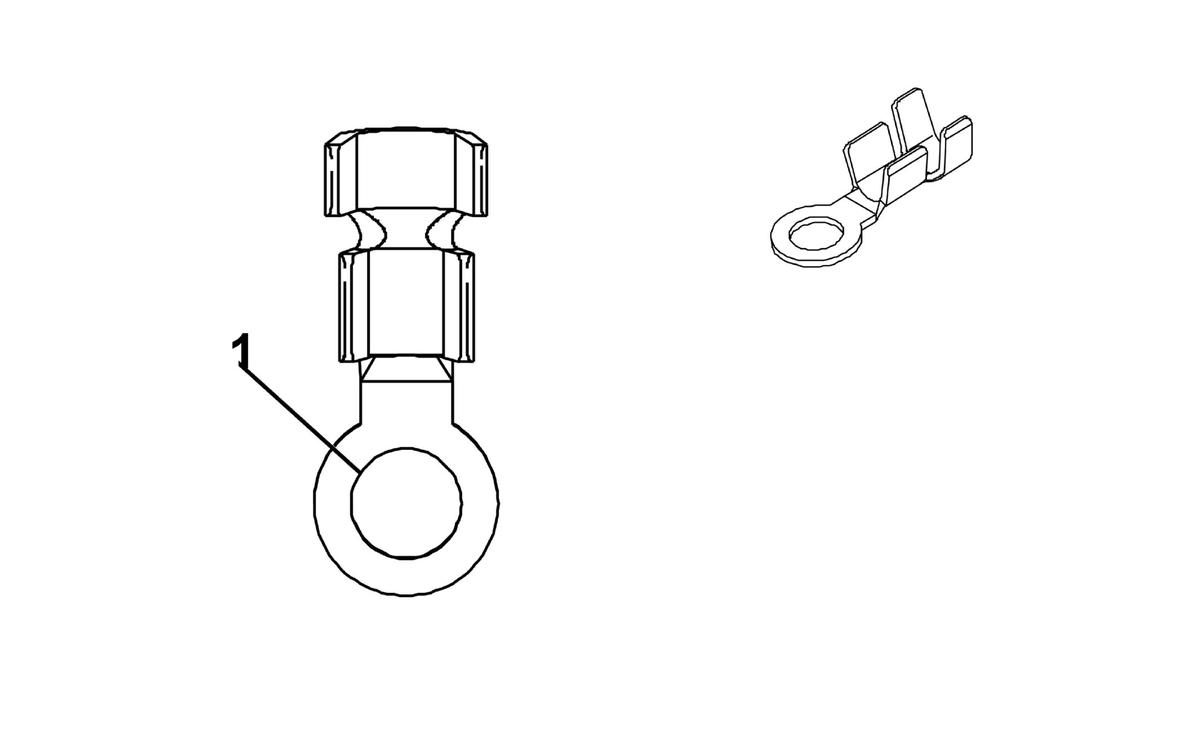

- Description: 1 - Way Ring Terminal
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
16 |
RD / WH |
4042 |
Battery Positive Voltage |
I |
- |
