Removal Procedure

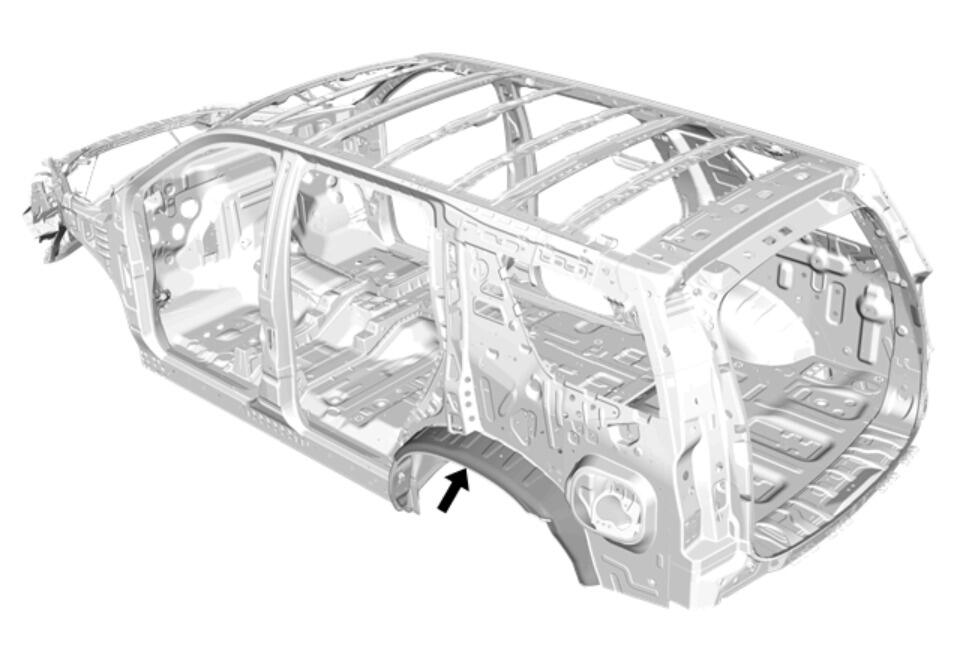

Fig 1: Quarter Inner Panel Sectioning Component Location
GM5411582Courtesy of GENERAL MOTORS COMPANY
WARNING:

Refer to Approved Equipment for Collision Repair Warning .

WARNING:

Refer to Collision Sectioning Warning .

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

NOTE:

Left shown, right similar.

NOTE:

The quarter inner is mild steel. MILD STEEL .

NOTE:

Refer to Collision Repair Specifications

  1. Disable the SIR system. SIR Disabling and Enabling .
  2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4)Battery Negative Cable Disconnection and Connection (KL9)
  3. Remove all related panels and components.
  4. Remove bodyside. Body Side Outer Panel Replacement (SWB) Body Side Outer Panel Replacement (LWB) , or Body Side Outer Panel Sectioning (SWB) Body Side Outer Panel Sectioning (LWB) .
  5. Remove quarter extension sectioning. Quarter Inner Panel Extension Replacement (SWB - Sectioning) Quarter Inner Panel Extension Replacement (SWB - Complete) Quarter Inner Panel Extension Replacement (LWB - Sectioning) Quarter Inner Panel Extension Replacement (LWB - Complete) .
  6. Remove the sealers and anti-corrosion materials from the repair area as necessary. Anti-Corrosion Treatment and Repair

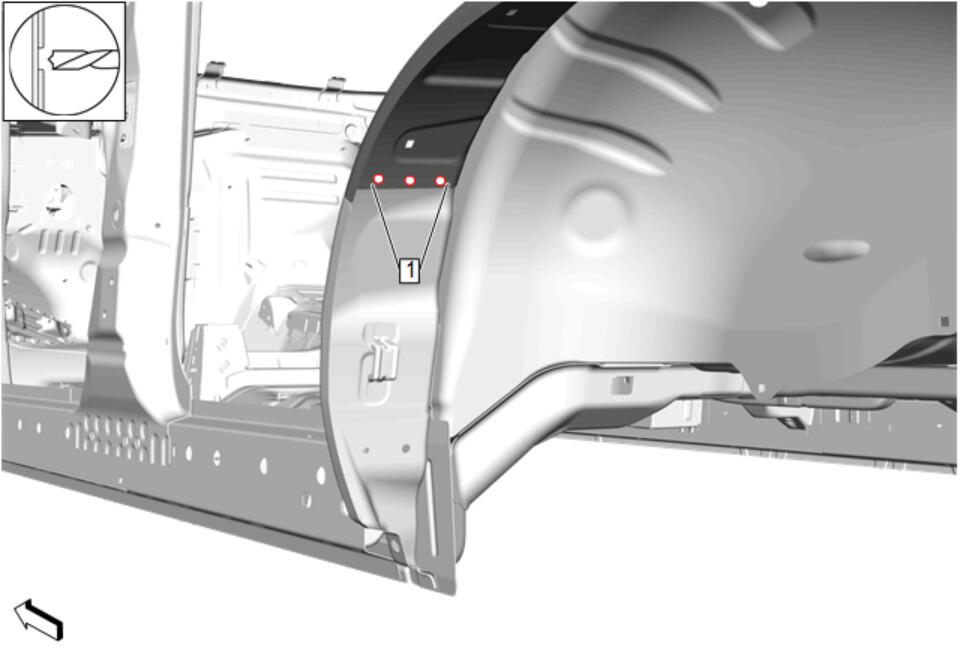

    GM5409300Courtesy of GENERAL MOTORS COMPANY
    7. NOTE:

    Do not damage or cut attaching panels and reinforcements.

  7. Remove spot welds (1). [3x]

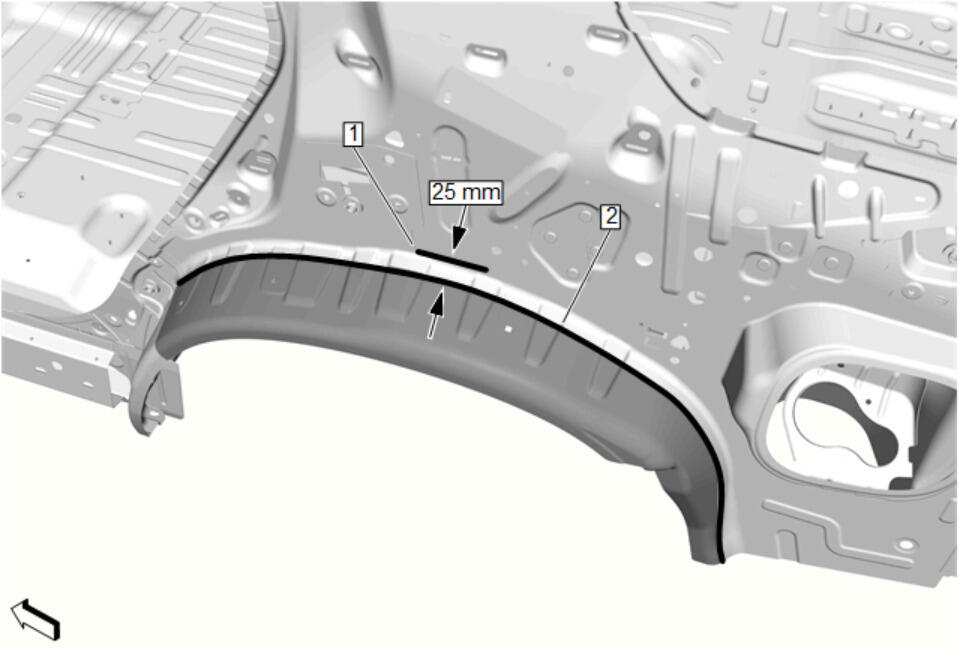

    GM5411581Courtesy of GENERAL MOTORS COMPANY
    8. NOTE:

    The service part is supplied as a complete quarter inner and will need to be cut at the proper location for sectioning. The service part will overlap the original quarter inner by approximately 25 mm (1 in).

  8. Measure and mark on the quarter inner wheelhouse 25 mm (1 in) from the radius (1) onto the flat surface (2).

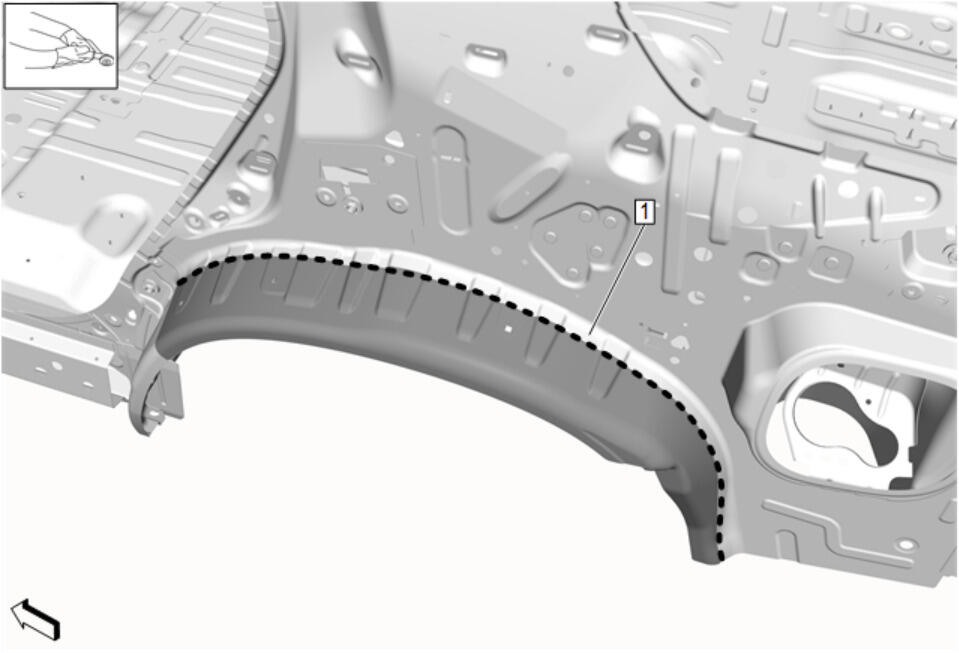

    GM5411580Courtesy of GENERAL MOTORS COMPANY
    9. NOTE:

    Do not damage or cut attaching panels and reinforcements.

    NOTE:

    All cuts are square to surface.

  9. Cut the quarter inner wheelhouse at the marked location (1).

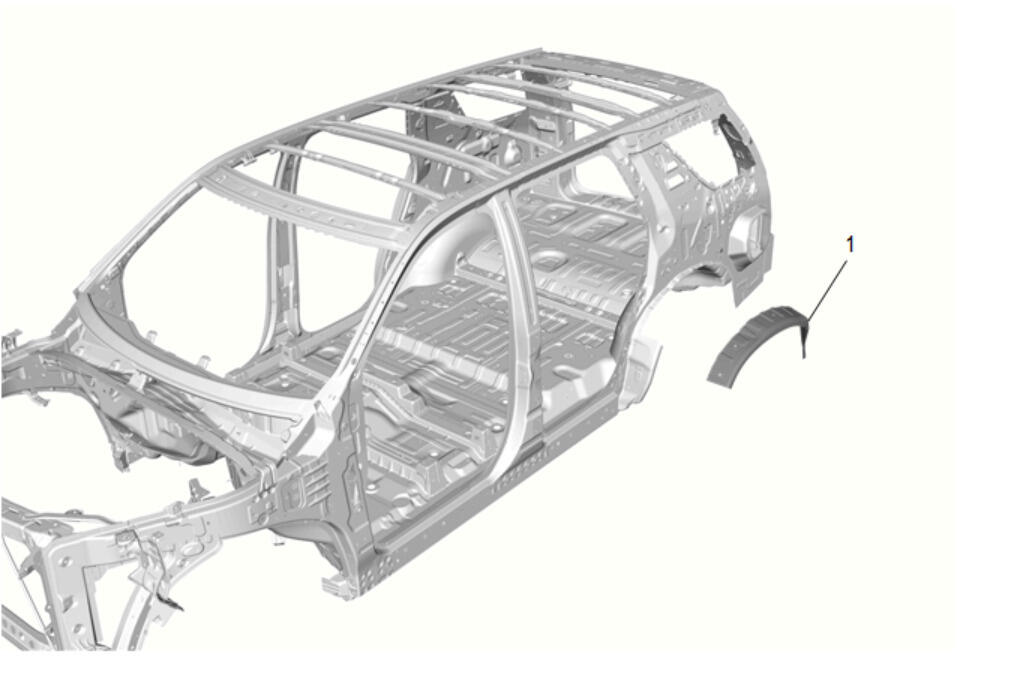

    GM5411583Courtesy of GENERAL MOTORS COMPANY
  10. Remove quarter inner (1) from the vehicle.
