Installation Procedure

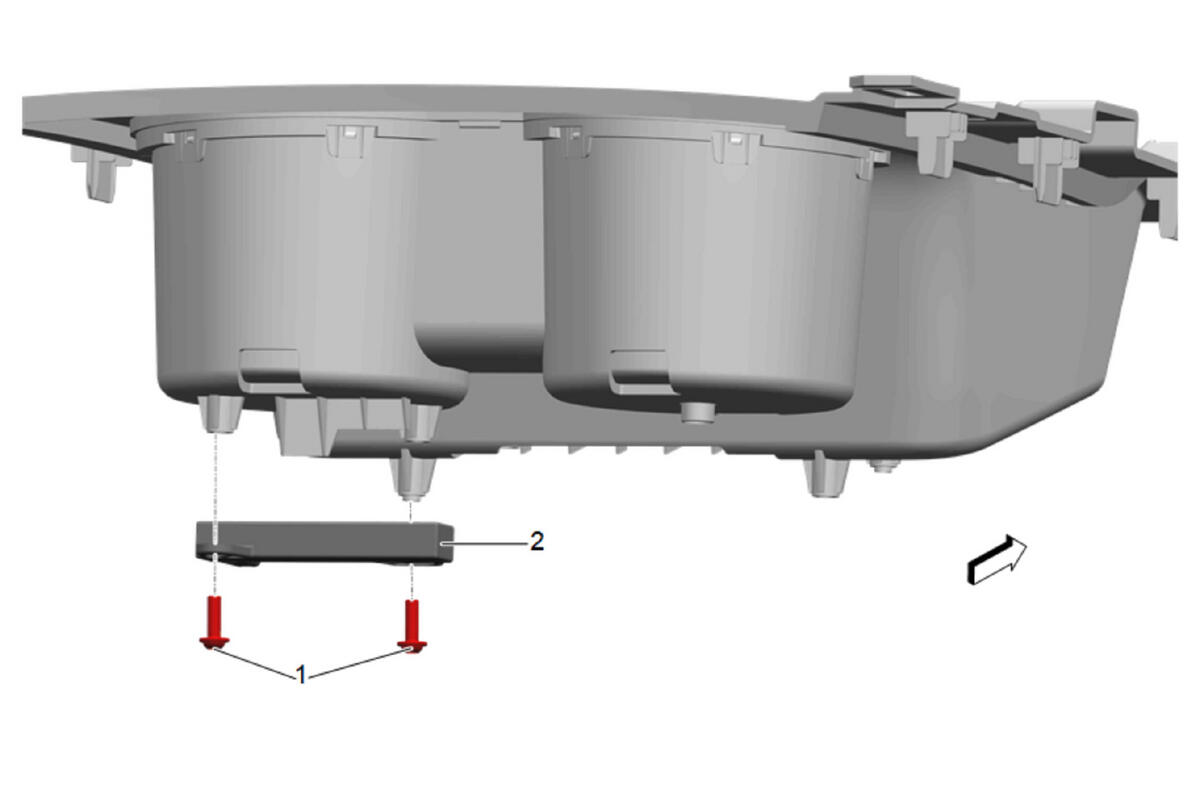

  1. GM5577614Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Console Antenna (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Theft Deterrent Module Bolt (1) - Install and tighten [2x] - Fastener Specifications (9C1)
  3. GM5552325Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Front Floor Console Cup Holder Trim Plate (1) - Install
  5. GM5544158Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install

  6. GM5544156Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Storage Tray Bolt (2) - Install and tighten [2x] - Fastener Specifications

  7. GM5544153Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Storage Tray Bolt (1) - Install and tighten [2x] - Fastener Specifications

  8. GM5537710Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  9. Front Floor Rear Console Side Trim Panel (1) - Install
  10. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  11. GM5536180Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Install

  12. GM5525888Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  13. GM5525885Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  14. GM5537709Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel (1) - Install

  15. GM5537637Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Lower Panel (1) - Install

  16. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

  17. GM5536178Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (3) - Install

  18. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  19. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  20. GM5525886Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  21. GM5525884Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique (1) - Install

  22. Return the armrest compartment to the close position.
  23. Return the seat to its original position.
