Installation Procedure

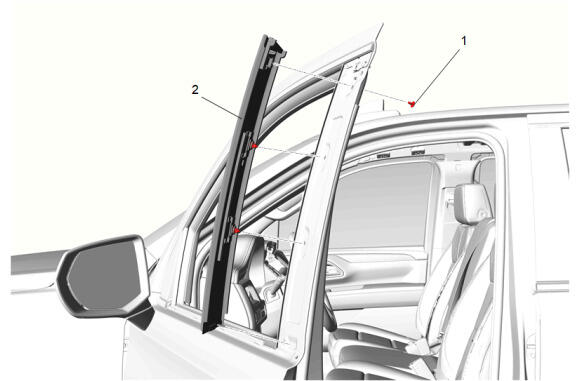

  1. GM5568761Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Frame Rear Applique(2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Side Door Window Frame Rear Applique Bolt(1) - Install and tighten - Fastener Specifications

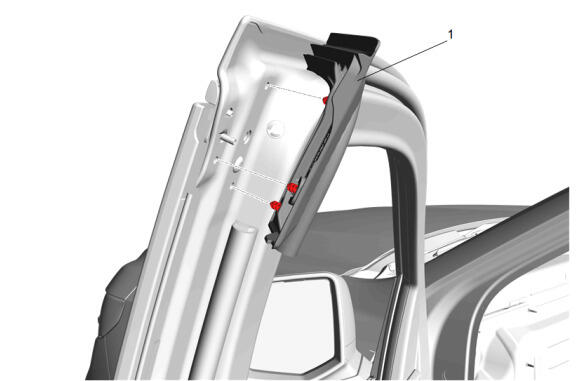

  3. GM5568762Courtesy of GENERAL MOTORS COMPANY

    Install the upper corner of the front side door window frame weatherstrip (1) back onto the front side door window frame.

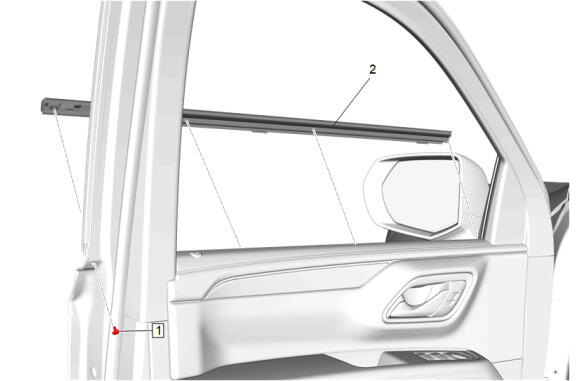

  4. GM5568843Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Belt Reveal Molding(2) - Install

  5. Front Side Door Window Belt Reveal Molding Bolt(1) - Install and tighten - Fastener Specifications
