Installation Procedure

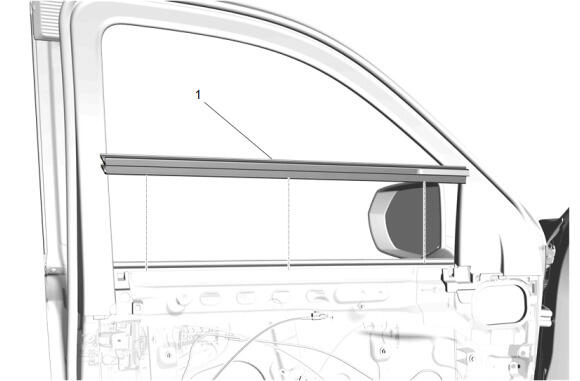

  1. GM5569496Courtesy of GENERAL MOTORS COMPANY

    Press firmly to install the front side door window inner sealing strip (1) back on the door flange.

  2. Front Side Door Window Inner Sealing Strip(1) - Install
  3. Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
