Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Window Regulator(1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Rear Side Door Window Regulator Nut(1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

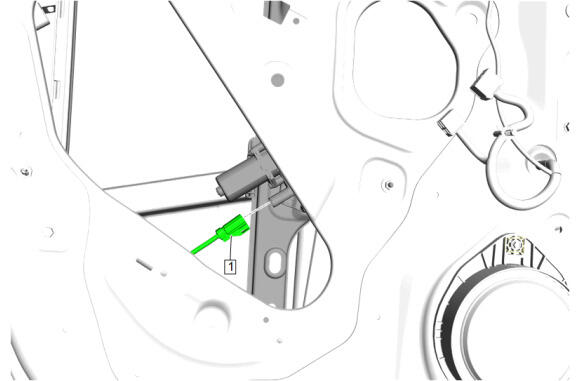

Connect the electrical connector.(1)
Courtesy of GENERAL MOTORS COMPANY

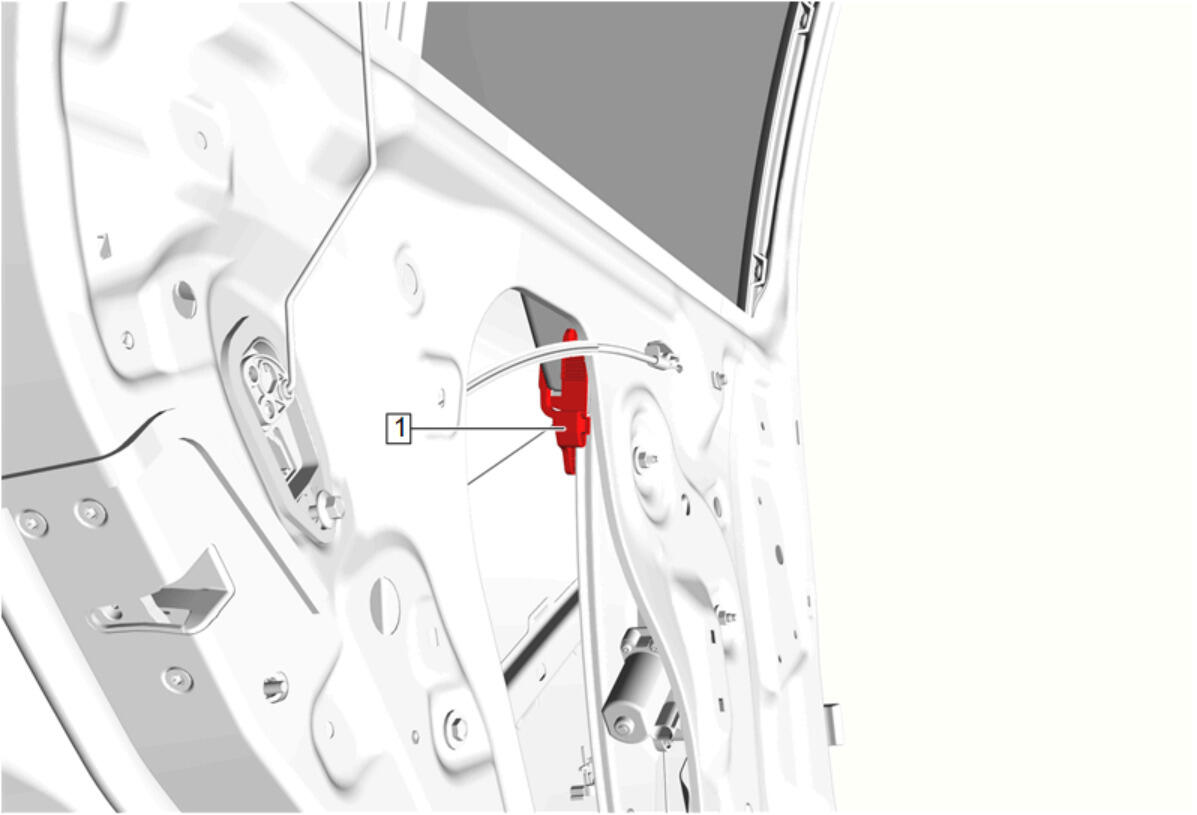

Place the window regulator sash retainer (1) in the full up position.
Remove the tape holding the front side door window in the full up position.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When reinstalling the rear side door water deflector ensure integral locators are installed properly and the rear side door water deflector is secured and leakproof.

Route the rear side door inside handle cable through hole in rear side door water deflector (1).
Rear Side Door Water Deflector(1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Pull Handle Bracket(2) - Install
Rear Side Door Trim Bolt(1) - Install and tighten [2x] - Fastener Specifications
Rear Side Door Trim - Install - Rear Side Door Trim Removal and Installation
Ensure the window system operates properly.
