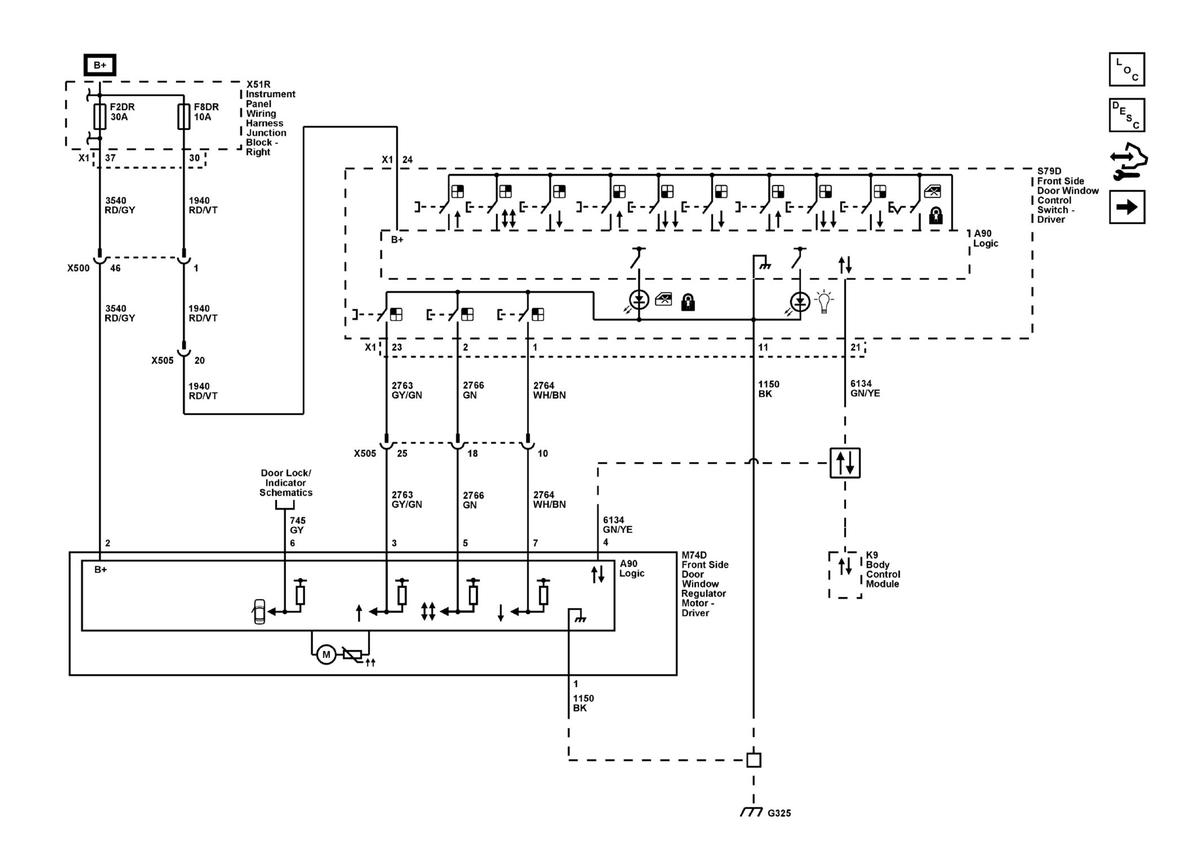

Moveable Window Wiring Schematics: Driver
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
