Side View (SWB)

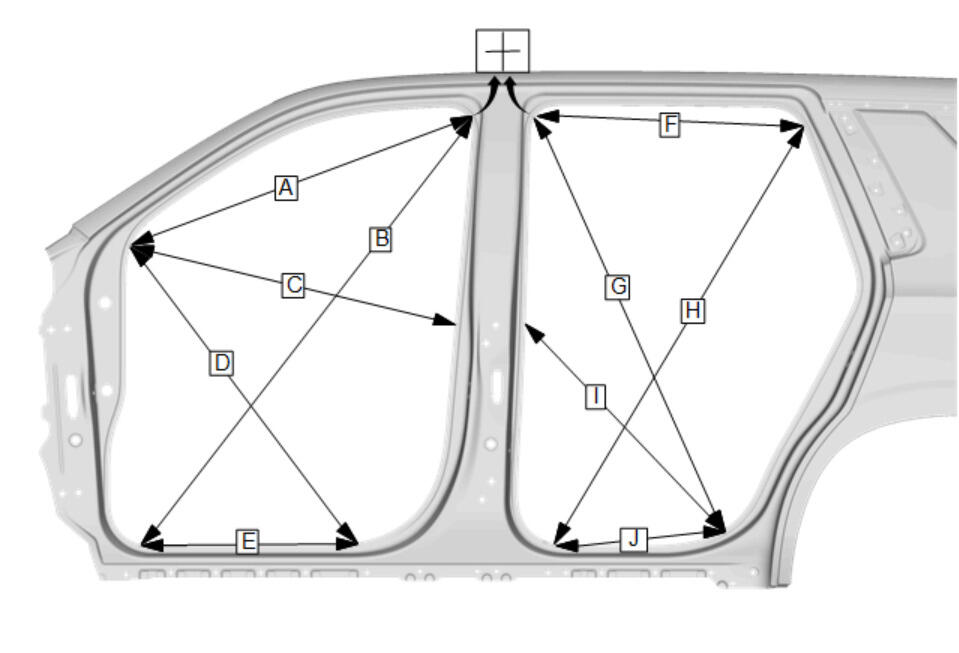

Fig 1: Side View Dimensions And Measurement Points (SWB)

GM5323899

Courtesy of GENERAL MOTORS COMPANY

Number	Measurement (mm)
A	1025
B	1526
C	946
D	1058
E	614
F	764
G	1283
H	1377
I	818
J	519
