Installation Procedure

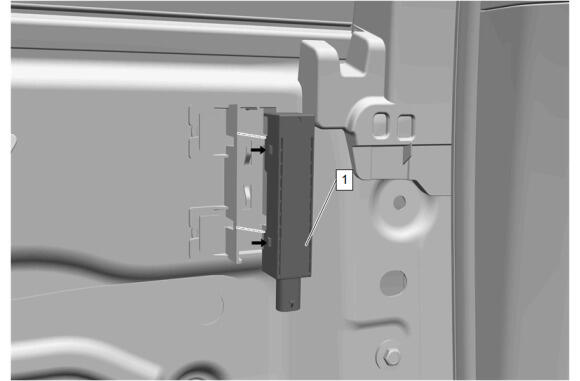

  1. GM5577691Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Body Side Antenna (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.
  4. Rear Side Door Trim - Install - Rear Side Door Trim Removal and Installation
