Installation Procedure
- Install the chassis rear wiring harness extension harness (1).

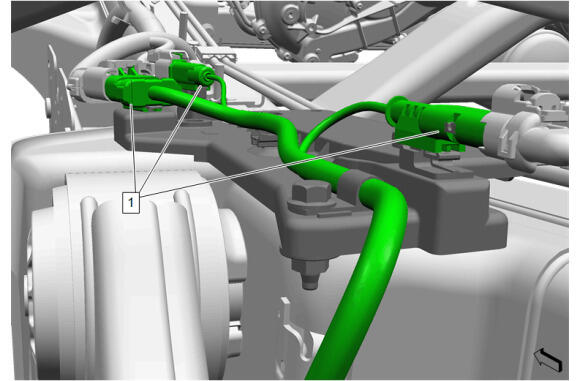

- Connect the 3 chassis rear wiring harness extension harness connectors (1).

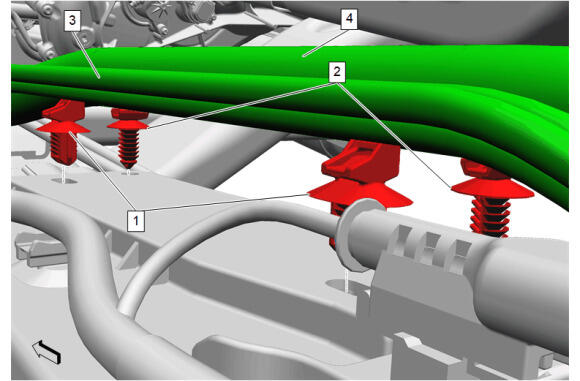

- Position the master chassis harness (4) into place.
- {If equipped }Position the air suspension air line (3) into place.
- Wiring Harness Retainer (2) - Install [2x]

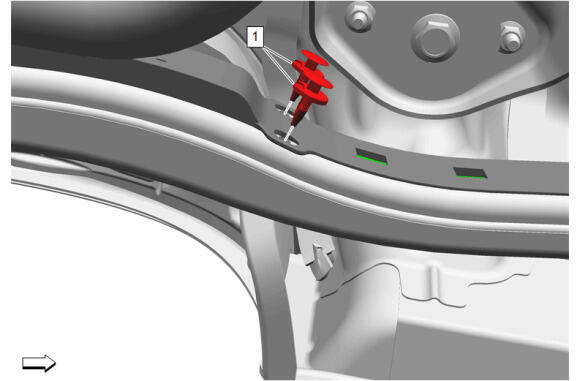

- {If equipped }Retainer (1) - Install [2x]

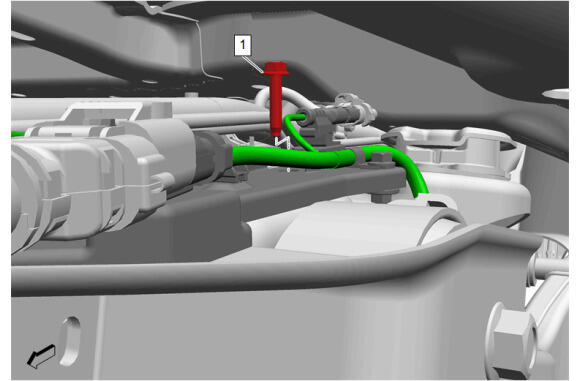

- Chassis Rear Wiring Harness Bracket Bolt (1) - Install and tighten - Fastener Specifications CAUTION:

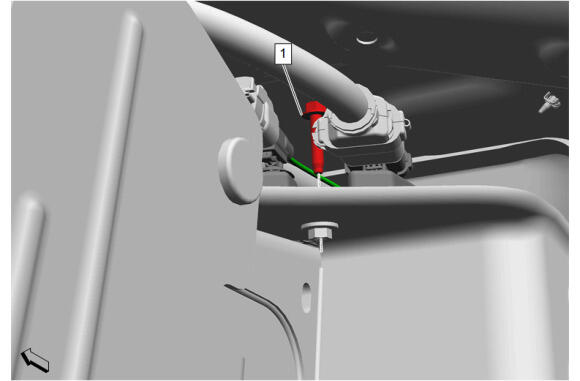

- Chassis Rear Wiring Harness Bracket Bolt (1) - Install and tighten - Fastener Specifications
- Chassis Rear Wiring Harness Bracket Bolt (1) - Install and tighten - Fastener Specifications
- Chassis Rear Wiring Harness Clip (1) - Install [2x]

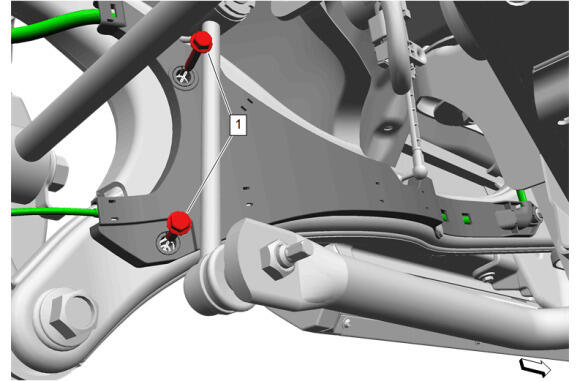

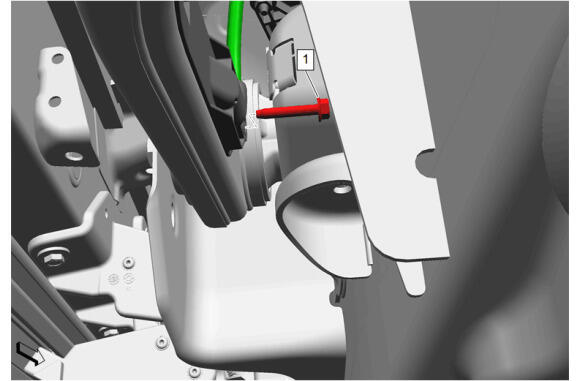

- Chassis Rear Wiring Harness Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications NOTE:
It may be necessary to raise rear suspension to create clearance for full removal/install of upper bracket bolt.

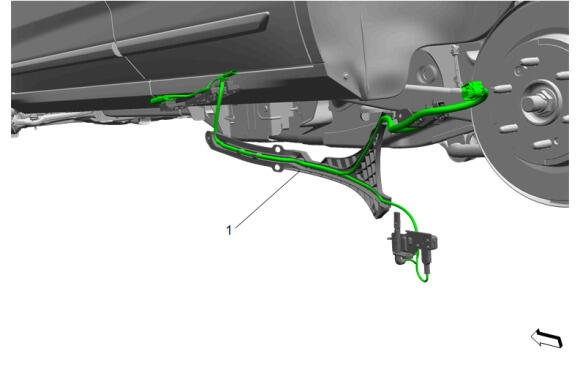

- Electrical Connector (1) @Rear Parking Brake Actuator - Connect

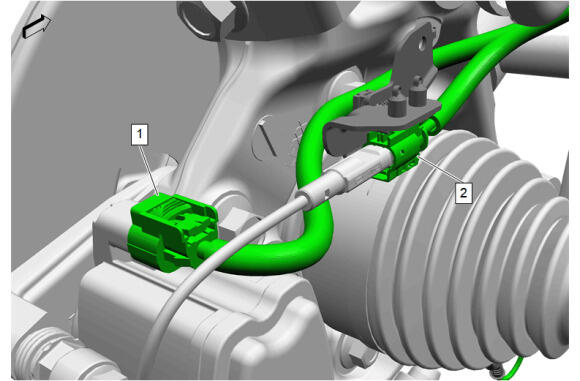

- {If equipped }Electrical Connector (2) @Rear Disc Brake Pad Wear Sensor - Connect
- Apply a light coat of wheel speed anti-corrosion grease to the rear wheel speed sensor (1) and mounting pad on the rear steering knuckle. Adhesives, Fluids, Lubricants, and Sealers

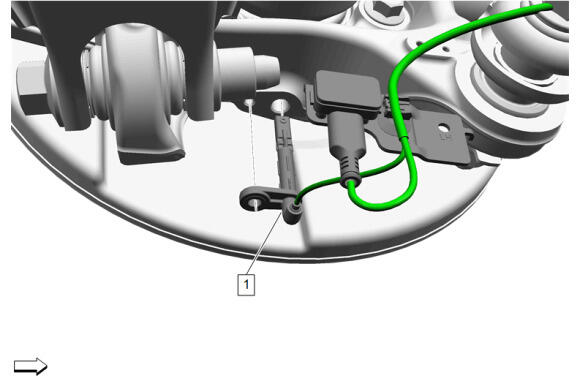

- Rear Wheel Speed Sensor (1) - Install
- Chassis Rear Wiring Harness Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
- Remove the support and lower the vehicle.
- Verify the repair is complete. Diagnostic Repair Verification
