Antilock Brake System Wiring Schematics
›

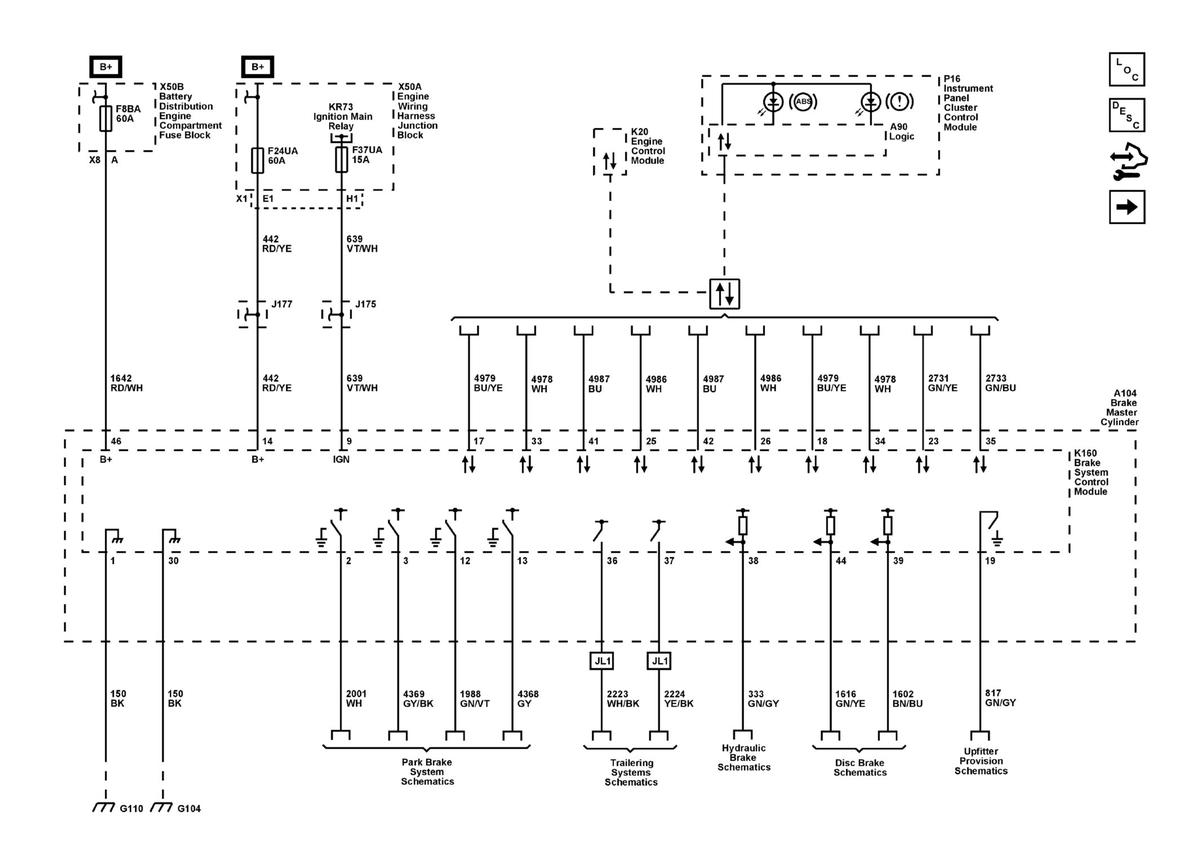

Module Power, Ground, Serial Data, Indicators, and Subsystem References
Module Power, Ground, Serial Data, Indicators, and Subsystem References
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
