Removal Procedure
Refer to SIR Warning .
Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.
- Disable the SIR system. SIR Disabling and Enabling
- Place the rear seat in the fold and tumble position.
Using a flat-bladed plastic trim tool, release the retaining clips.
- Rear Side Door Sill Garnish Molding (1) - Remove

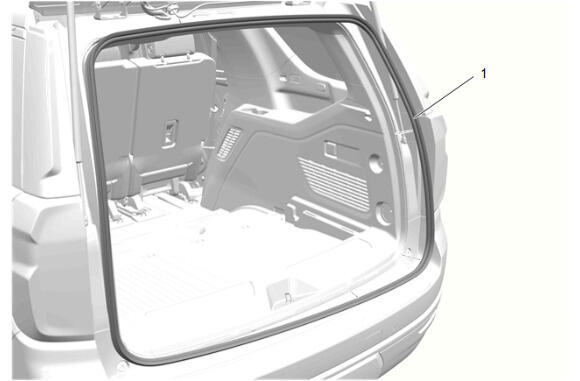

Liftgate Weatherstrip (1) - Reposition
Liftgate Lock Striker Cover (1) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
- Rear End Trim Finish Panel (1) - Remove
Rear Seat Belt Retractor Sleeve (1) - Reposition
- Rear Seat Belt Anchor Plate Bolt (2) - Remove
Rear Seat Belt Opening Bezel (1) - Disengage
Quarter Window Trim Finish Panel Bolt Cap (1) - Remove
- Quarter Window Trim Finish Panel Bolt (2) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
- Body Lock Pillar Upper Trim Panel (1) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
- Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.
Body Side Rear Window Garnish Molding Bolt (1) - Remove
- Body Side Rear Window Garnish Molding Tether Retaining Clip (2) - Remove
Body Rear Corner Upper Garnish Molding Bolt (1) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
- Body Rear Corner Upper Garnish Molding (1) - Remove
Convenience Net Retainer (1) - Remove
- Cargo Tie Down Loop Bolt Cap (2) - Open
- Cargo Tie Down Loop Bolt (3) - Remove
- Cargo Tie Down Loop (4) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
- Quarter Lower Rear Trim Panel (1) - Remove
Disconnect the electrical connectors (1).
- Remove the wiring harness retainers (2).
Disconnect the electrical connectors.
- Accessory AC and DC Power Control Module Nut (1) - Remove [3x]
- Accessory AC and DC Power Control Module (2) - Remove
Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.
