Installation Procedure

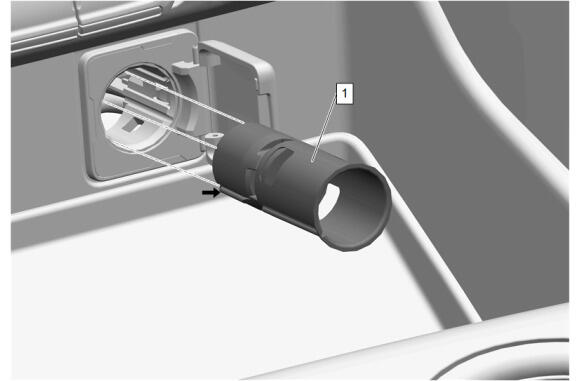

  1. GM5573247Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector to the accessory power receptacle (1).

  2. Align the tabs on the receptacle (1) to the slots in the retainer. Install the accessory power receptacle by pressing into place until fully seated.
  3. Install the auxiliary power outlet fuse.
