Installation Procedure

  1. Battery Monitor Module (1) - Install
    GM5568793Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution

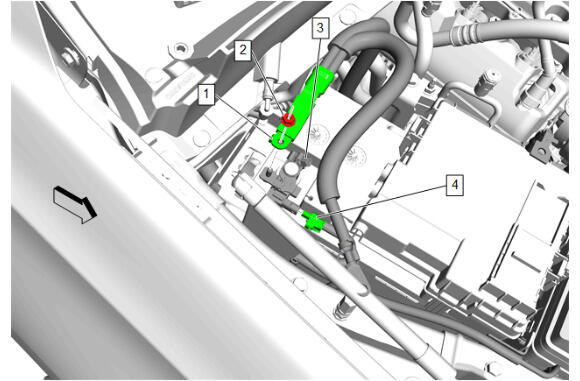

  2. Battery Negative Post Clamp Nut (3) - Tighten - Fastener Specifications
  3. Starter Solenoid Cable (1) - Install
    GM5568789Courtesy of GENERAL MOTORS COMPANY
  4. Battery Negative Cable Ground Nut (2) - Install and tighten - Fastener Specifications
  5. Electrical Connector (4) - Connect
