Fastener Specifications
NOTE:

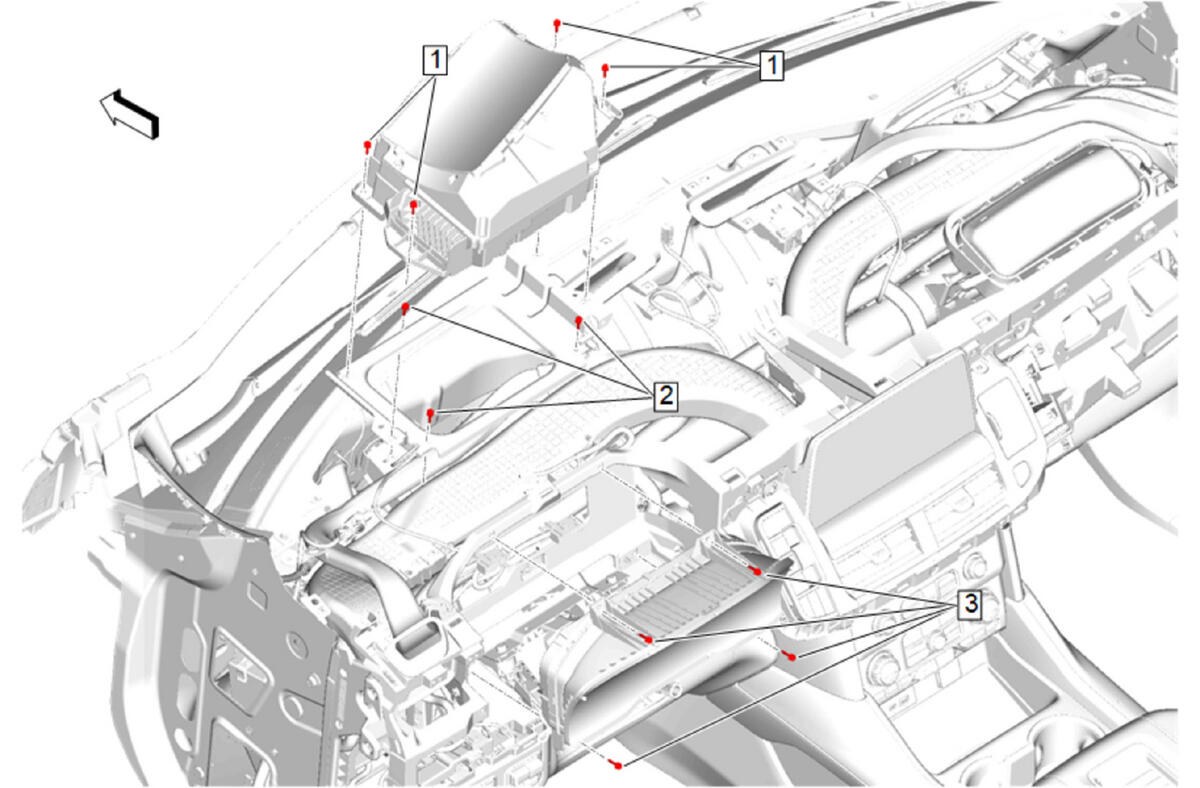

Callouts in the following chart represent components shown in graphic above.
Display and Gauges
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Head-Up Display Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Head-Up Display Replacement |
| 2 | Head-Up Display Bracket Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Head-Up Display Bracket Replacement |
| 3 | Instrument Cluster Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Instrument Cluster Replacement |
