Engine Compartment

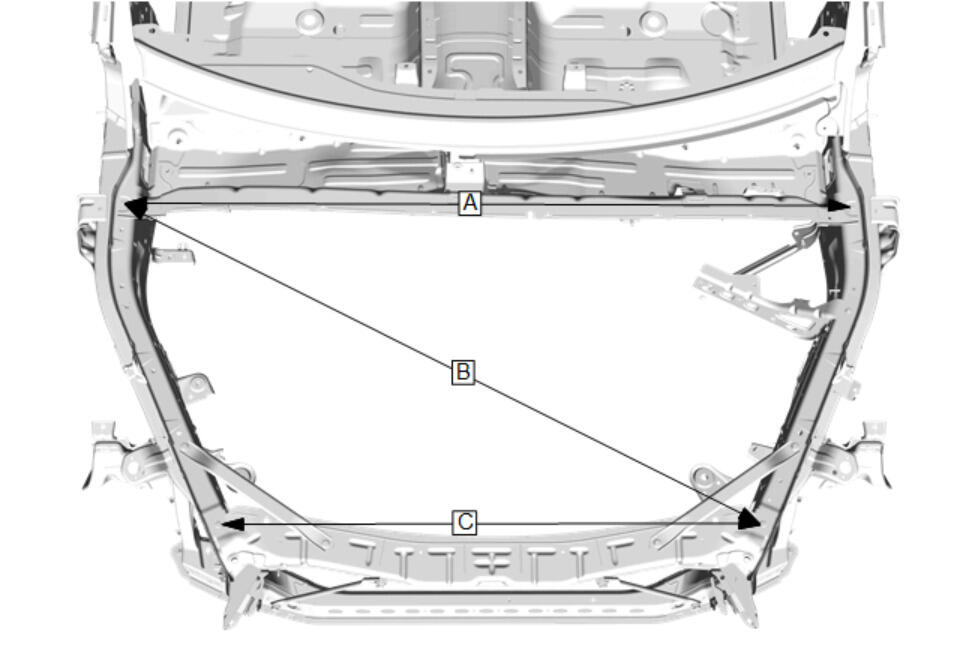

Fig 1: Engine Compartment Dimensions And Measurement Points
GM5323894Courtesy of GENERAL MOTORS COMPANY
Number Measurement (mm)
A 1637
B 1562
C 1136
