Side View (LWB)

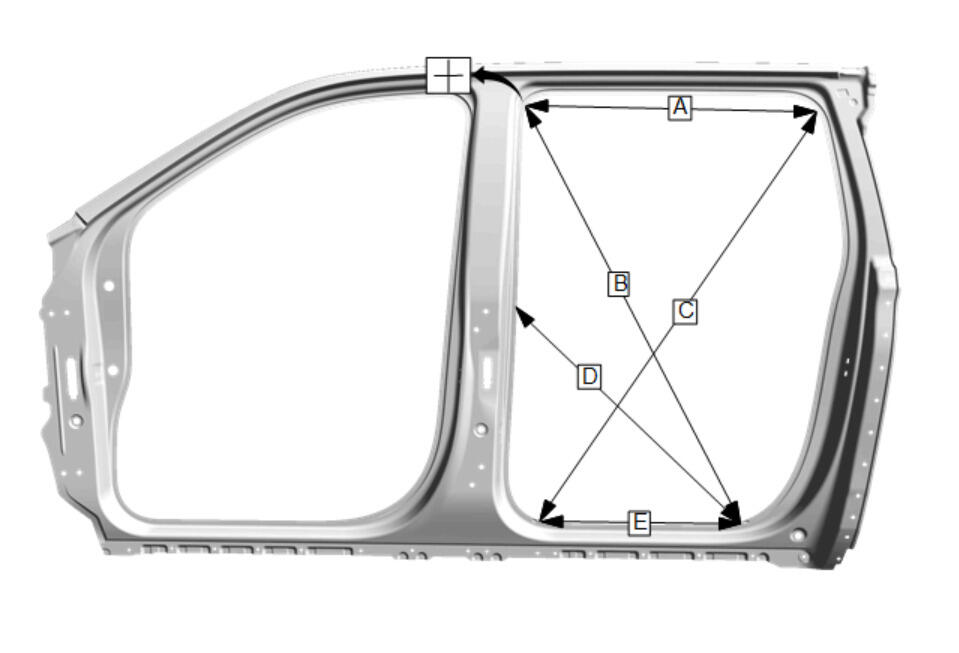

Fig 1: Side View Dimensions And Measurement Points (LWB)

GM5323897

Courtesy of GENERAL MOTORS COMPANY

Number	Measurement (mm)
A	843
B	1355
C	1432
D	890
E	559
