Air Cleaner Assembly Replacement

Preliminary Procedures

1. Air Cleaner Outlet Duct @ Air Cleaner Assembly - Disconnect - Air Cleaner Outlet Duct Replacement
2. Intake Air Duct Replacement
3. Disconnect the electrical connector.

Procedure

1. Unclip the mass airflow sensor wiring harness retainer from the air cleaner assembly.

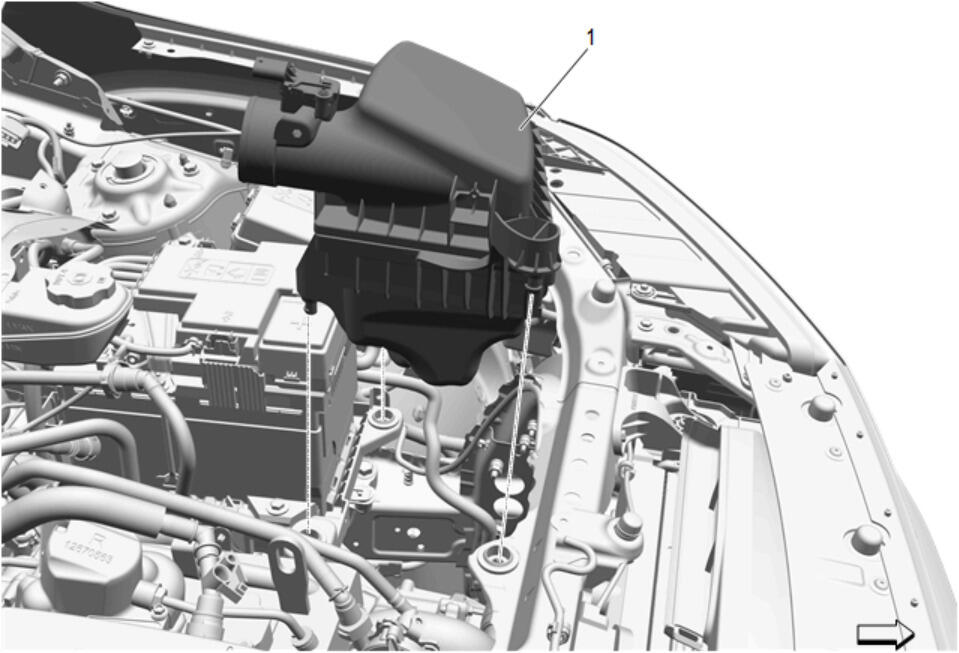

2. Remove the air cleaner housing from the retainers.
3. Transfer parts as necessary.
