Camshaft Position Sensor Replacement - Intake

Courtesy of GENERAL MOTORS COMPANY

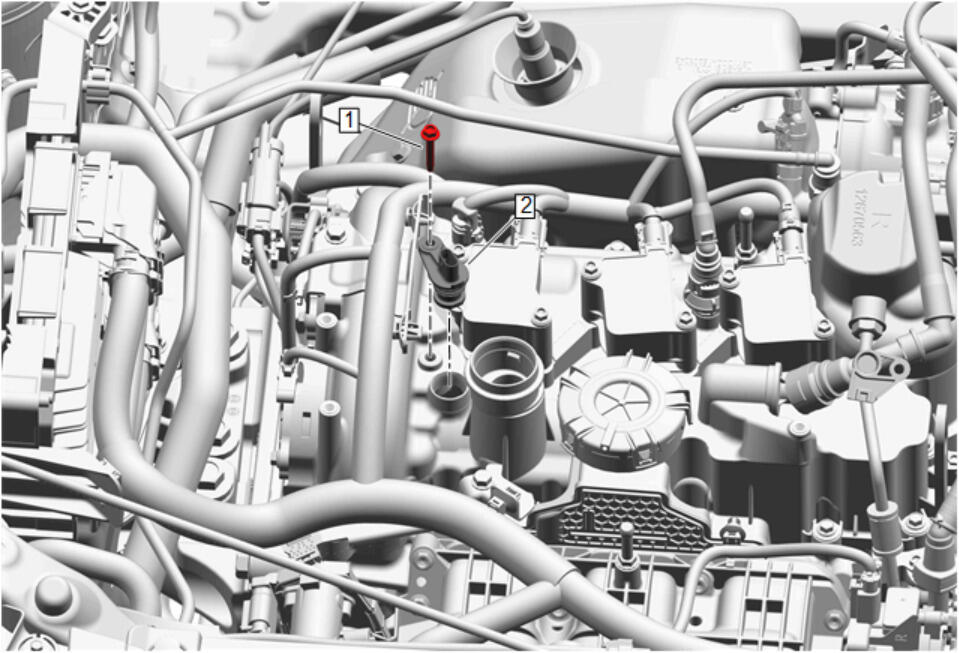

Callout	Component Name
Preliminary Procedure  Intake Manifold Cover Replacement
1	Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten  8.5 N.m (75 lb in)
2	Camshaft Position Sensor Procedure  Disconnect the camshaft position sensor electrical wiring harness connector.
