Engine Oil Temperature Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Engine Oil Cooler Replacement (L3T)

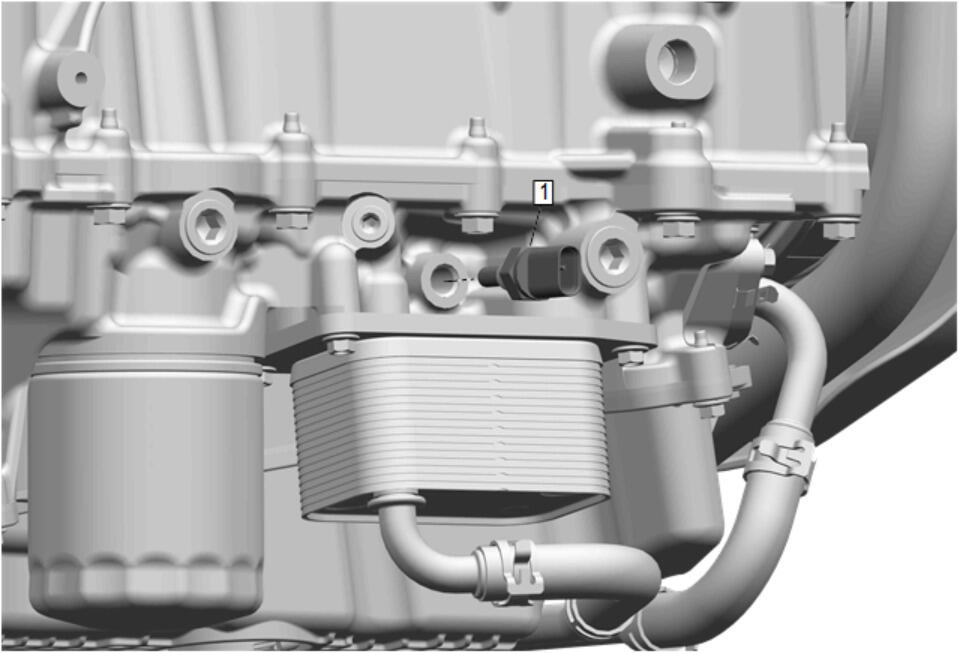

1	Engine Oil Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the engine oil temperature sensor electrical wiring harness connector. Tighten  20 N.m (15 lb ft)
