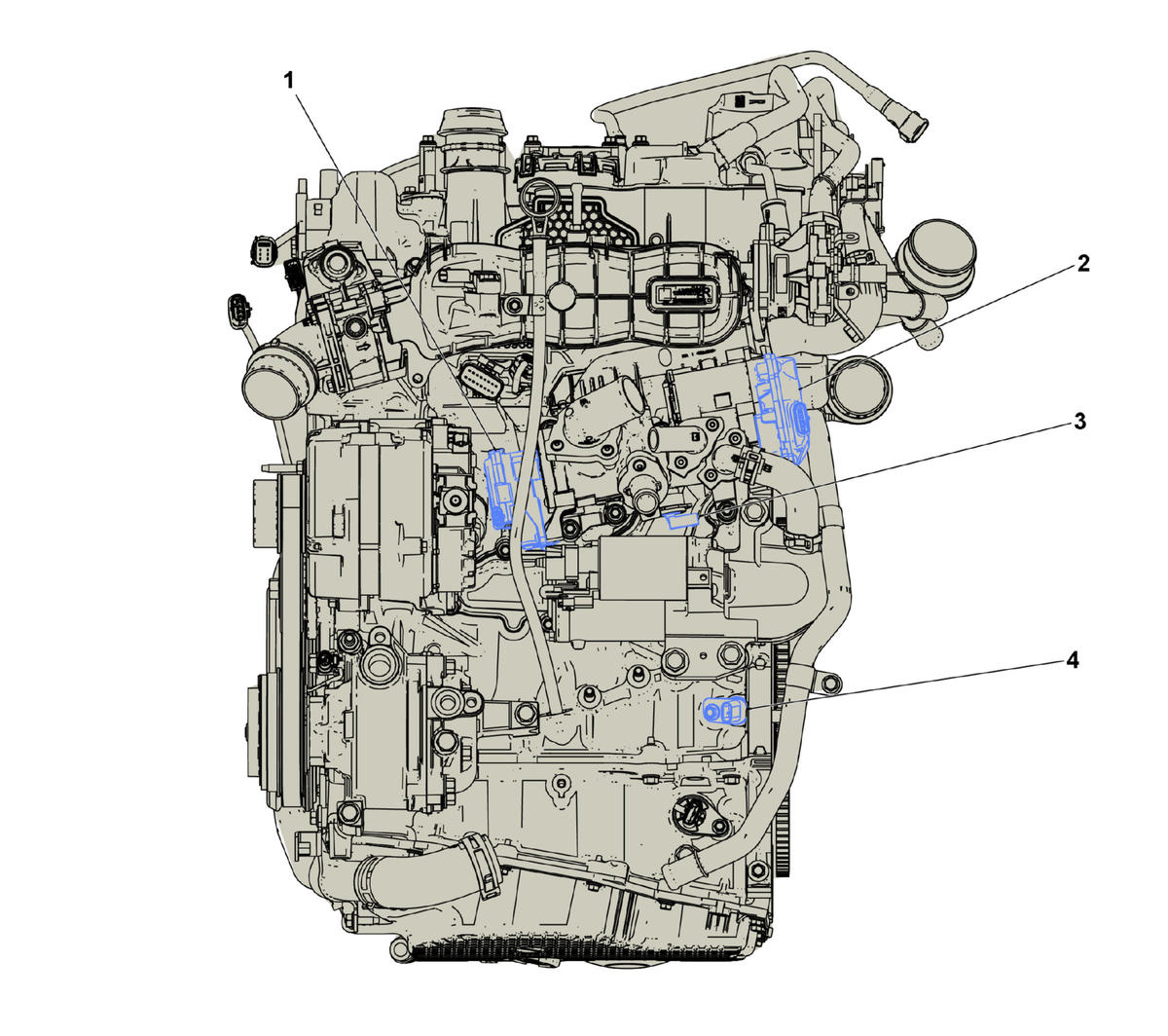

Engine - Left Components (L3T/L3Z)
Engine - Left Components (L3T/L3Z)
| Component Name | Callout |
|---|---|
| Q97 Engine Coolant Flow Control Valve Q97 Engine Coolant Flow Control Valve | 1 |
| Q97B Engine Coolant Flow Control Valve - Block Q97B Engine Coolant Flow Control Valve - Block | 2 |
| B34F Engine Coolant Temperature Sensor 6 B34F Engine Coolant Temperature Sensor 6 | 3 |
| B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor | 4 |
