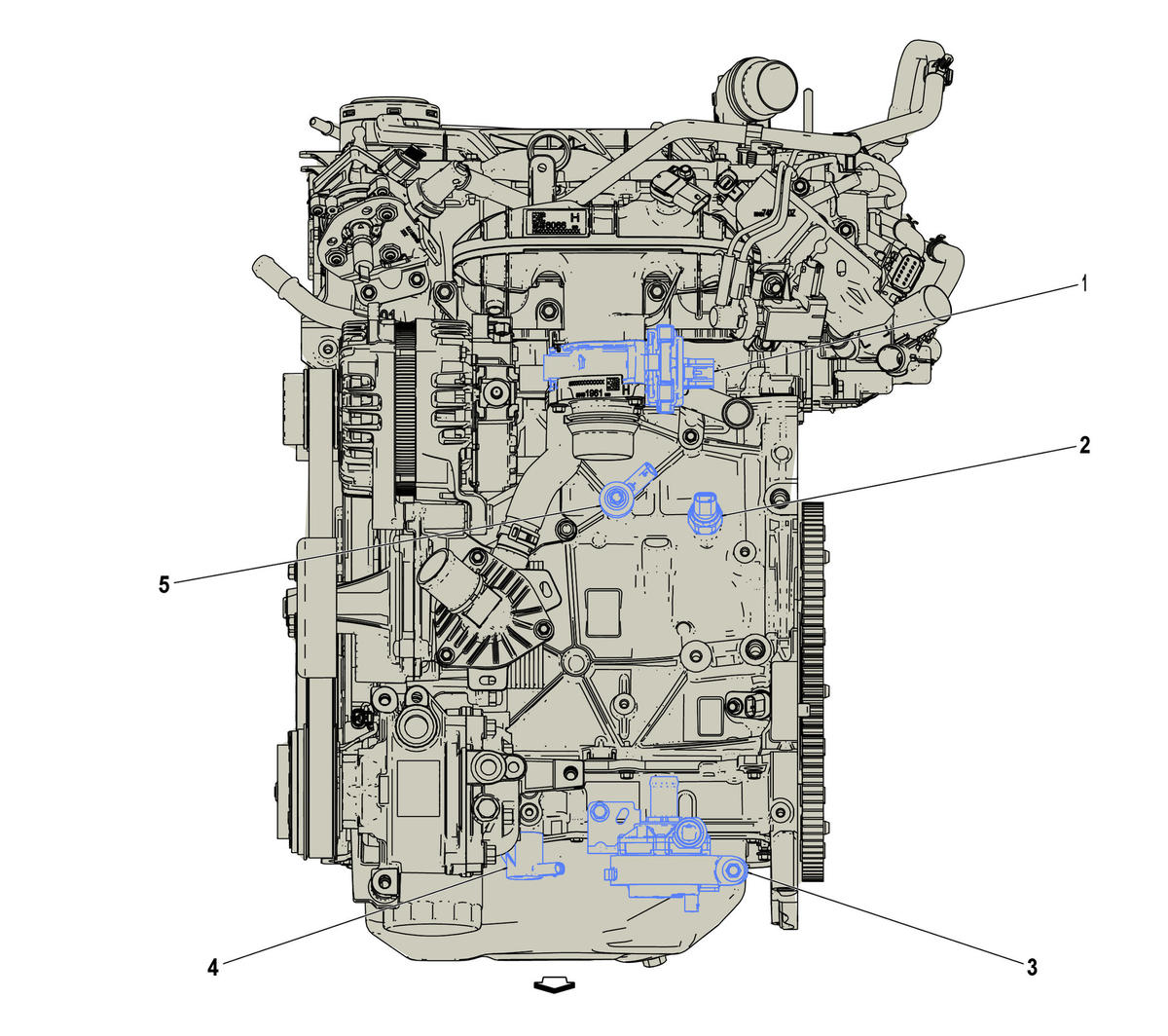

Engine - Left Components (LIH)
Engine - Left Components (LIH)
| Component Name | Callout |
|---|---|
| Q38 Throttle Body Q38 Throttle Body | 1 |
| B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor | 2 |
| G8 Coolant Pump - Auxiliary (LIH) G8 Coolant Pump - Auxiliary | 3 |
| Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (LIH) | 4 |
| B68A Knock Sensor 1 (L3T) B68A Knock Sensor 1 (L3T/L3Z) | 5 |
