Engine - Top Components (L3T/L3Z)

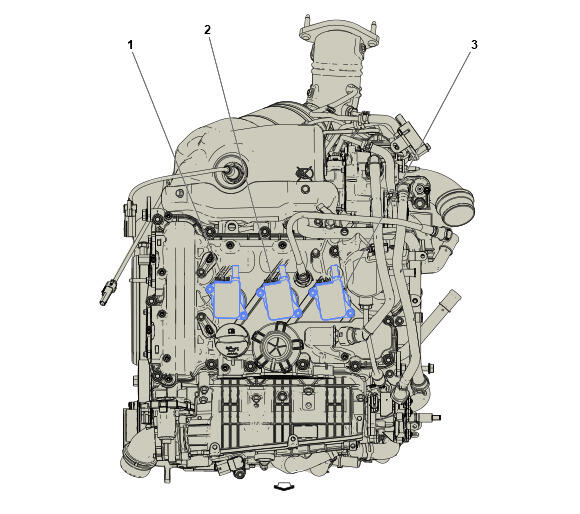

GM5437479Courtesy of GENERAL MOTORS COMPANY
Engine - Top Components (L3T/L3Z)

Component Name Callout
T8A Ignition Coil 1 T8A Ignition Coil 1 (L3T/L3Z) 1
T8B Ignition Coil 2 T8B Ignition Coil 2 (L3T/L3Z) 2
T8C Ignition Coil 3 T8C Ignition Coil 3 (L3T/L3Z) 3
