Communication Interface Module Replacement

Courtesy of GENERAL MOTORS COMPANY

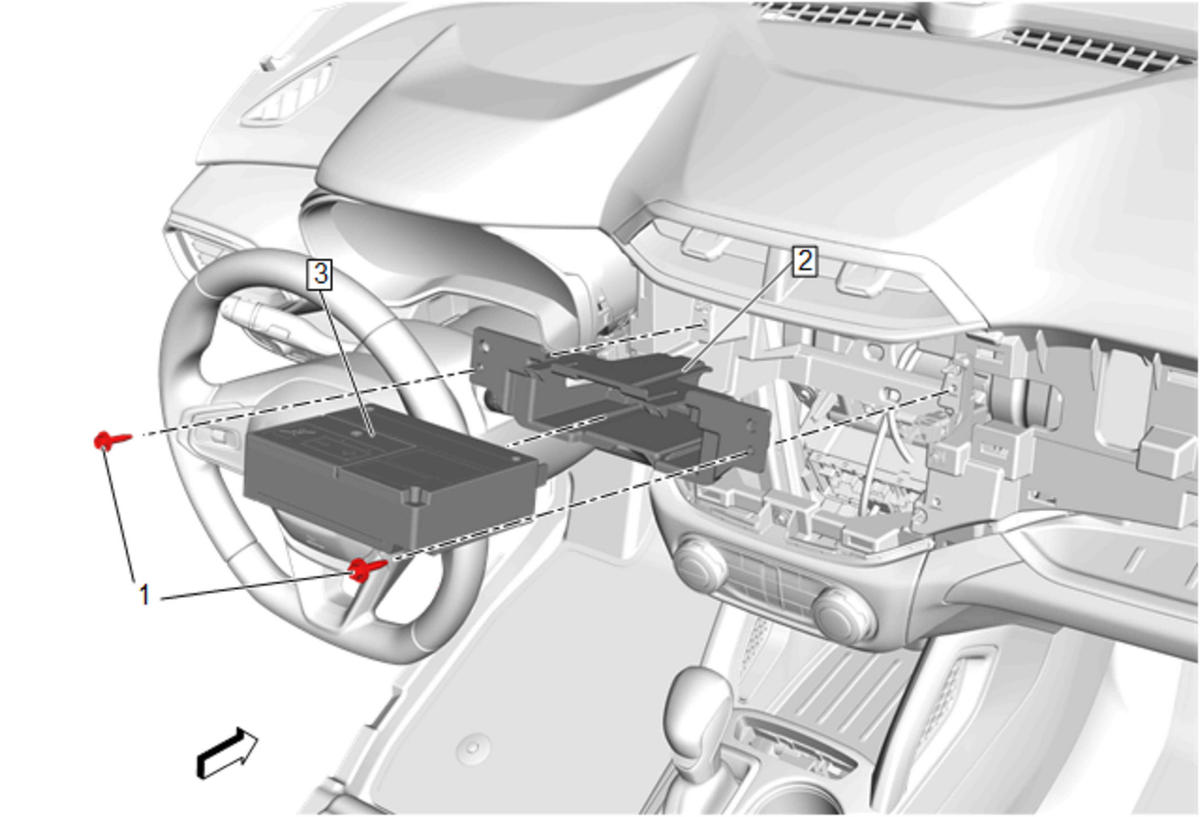

Callout	Component Name
Preliminary Procedure  Radio Control Assembly Replacement
1	Communication Interface Module Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Communication Interface Module Bracket Procedure  Disconnect all electrical connectors.
3	Communication Interface Module Procedure  If required, perform the programming and setup procedures. Control Module References
