Liftgate Side Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

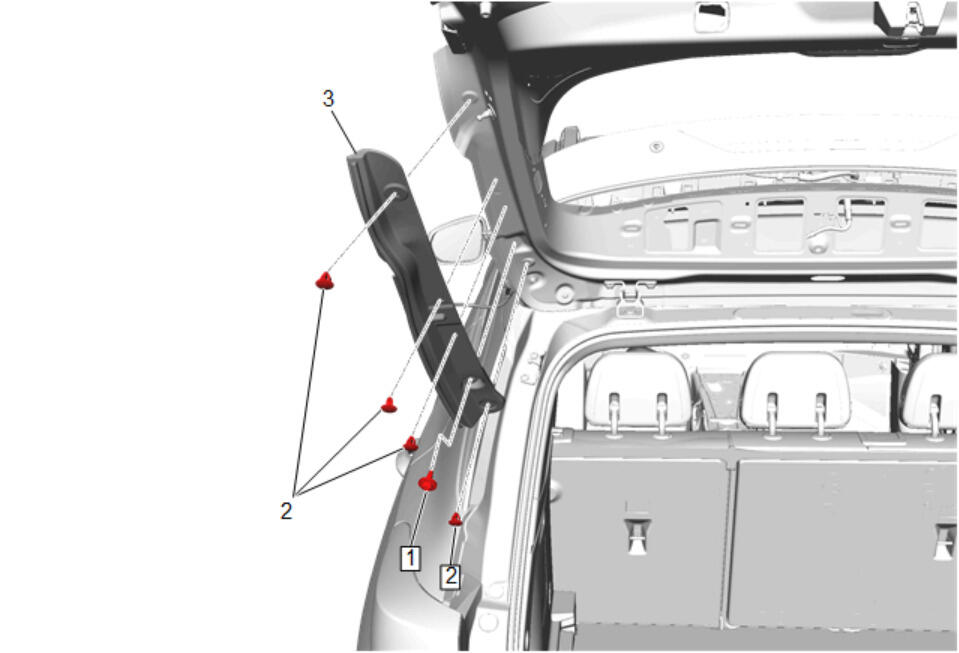

Callout	Component Name
Preliminary Procedure  Liftgate Upper Side Trim Finish Panel Replacement
1	Rear End Spoiler Bolt CAUTION: Fastener Caution Tighten  5 N.m (44 lb in)
2	Liftgate Side Sensor Retainer [4x]
3	Liftgate Side Sensor Procedure  Disconnect the electrical connector.
