Theft Deterrent Module Replacement

Courtesy of GENERAL MOTORS COMPANY

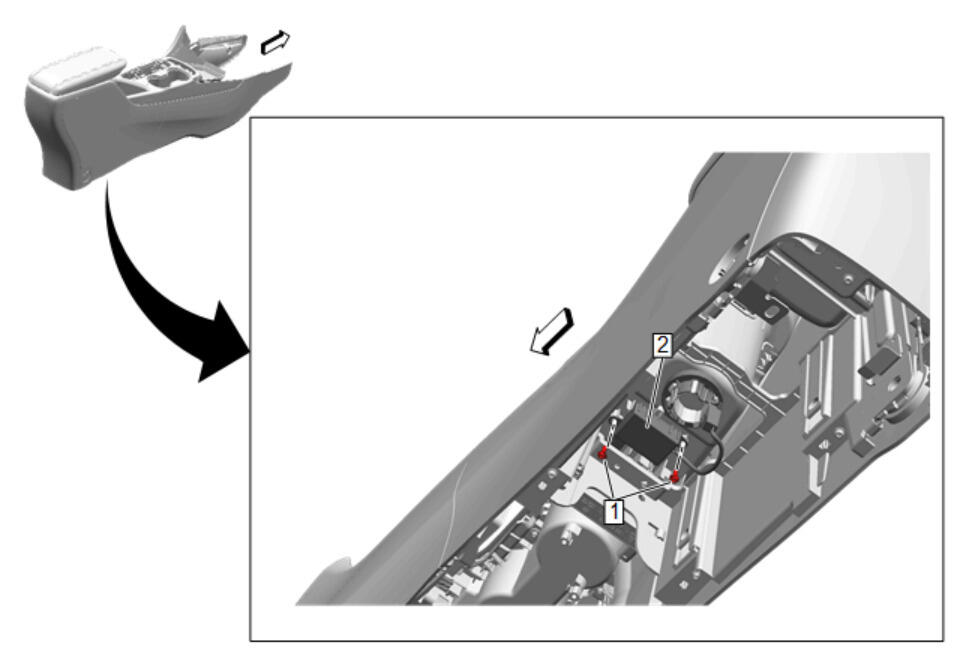

Callout	Component Name
Preliminary Procedures Front Floor Console Replacement {If equipped} Accessory AC and DC Power Control Module Replacement
1	Theft Deterrent Module Bolt [2x] CAUTION: Fastener Caution Tighten 1.5 N.m (13 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: K89 Immobilizer Control Module: Programming and Setup

Callout

Component Name

Preliminary Procedures

Theft Deterrent Module Bolt [2x]

CAUTION:

Tighten
1.5 N.m (13 lb in)

Theft Deterrent Module

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: K89 Immobilizer Control Module: Programming and Setup
