Installation Procedure

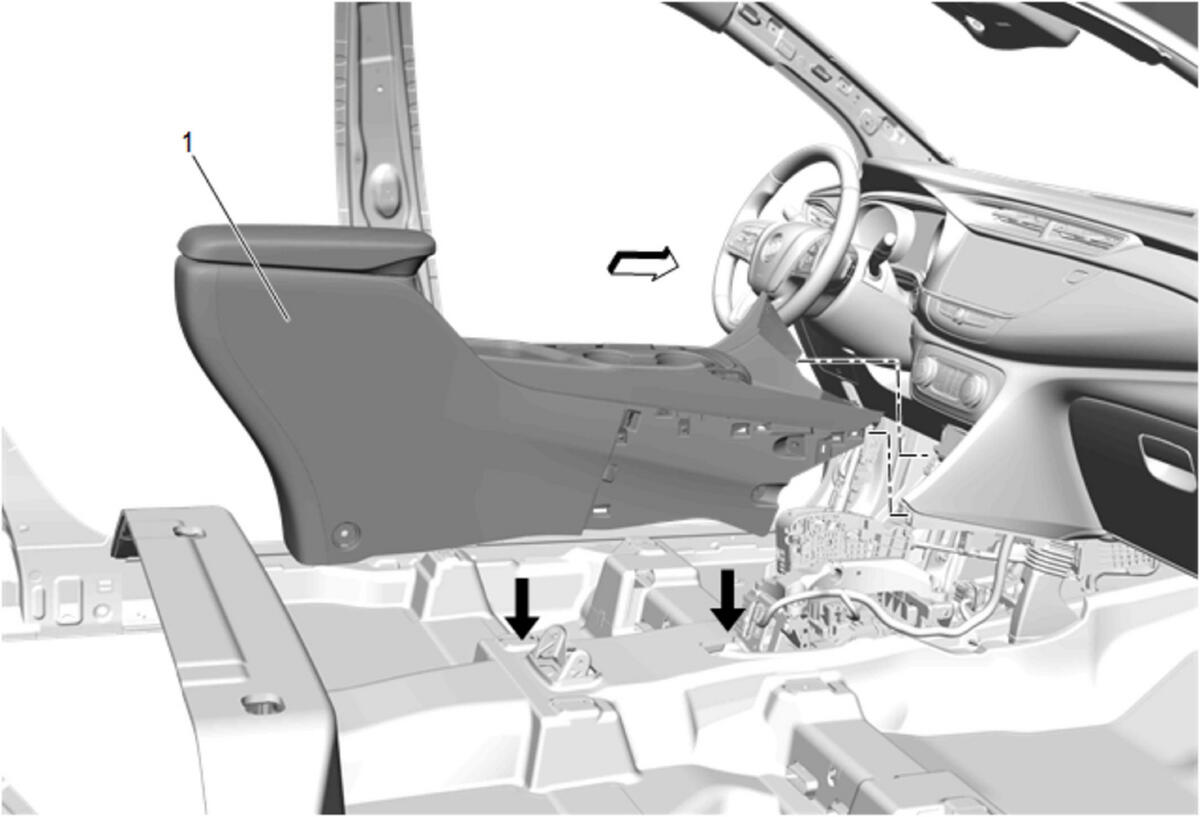

  1. GM5165361Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install

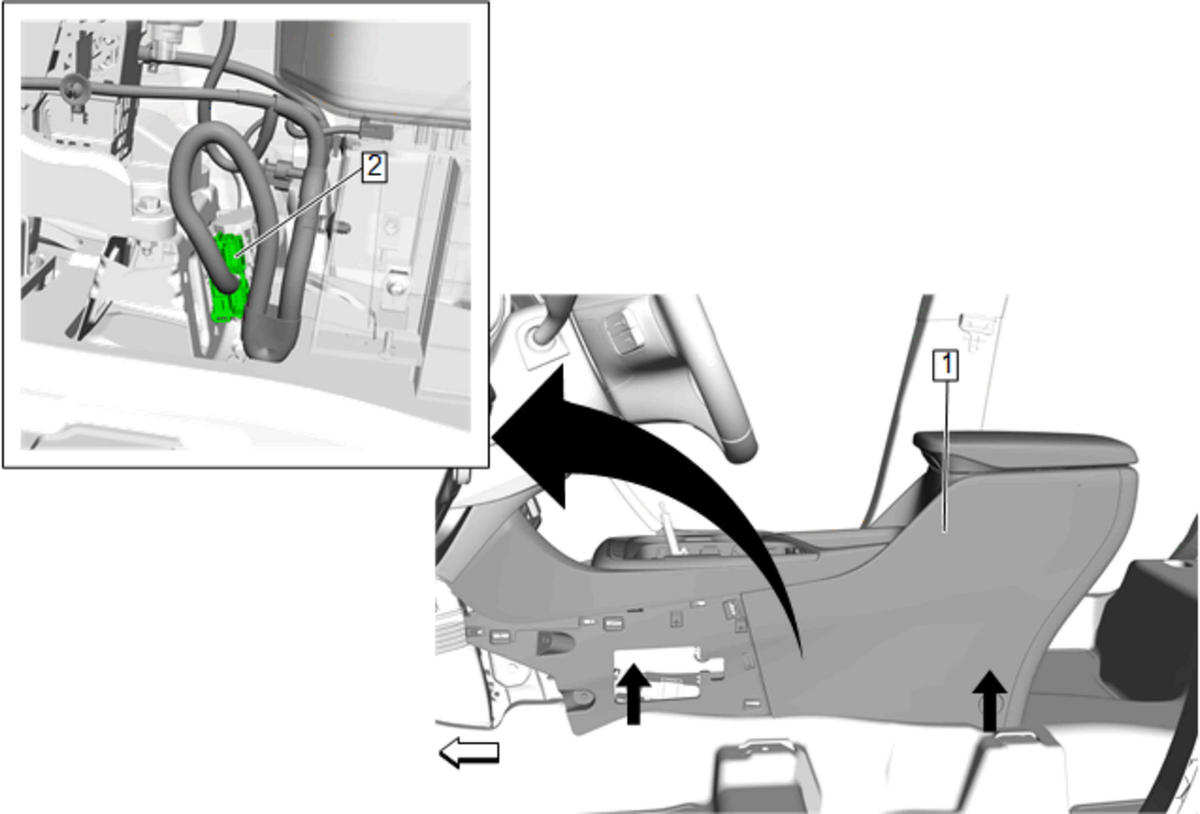

  2. GM5165359Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    To access the electrical connector, lift up the front floor console in the direction of the arrow.

    Connect the electrical connector.

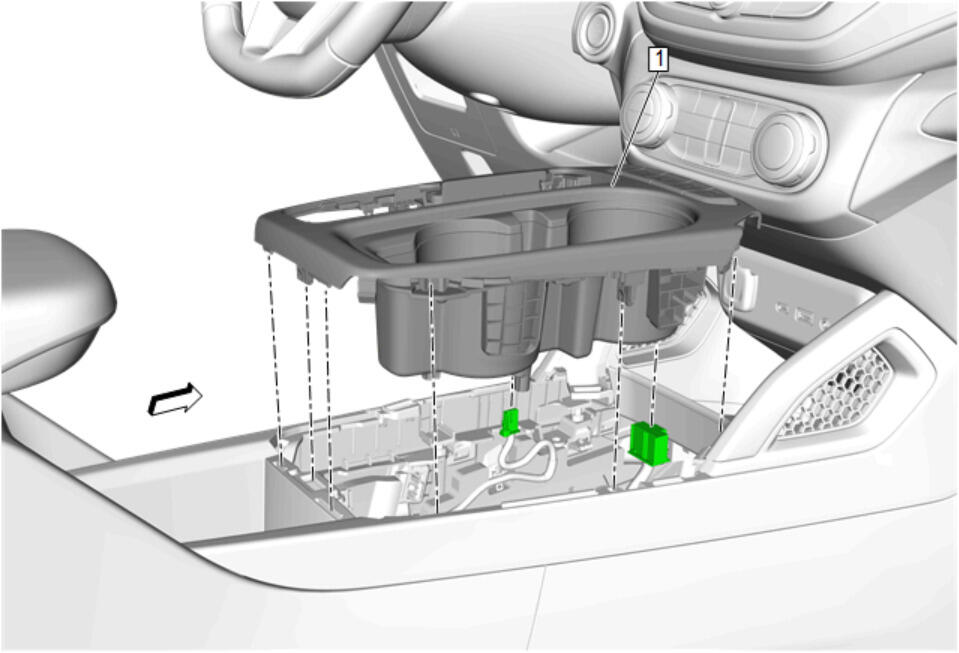

  3. GM5319632Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Accessory Switch Mount Plate (1) - Install - Front Floor Console Accessory Switch Mount Plate Replacement

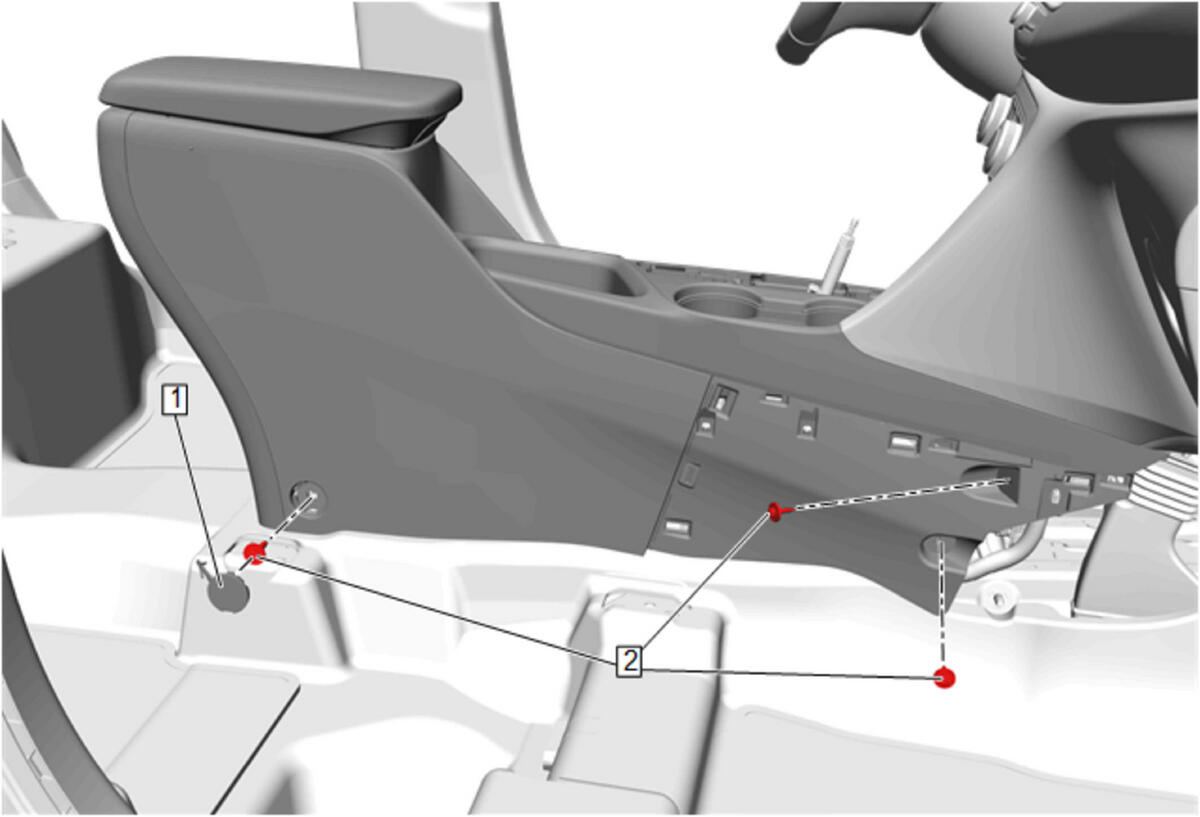

  4. GM5165358Courtesy of GENERAL MOTORS COMPANY

    Front Floor Lower Console Bolt (2) - Install and tighten [3x] 2.5 N.m (22 lb in)

  5. Front Floor Console Bolt Access Hole Cover (1) - Install

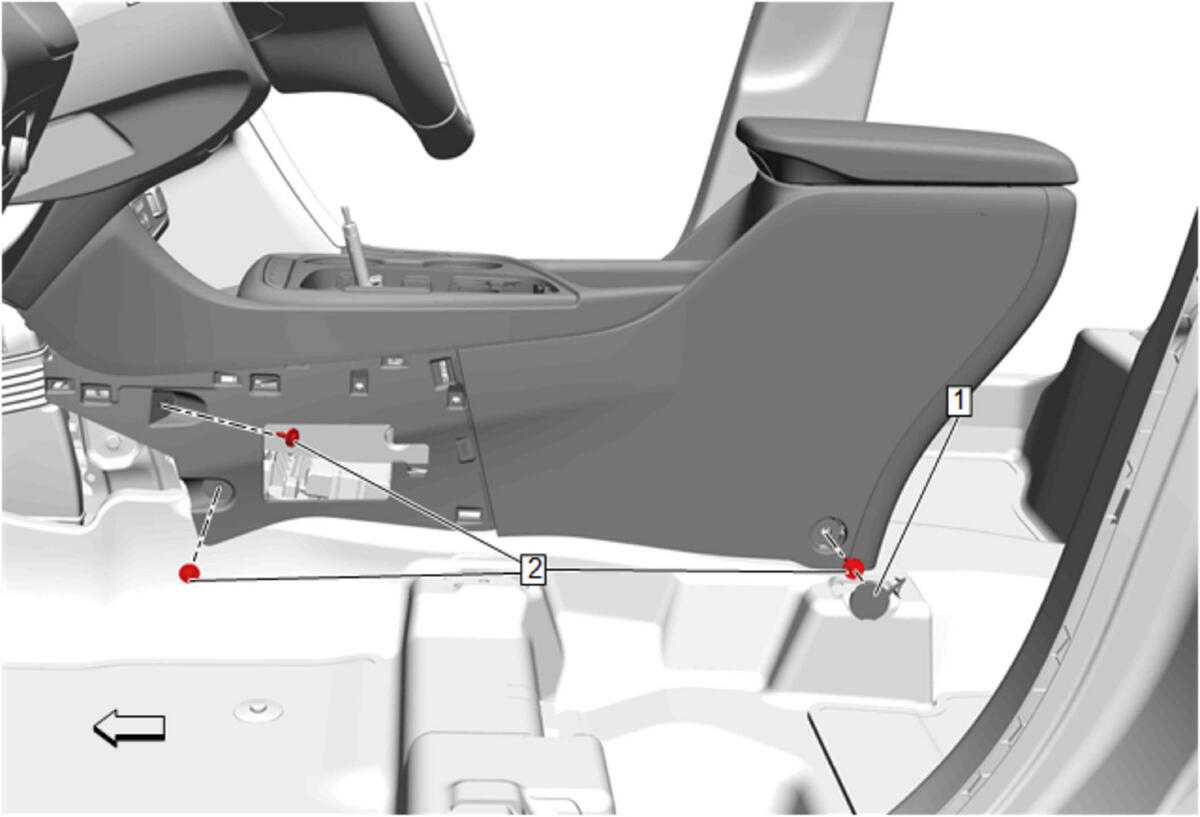

  6. GM5165357Courtesy of GENERAL MOTORS COMPANY

    Front Floor Lower Console Bolt (2) - Install and tighten [3x] 2.5 N.m (22 lb in)

  7. Front Floor Console Bolt Access Hole Cover (1) - Install

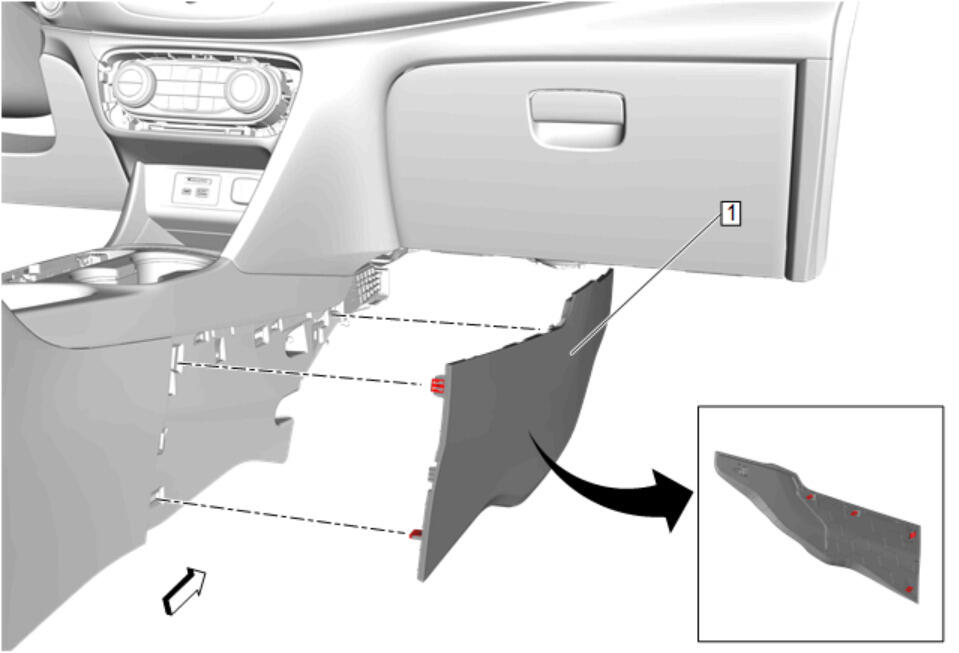

  8. GM5164760Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel-Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side

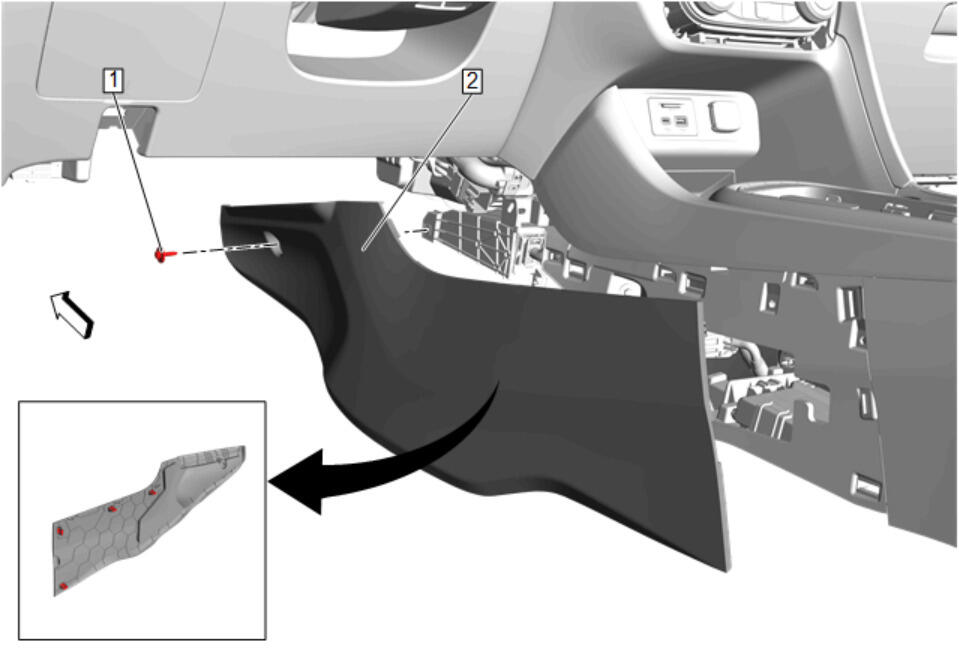

  9. GM5164759Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel-Left Side (2) - Install - Front Floor Console Extension Panel Replacement - Left Side

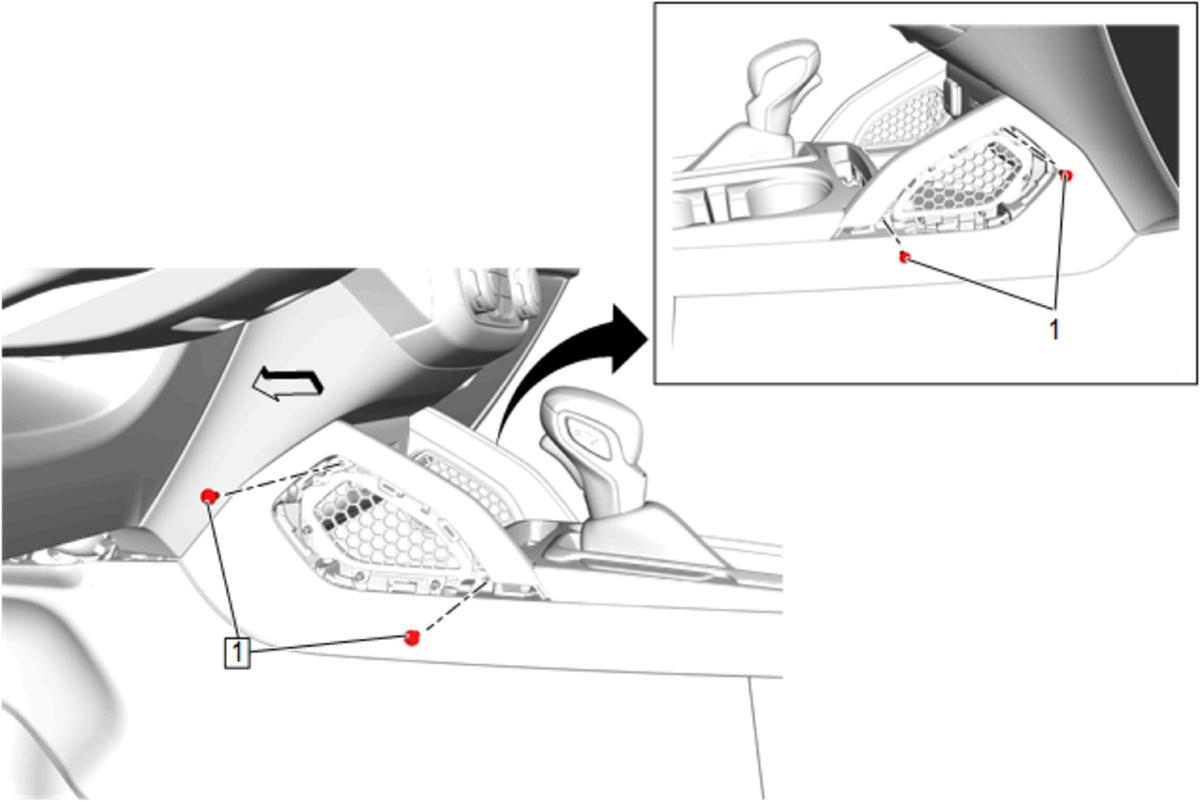

  10. GM5313678Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate Fastener - (1) - Install and tighten [4x] 1.1 N.m (10 lb in)

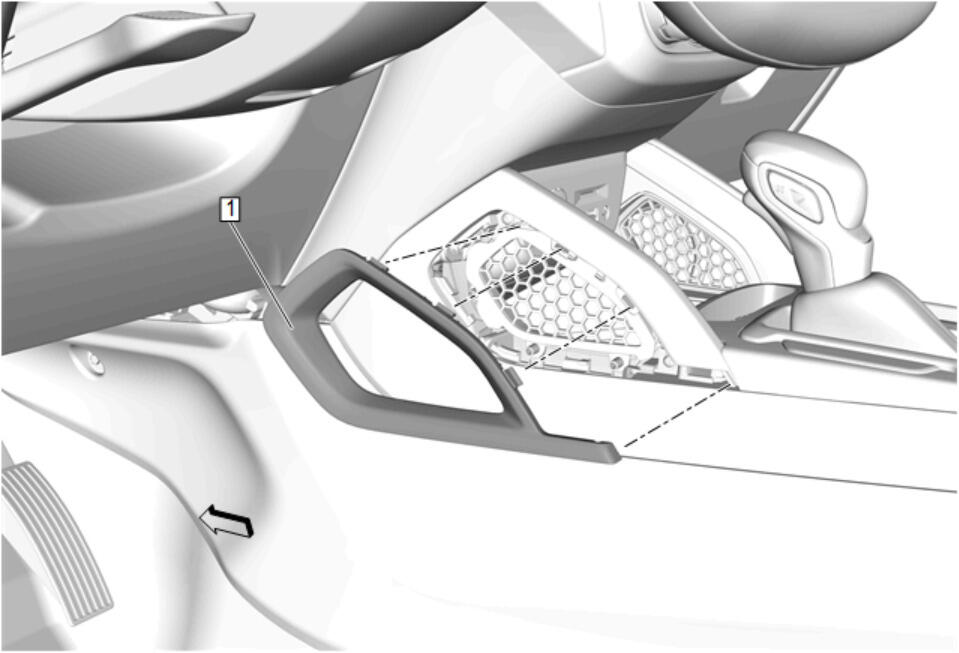

  11. GM5313661Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique-Both Sides (1) - Install - Front Floor Console Applique Replacement  [2x]
