Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Shroud (1) - Install

Courtesy of GENERAL MOTORS COMPANY

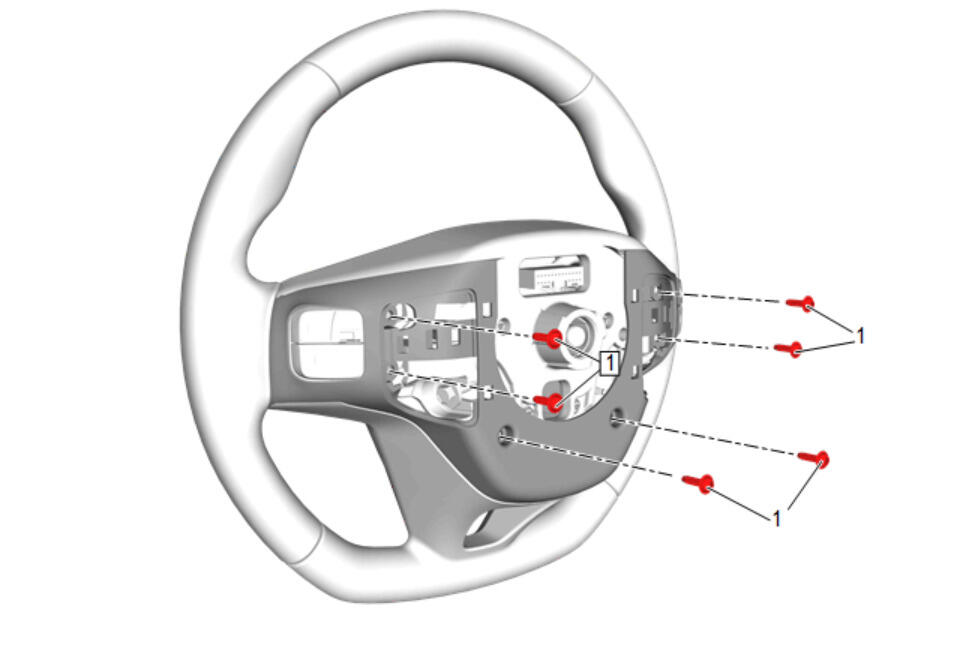

Install the 6 steering wheel screws (1) and tighten to 3.5 N.m (31 lb in).

Courtesy of GENERAL MOTORS COMPANY

Install the steering wheel. (1) - Install - Steering Wheel Replacement

Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Airbag (2) - Install - Steering Wheel Airbag Replacement

Courtesy of GENERAL MOTORS COMPANY

Install the 2 steering wheel airbag access hole covers (1). Steering Wheel Airbag Access Hole Cover Replacement
