Transfer Case Adapter Replacement

Courtesy of GENERAL MOTORS COMPANY

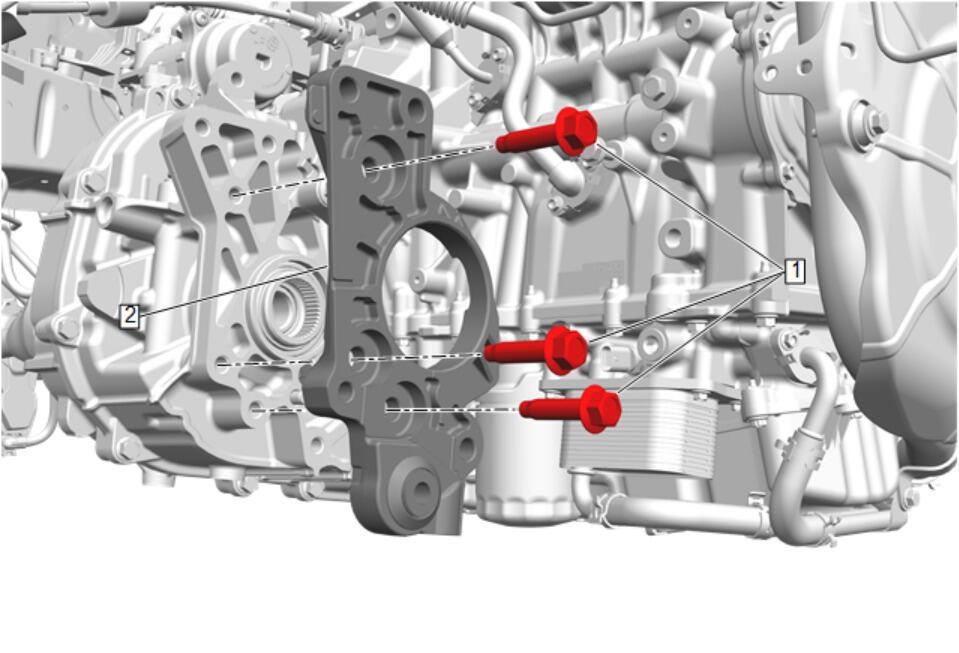

Callout	Component Name
Preliminary Procedure  Power Transfer Unit Case Replacement
1	Power Transfer Unit Adapter Bolt [3x] CAUTION: Fastener Caution Tighten  100 N.m (74 lb ft)
2	Power Transfer Unit Adapter
