Forward Collision Alert Display Replacement

Courtesy of GENERAL MOTORS COMPANY

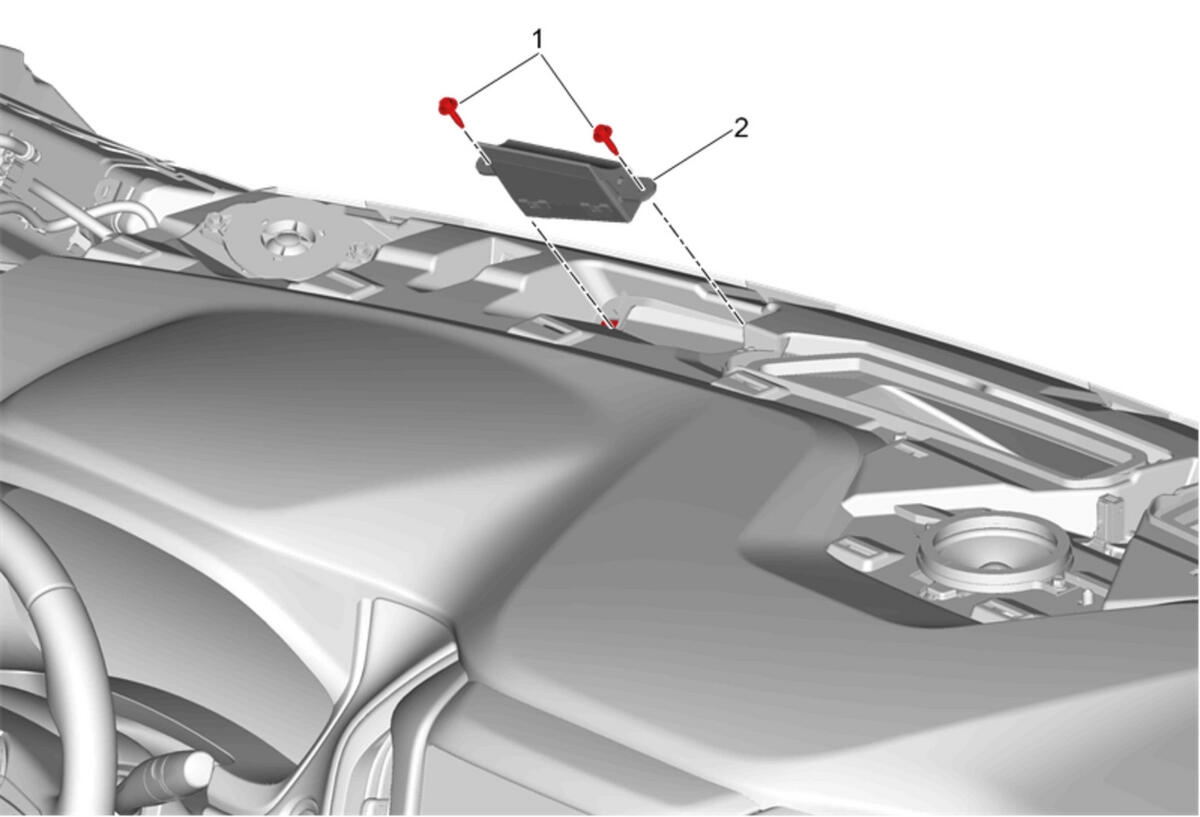

Callout	Component Name
Preliminary Procedure  Instrument Panel Extension Replacement
1	Forward Collision Alert Display Bolt [2x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Forward Collision Alert Display Procedure  Disconnect the electrical connector.
