Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

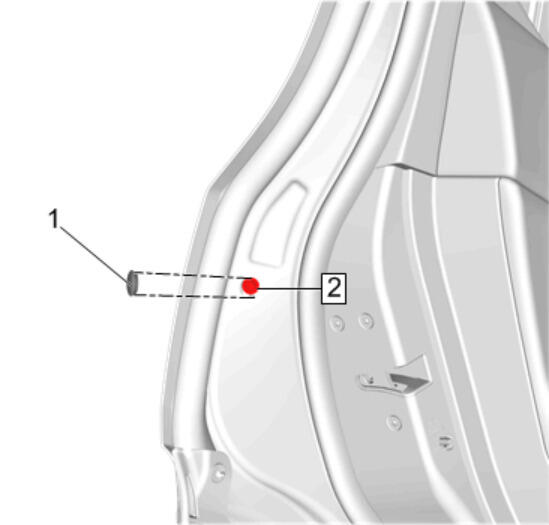

Rear Side Door Access Hole Cover (1) - Remove

NOTE:

USE HAND TOOL ONLY. Using a battery operated gun or power tool can BREAK the component.
Around 10 to 12 rotations is enough to allow the Front Side Door Outside Handle Lock Cylinder to be removed.

Rear Side Door Outside Handle Lock Cylinder Screw (2) - Loosen
Courtesy of GENERAL MOTORS COMPANY

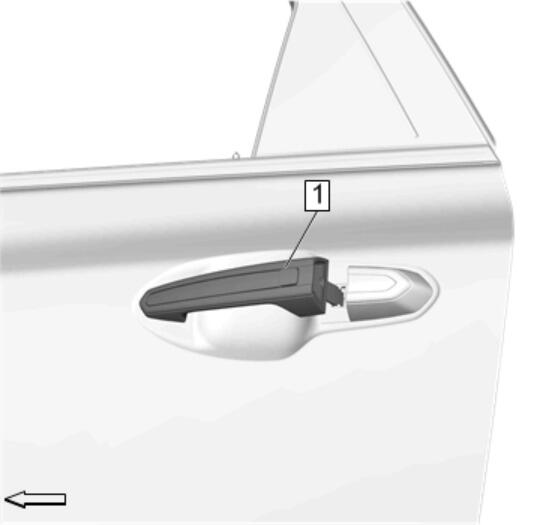

Pull the rear side door outside handle (1) out to the open position.
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Lock Cylinder Opening Cover (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using the appropriate tool, remove the rear side door lock cylinder opening cover (1) from the lock cylinder insulator.(2)
