Home › Chevrolet › 2021 › Traverse L › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

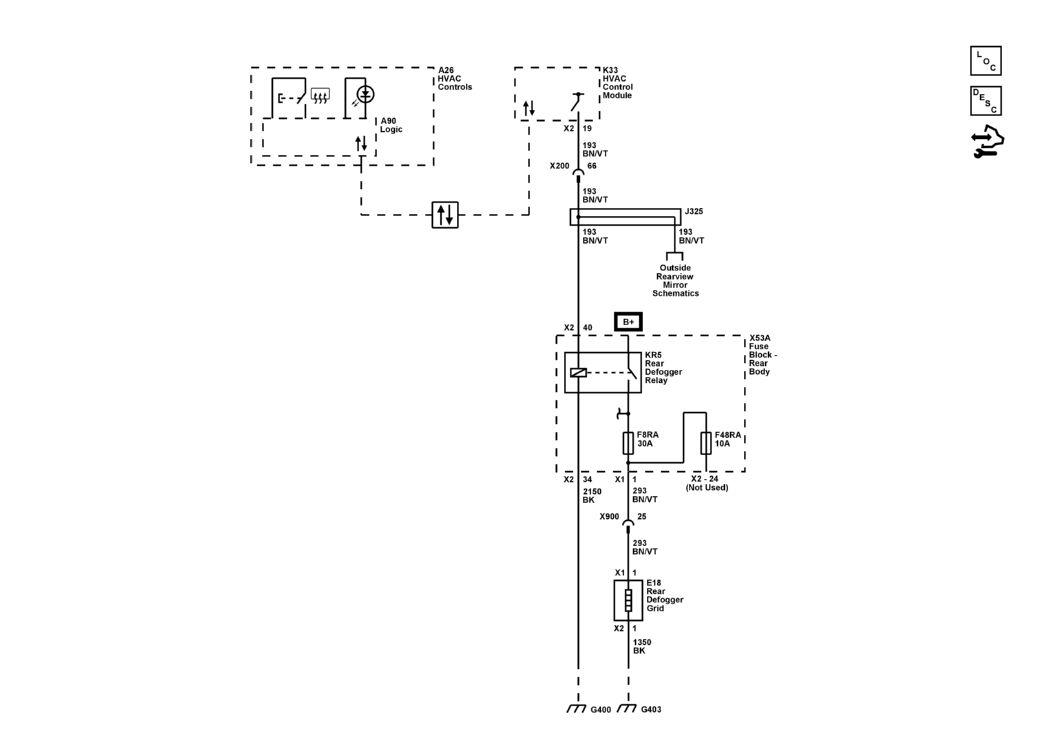

Defogger Wiring Schematics: Defogger

GM5699376Courtesy of GENERAL MOTORS COMPANY
