Outside Rearview Mirror Actuator Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Outside Rearview Mirror Glass Replacement |
|

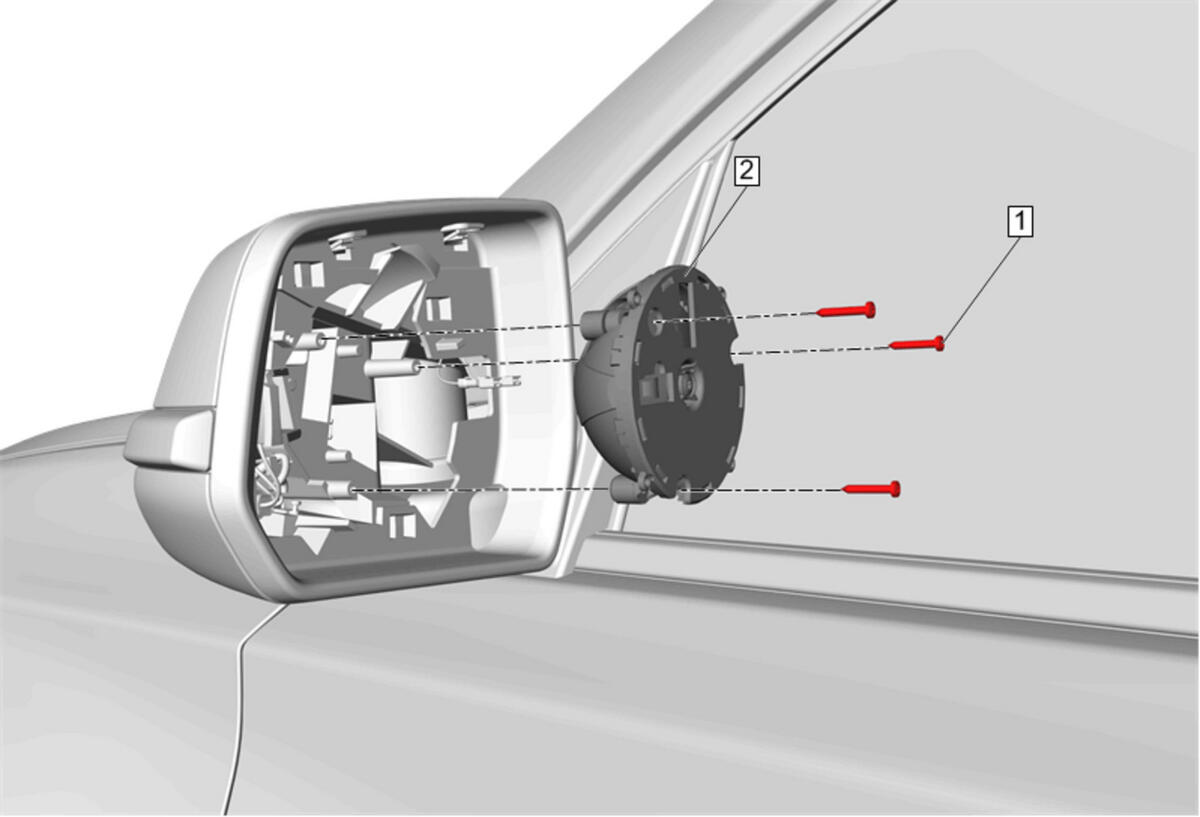

| 1 | Outside Rearview Mirror Inner Actuator Fastener[ 3x ]
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Outside Rearview Mirror Inner Actuator Procedure Disconnect the electrical connector.
NOTE:
Inspect the outside rearview mirror for proper operation before installing the door trim. |
