Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

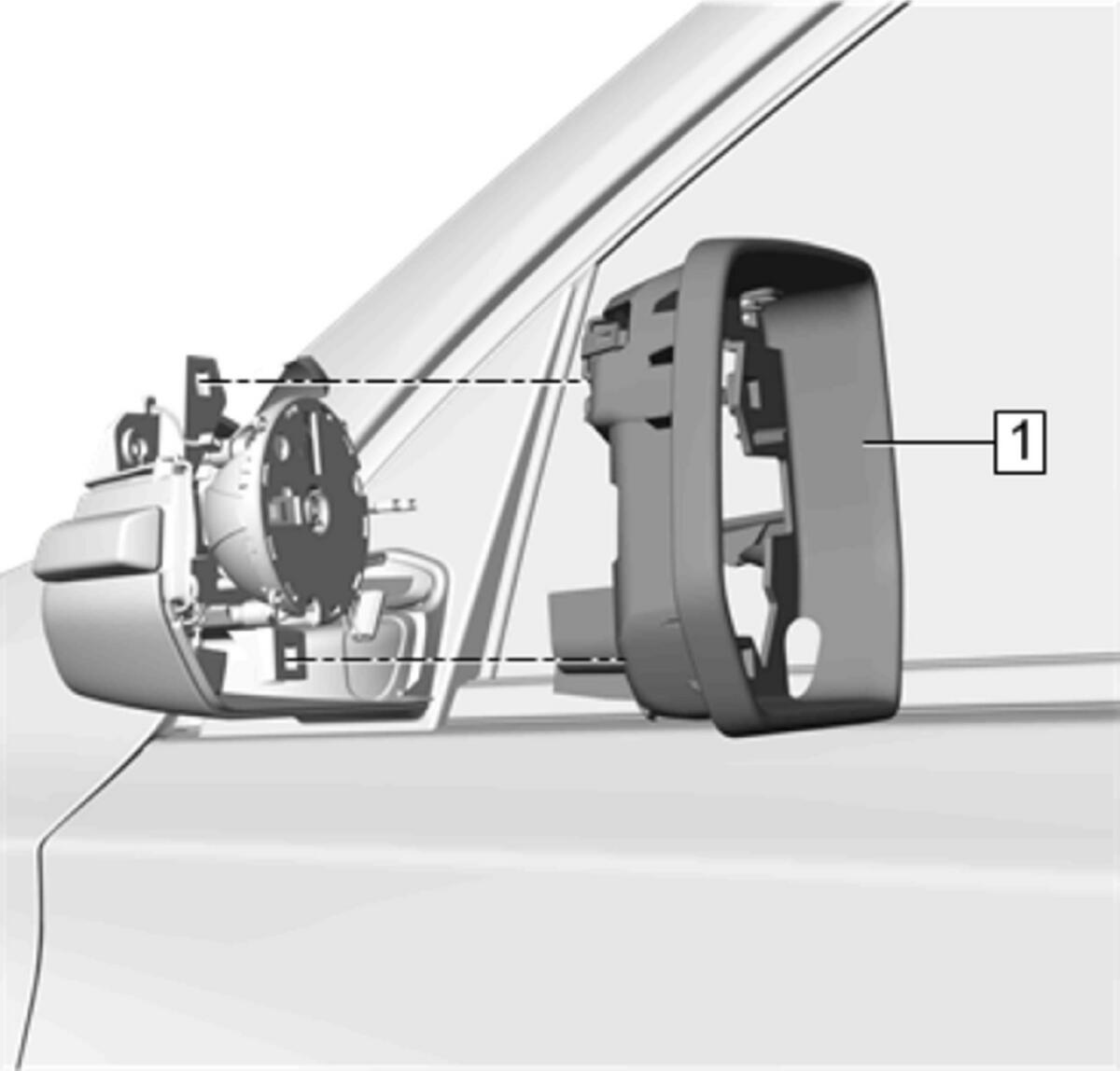

Push the outside rearview mirror housing bezel (1) into the retaining clips until seated.
Connect harness to bezel (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

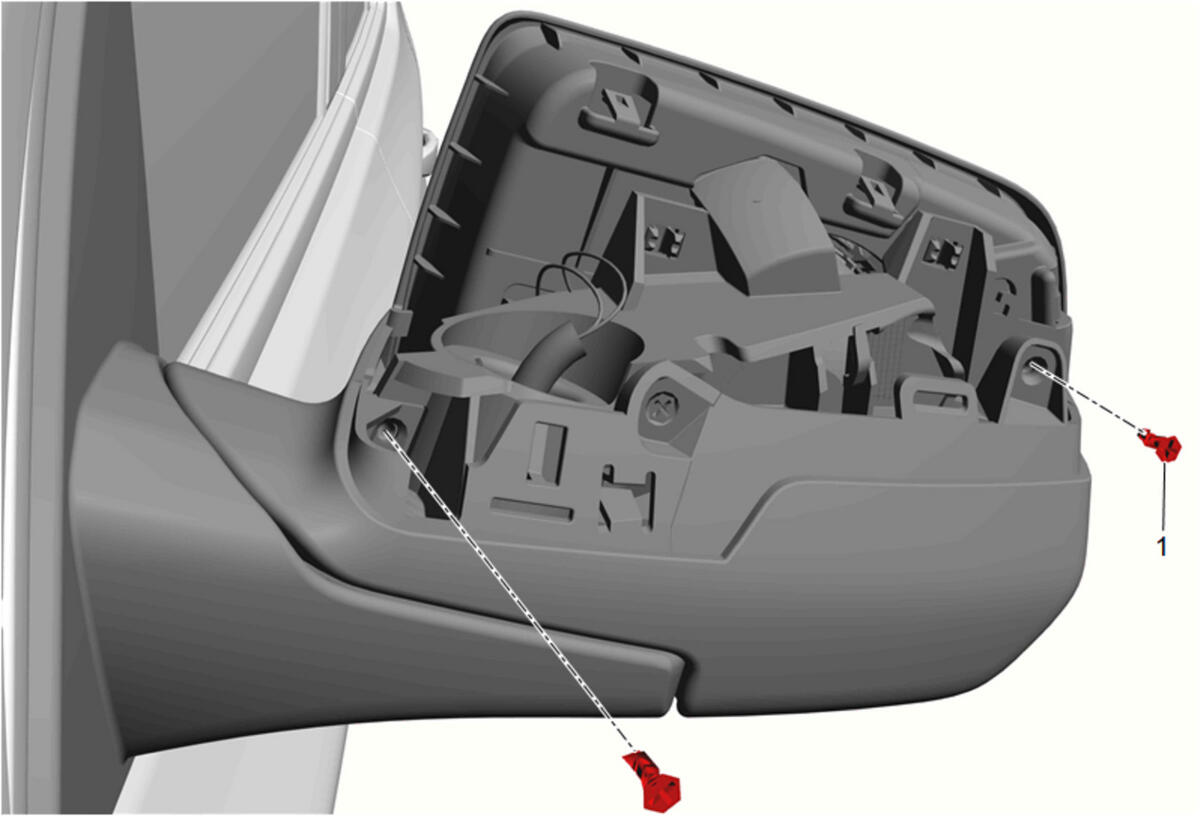

Outside rearview mirror housing bezel screw (1) - Install and tighten [ 2x ] 2 N.m (18 lb in)
Courtesy of GENERAL MOTORS COMPANY

Outside Rearview Mirror Upper Housing Cover (1) - Install - Outside Rearview Mirror Housing Upper Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Inspect the outside rearview mirror for proper operation.

Outside Rearview Mirror Glass (1) - Install - Outside Rearview Mirror Glass Replacement
