Power Distributor Fuse Block Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

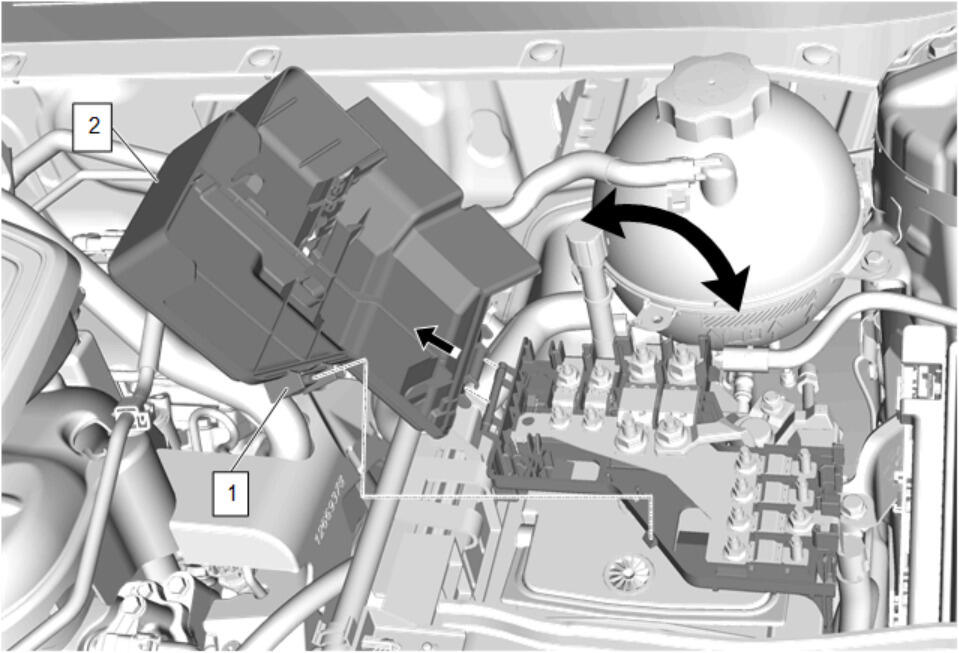

Callout	Component Name
1	Retaining Tab
2	Power Distributor Fuse Block Cover Procedure Disengage the retaining tab (1) and swing open the power distributor fuse block cover. Disengage the power distributor fuse block cover (2) from the power distribution fuse block.

Callout

Component Name

Retaining Tab

Power Distributor Fuse Block Cover

Procedure

Disengage the retaining tab (1) and swing open the power distributor fuse block cover.
Disengage the power distributor fuse block cover (2) from the power distribution fuse block.
